Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (
5
Figure 3-13 ).

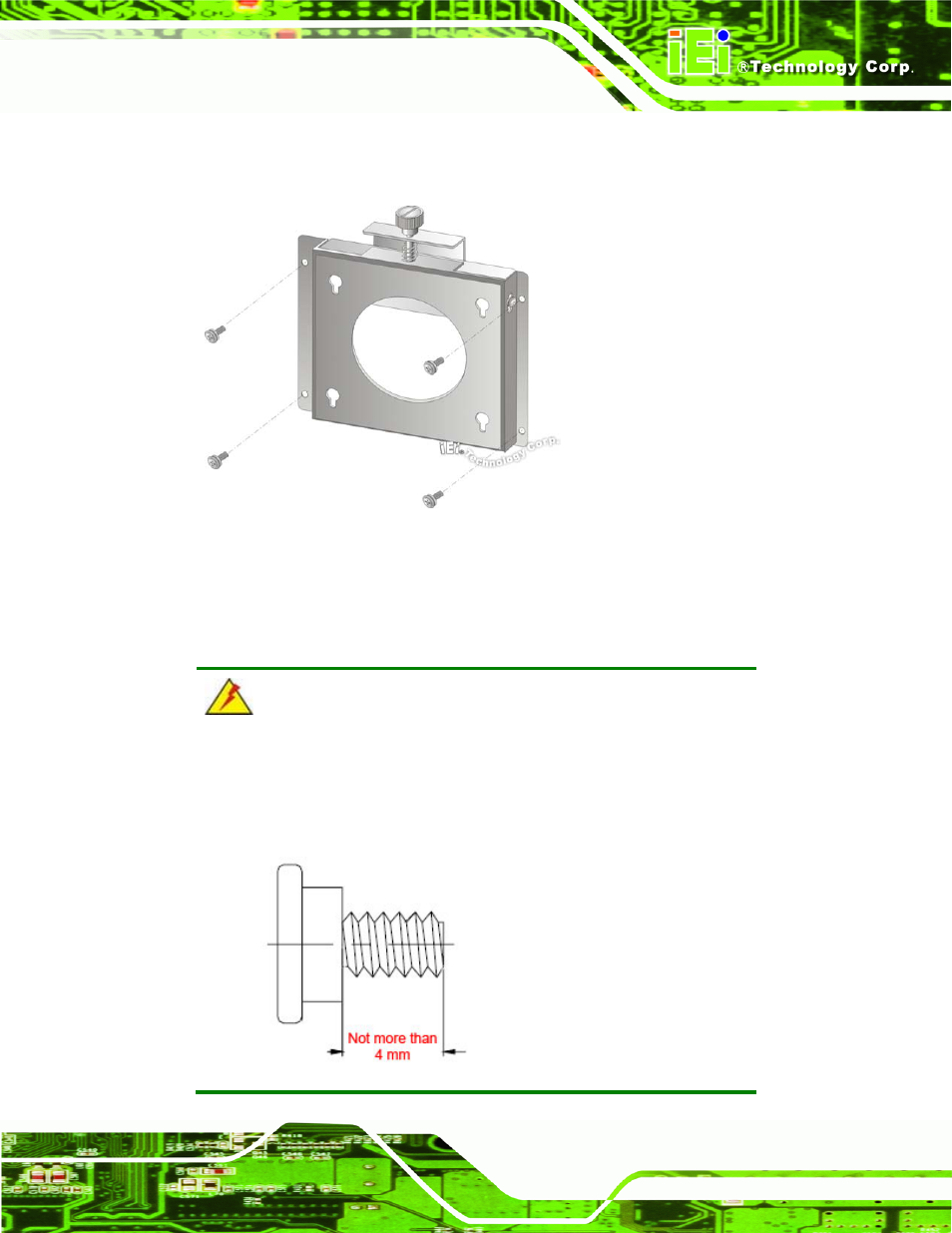

Figure 3-13: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws provided in the wall mount kit into the
four screw holes on the real panel and tighten until the screw shank is secured
against the rear panel (
5
Figure 3-14 ).
WARNING:
Please use the M4 screws provided in the wall mount kit for the rear
panel. If the screw is missing, the thread depth of the replacement
screw should be not more than 4 mm.
