AFL-F08A-N270 Panel PC
Page 5
1.5 I/O Interface Panel
The I/O interface panel located on the bottom of the AFL-F08A-N270 has the following I/O
interface connectors:
ƒ 1 x Audio connector
ƒ 1 x 12 V DC In connector
ƒ 1 x External SATA connector
ƒ 1 x RS-232 connector
ƒ 1 x RS-232/422/485 connector
ƒ 2 x LAN connectors
ƒ 2 x USB 2.0 connectors
ƒ 1 x Power switch
ƒ 1 x Reset button
The external I/O interface connector panel is shown in
5
Figure 1-4 .

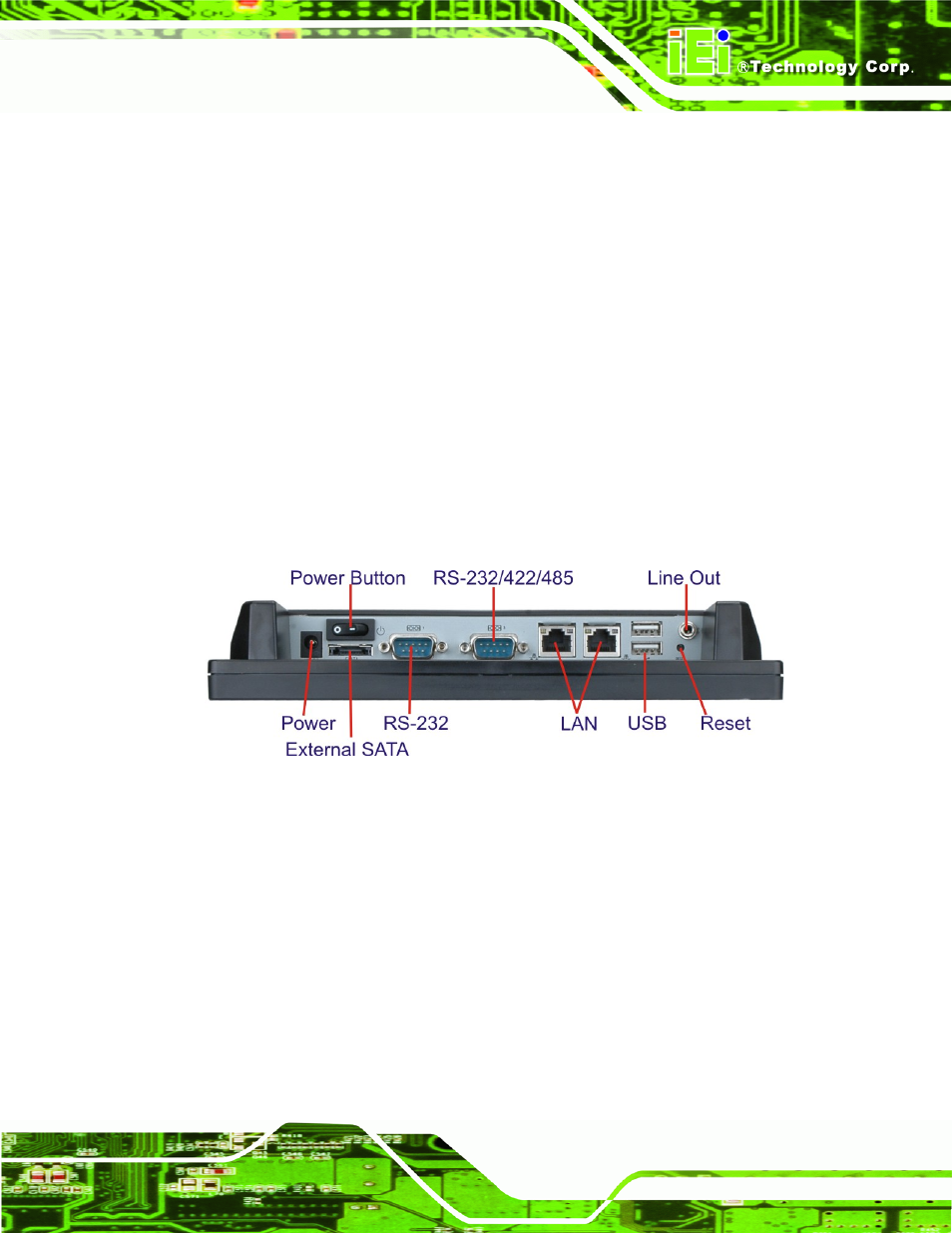

Figure 1-4: AFL-F08A-N270 I/O Interface Connector Panel
1.6 Internal Overview
The AFL-F08A-N270 has the following components installed internally:
ƒ 1 x Motherboard
ƒ 1 x 1.0 GB 533 MHz DDR2 SDRAM SO-DIMM
ƒ 1 x Wireless module
1.7 System Specifications
The technical specifications for the AFL-F08A-N270 systems are listed in
5
Table 1-2.
