AFL-F08A-N270 Panel PC

Page 39

Step 2:

Align the connectors.

Align the USB device connector with one of the

connectors on the bottom panel.

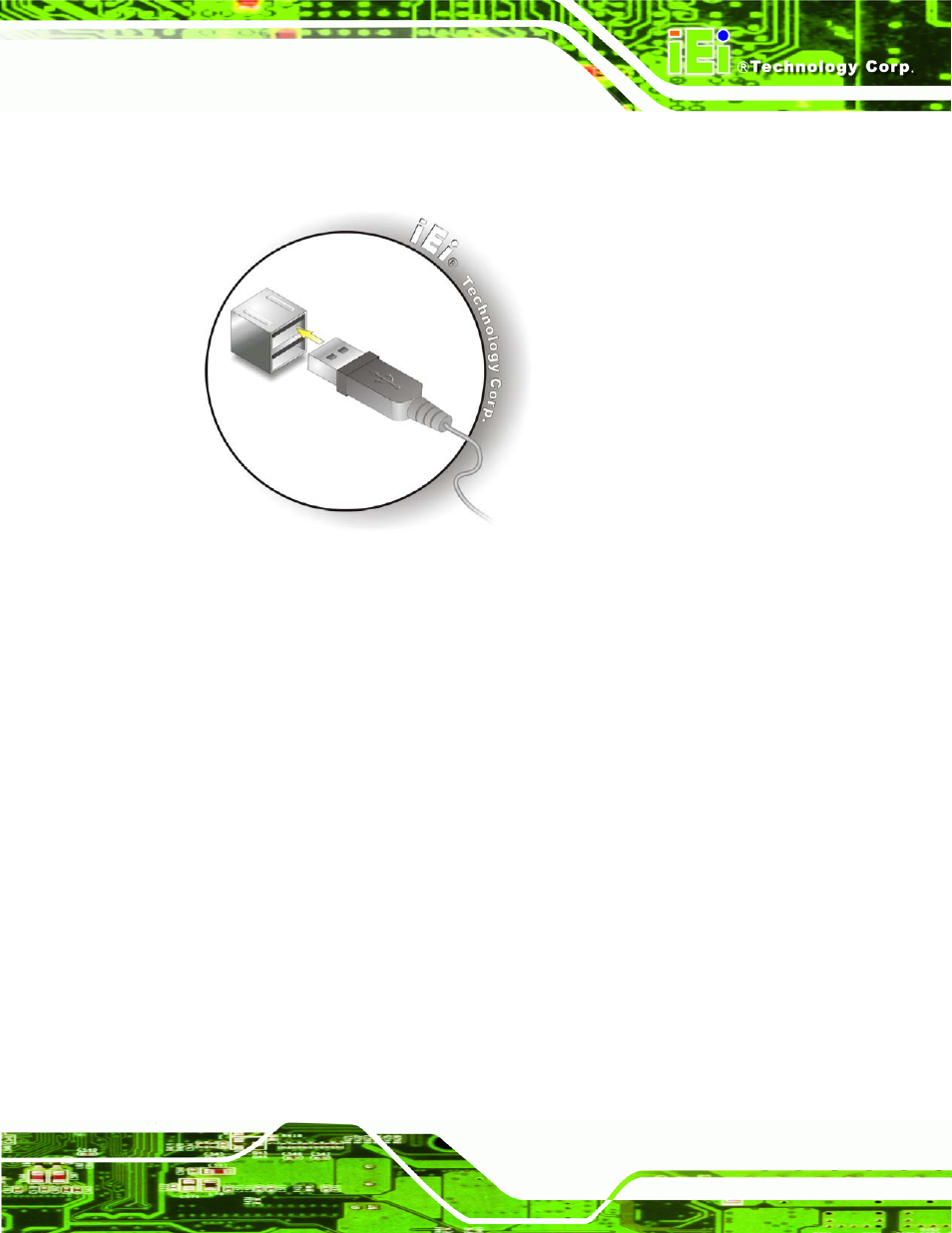

Figure 3-23: USB Device Connection

Step 3:

Insert the device connector.

Once aligned, gently insert the USB device

connector into the onboard connector.
