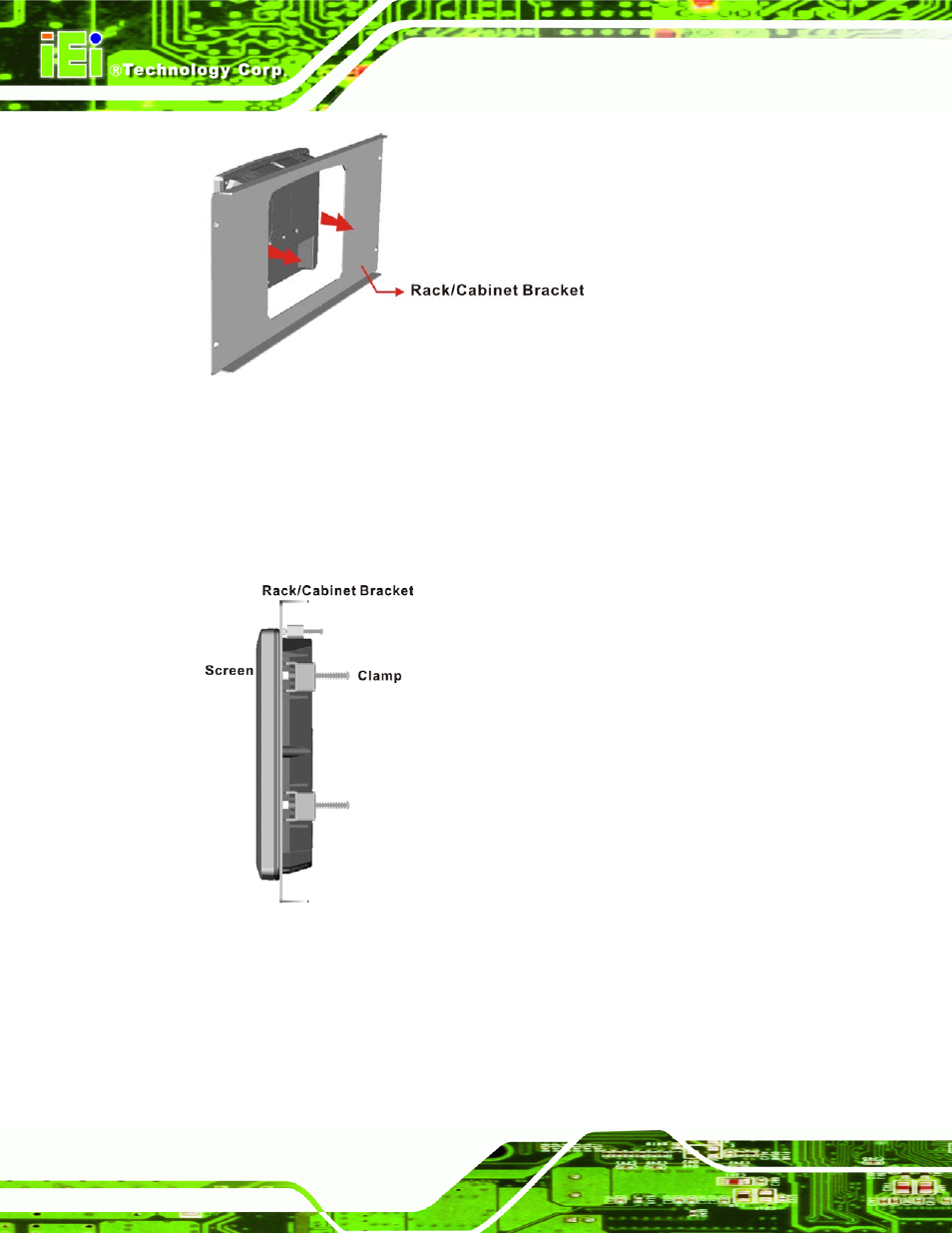

Figure 3-18: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the flat panel PC, behind the ABS/PC plastic frame.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket (
5
Figure 3-19 ).
Figure 3-19: Secure the Rack/Cabinet Bracket
Step 4: Slide the AFL-F08A-N270 with the attached rack/cabinet bracket into a rack or
cabinet (
5
Figure 3-20 ).
