AFL-F08A-N270 Panel PC

Page 43

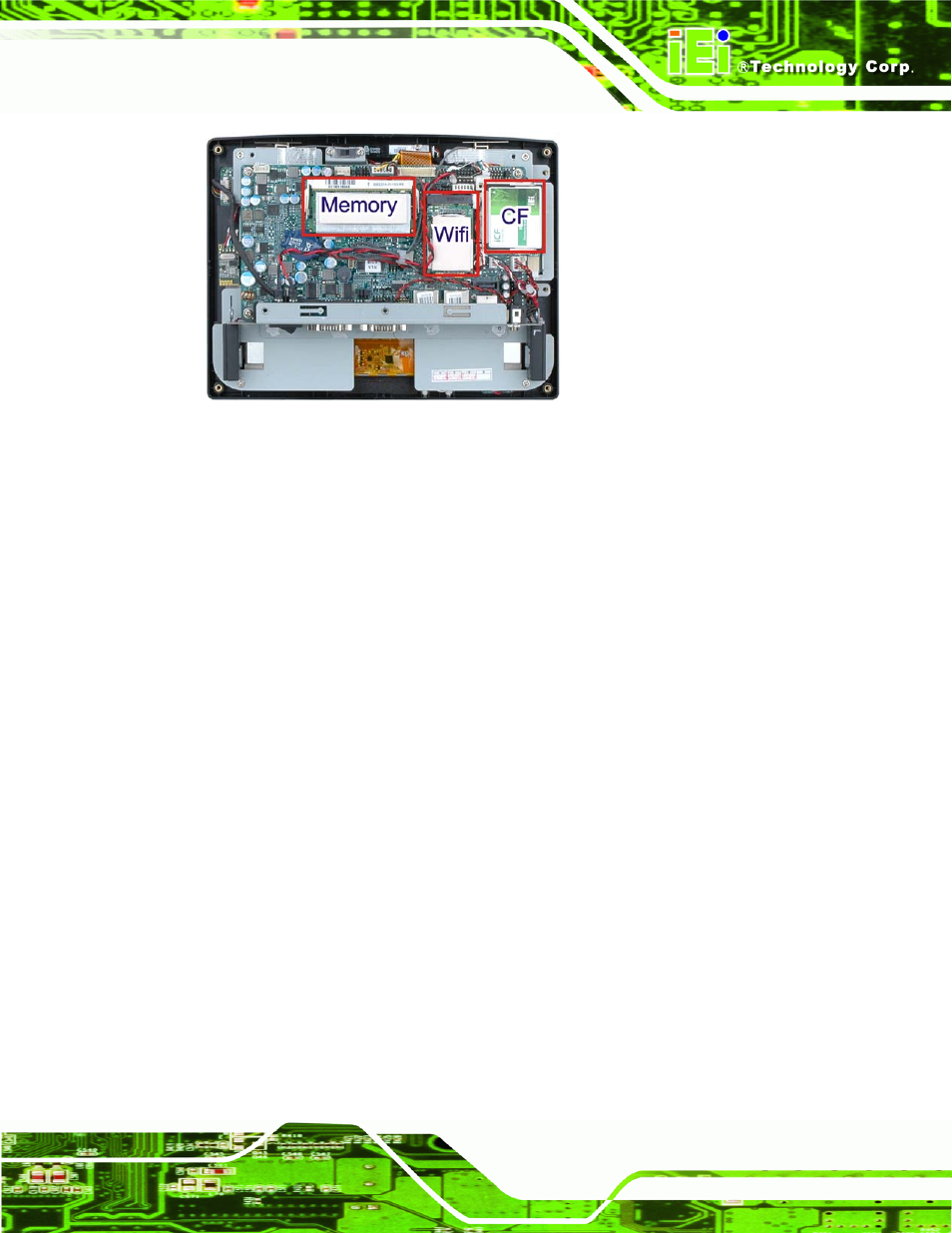

Figure 4-1: AFL-F08A-N270 SO-DIMM Socket Location

Step 2:

Remove the DDR memory module by pulling both the spring retainer clips

outward from the socket.

Step 3:

Grasp the DDR memory module by the edges and carefully pull it out of the

socket.

Step 4:

Install the new DDR memory module by pushing it into the socket at an angle

(

5

Figure 4-2

).

Step 5:

Gently pull the spring retainer clips of the SO-DIMM socket out and push the

rear of the DDR memory module down (

5

Figure 4-2

).

Step 6:

Release the spring retainer clips on the SO-DIMM socket. They clip into place

and secure the DDR memory module in the socket.

Step 0:
