AFL-HM55 Series Panel PC

Page 41

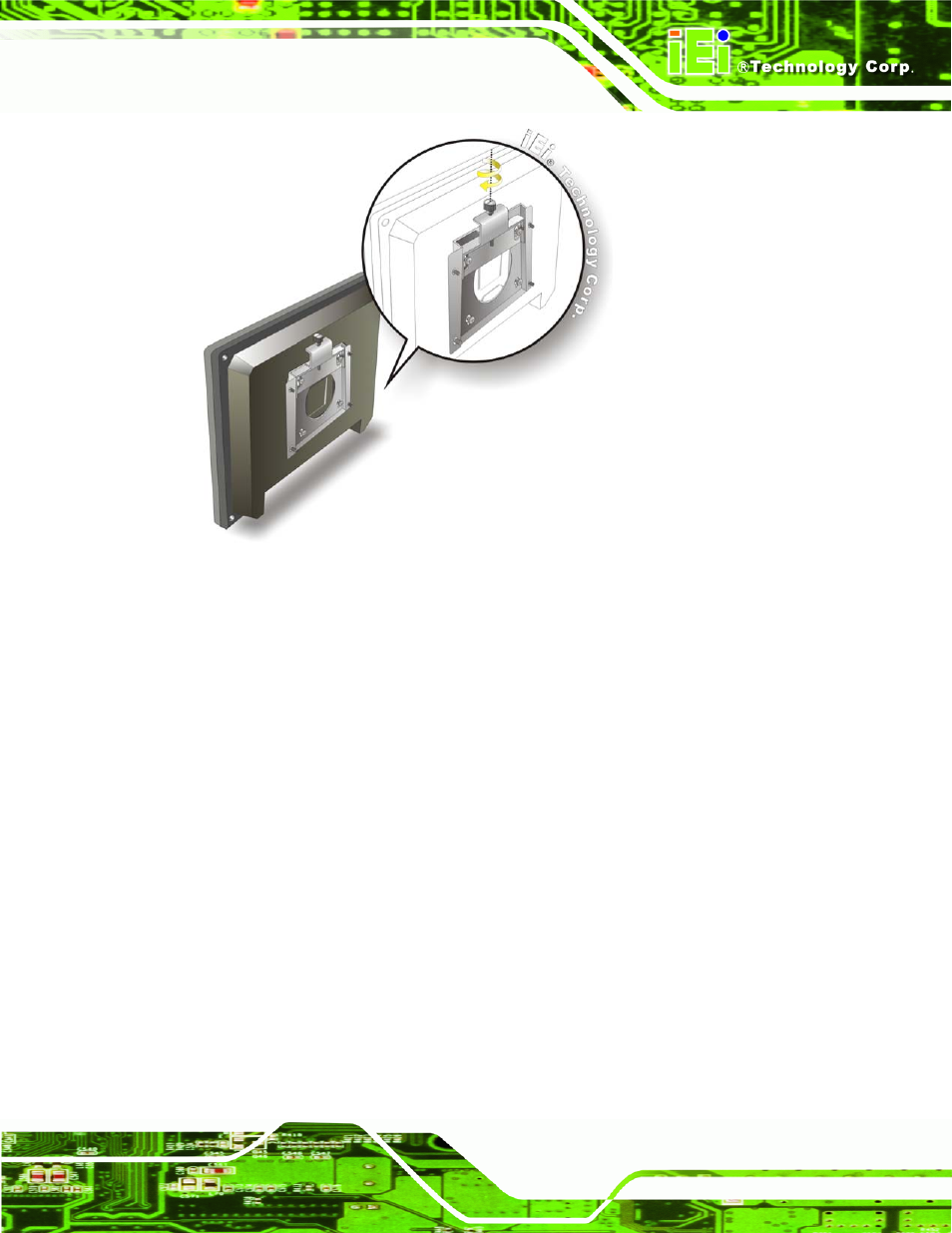

Figure 3-18: Securing the Panel PC

3.10.2 Panel Mounting

To mount the AFL-HM55 Series flat panel PC into a panel, please follow the steps below.

Select the position on the panel to mount the flat panel PC.

Cut out a section from the panel that corresponds to the rear panel dimensions of the flat

panel PC. Take care that the panel section that is cut out is smaller than the

overall size of the frame that surrounds the flat panel PC, but just large enough

for the rear panel of the flat panel PC to fit through. See the figures below for the

appropriate cut out area dimensions.
