AFL-HM55 Series Panel PC

Page 10

The AFL-17i-HM55 dimensions are shown in Figure 1-7 and listed below.

Width: 428

mm

Height: 250.1

mm

Depth:

76 mm (approximate)

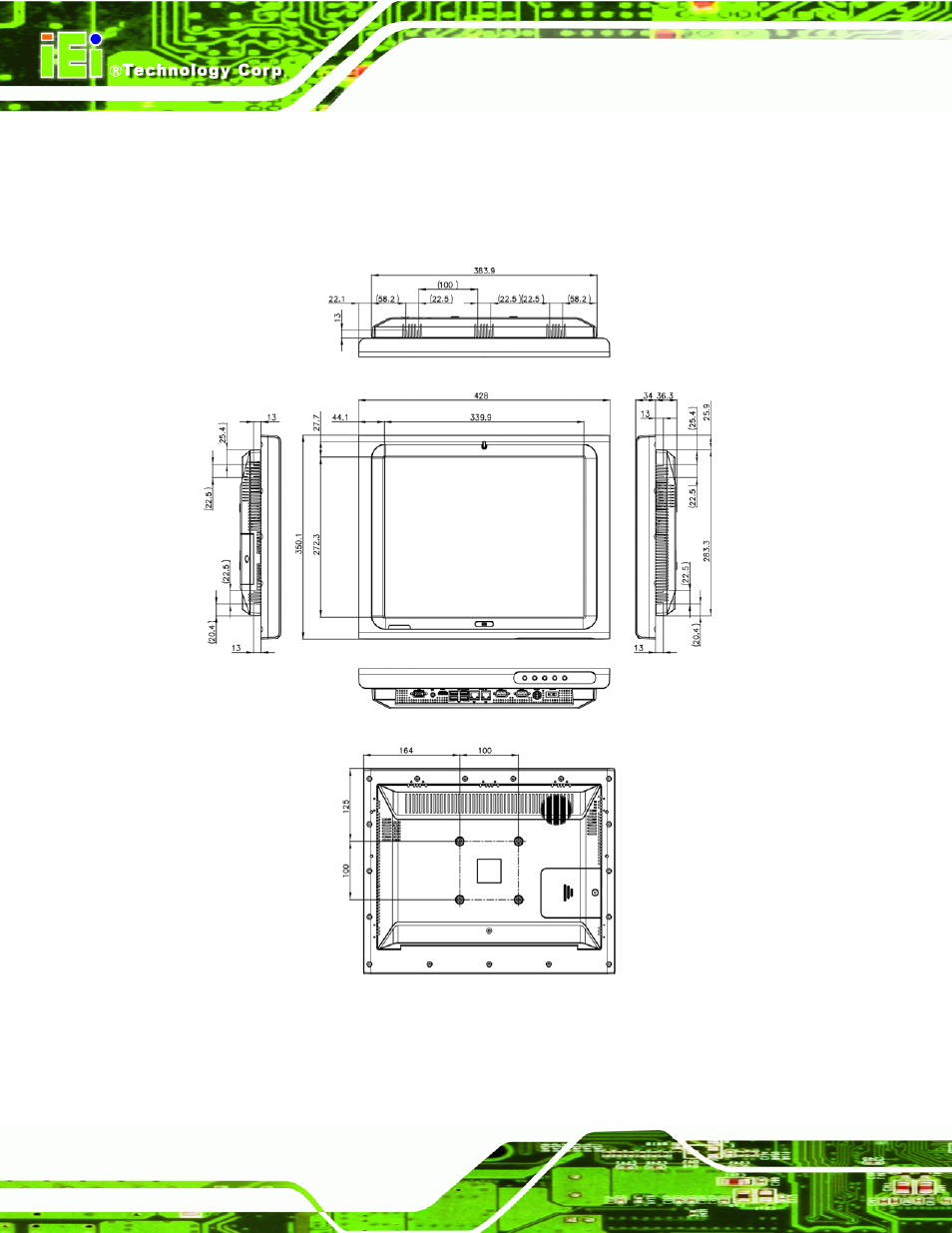

Figure 1-7: AFL-17i-HM55 Dimensions (mm)
