UPC-12A/GM45 Panel PC
Page 53
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the RJ-45 connector. Step 0:
4.11.3 Serial Device Connection
The UPC-12A/GM45 series has four male DB-9 connectors for serial devices to be
connected. Follow the steps below to connect a serial device to the UPC-12A/GM45
series panel PC.
Step 1: Locate the DB-9 connector . The location of the DB-9 connector is shown in
Chapter 2 .
Step 2: Insert the serial connector . Insert the DB-9 connector of a serial device into
the DB-9 connector on the I/O interface panel. See
572H572H572H572H572H572H572H574H
Figure 4-23 .

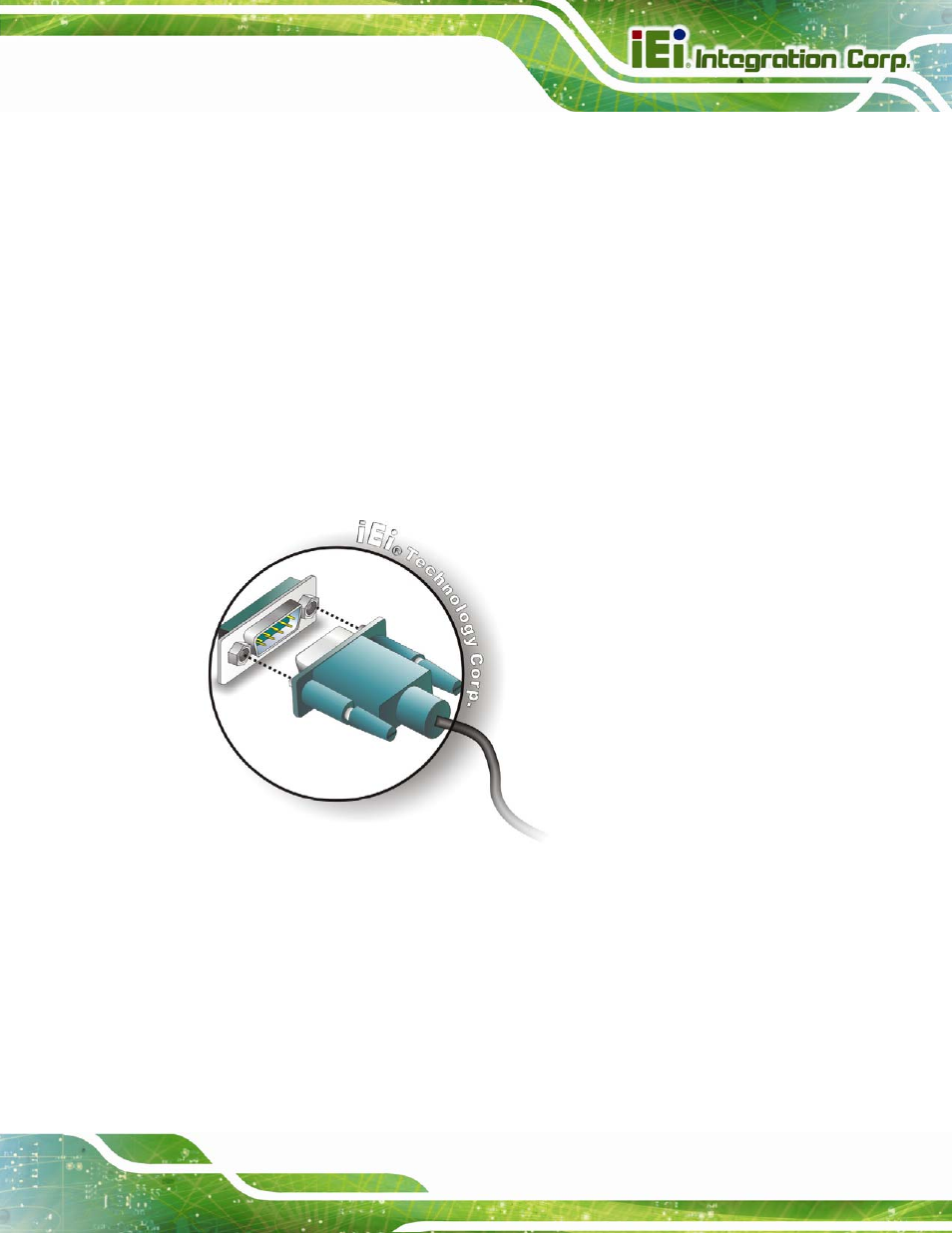

Figure 4-23: Serial Device Connector
Step 3: Secure the connector . Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
