IEI Integration UPC-12A_GM45 v2.10 User Manual
Page 48

UPC-12A/GM45 Panel PC
Page 36

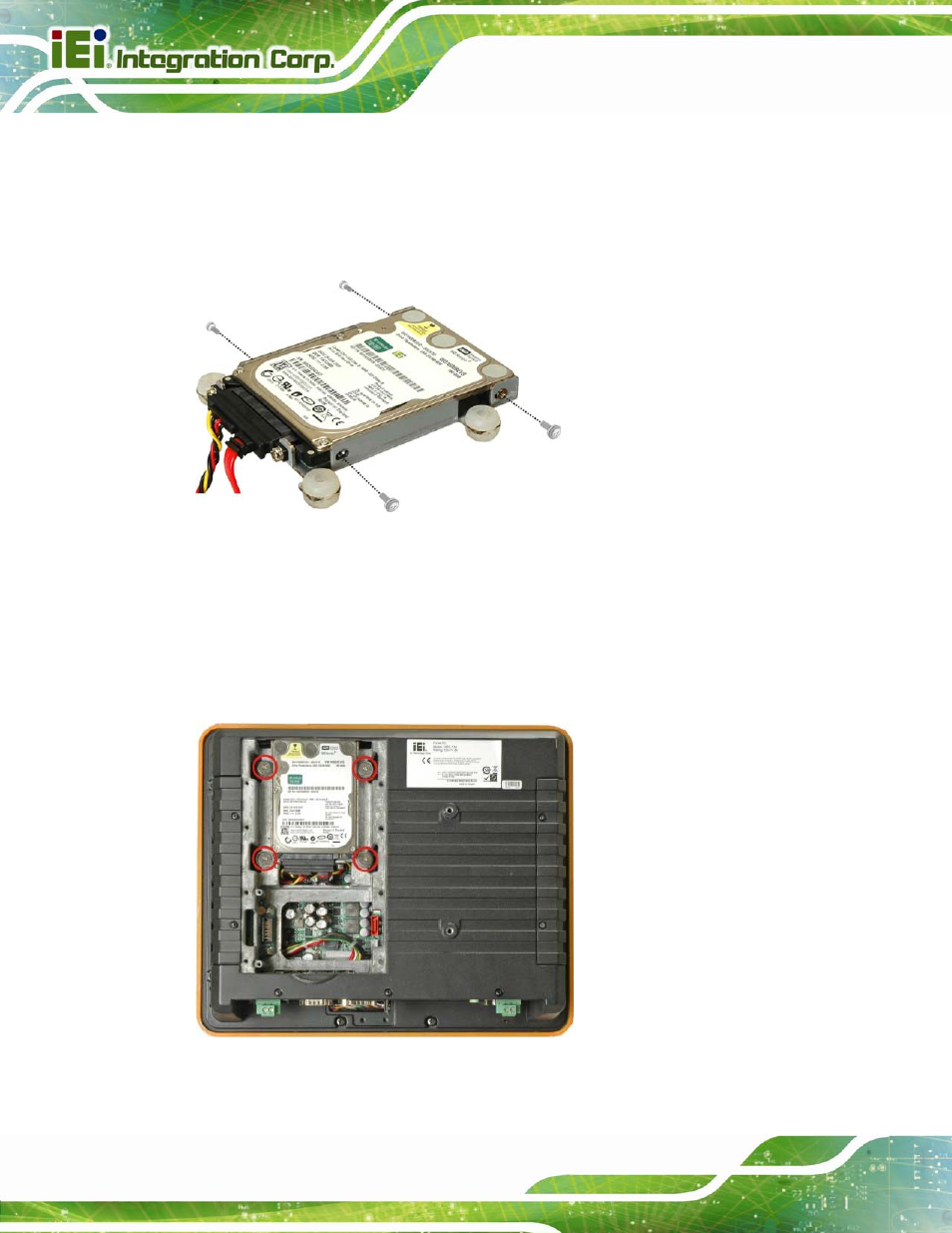

Step 5:
Secure the HDD
. Align the four retention screw holes on the both side of the
HDD with the retention screw holes of the HDD bracket. Insert four retention
screws into the both sides of the HDD bracket to secure the HDD to the HDD
bracket. See
540H540H540H540H540H540H540H542H
Figure 4-4
.
Figure 4-4: Secure the HDD with the HDD Bracket
Step 6:
Install the HDD.
Correctly align the four retention screw holes on the HDD
bracket with the retention screw holes on the aluminum chassis. Insert four
previously removed retention screws to secure the HDD bracket to the chassis.
See
541H541H541H541H541H541H541H543H
Figure 4-5
.
Figure 4-5: HDD Installation
