TANK-700 Embedded System
Page 31
Activity/Link LED Speed LED
STATUS DESCRIPTION STATUS DESCRIPTION
Off No link Off 10 Mbps connection
Yellow Linked Green 100 Mbps connection
Blinking TX/RX activity Orange 1 Gbps connection
Table 3-4: RJ-45 Ethernet Connector LEDs
3.9.9 Power Input, 4-pin Terminal Block
CN Label: POWER 1
CN Type:
4-pin terminal block
CN Location: See Figure 1-3
CN Pinouts: See Table 3-5 and Figure 3-20
Connect the leads of a 9V~36V DC power supply into the terminal block. Make sure that
the power and ground wires are attached to the correct sockets of the connector.
Pin Description Pin Description
1 GND 3 Power button
2 VCC 4 ACC
Table 3-5: 4-pin Terminal Block Pinouts

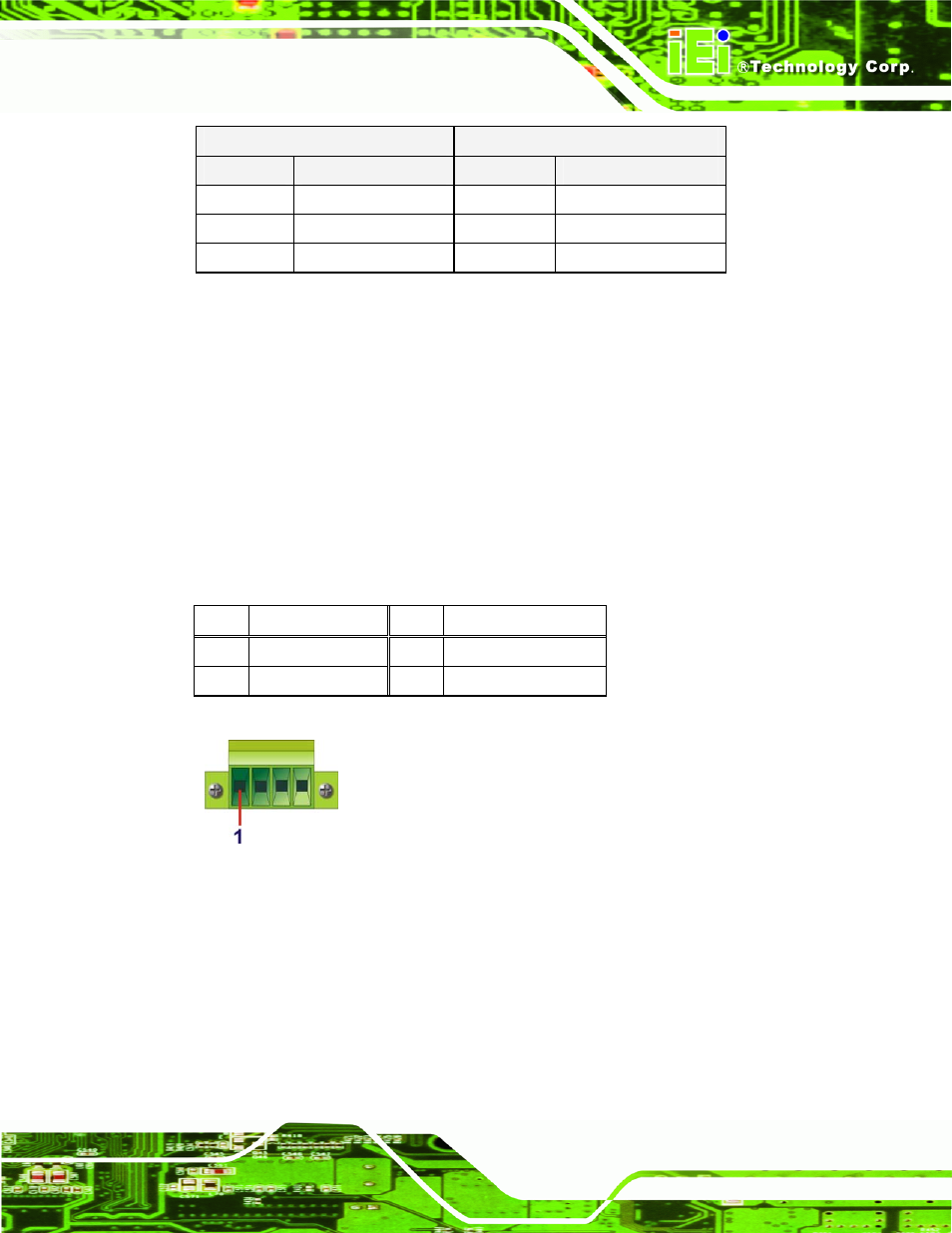

Figure 3-20: 4-pin Terminal Block Pinout Location
3.9.10 Power Input, 4-pin DIN Connector
CN Label: POWER 2
CN Type:
4-pin DIN connector
CN Location: See Figure 1-3
CN Pinouts: See Table 3-6 and Figure 3-21
