Step 8: Install the bracket that was previously removed in the same position it was
before.
Step 9: Reinstall the bottom panel to the TANK-700.
3.8 Mounting the System with Mounting Brackets
To mount the embedded system onto a wall or some other surface using the two mounting
brackets, please follow the steps below.
Step 1: Turn the embedded system over.
Step 2: Align the two retention screw holes in each bracket with the corresponding
retention screw holes on the sides of the bottom surface (Figure 3-12).

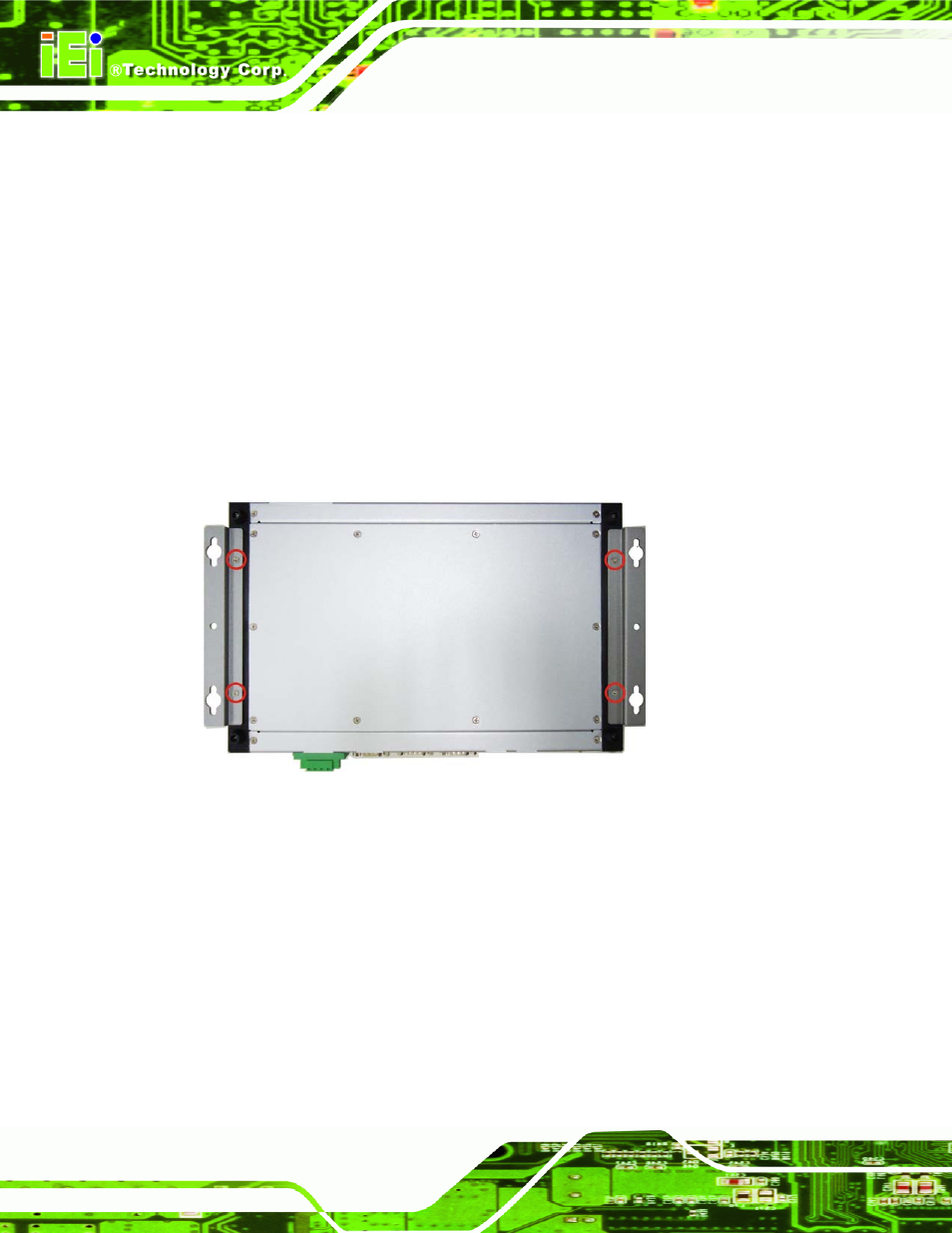

Figure 3-12: Mounting Bracket Retention Screws
Step 3: Secure the brackets to the system by inserting two retention screws into each
bracket (Figure 3-12).
Step 4: Drill holes in the intended installation surface.
Step 5: Align the mounting holes in the sides of the mounting brackets with the predrilled
holes in the mounting surface.
Step 6: Insert four retention screws, two in each bracket, to secure the system to the
wall.
