Pin
Description
Pin
Description
3
TX
8
CTS
4
DTR
9
RI
5
GND
Table 3-5: RS-232 Serial Port Pinouts

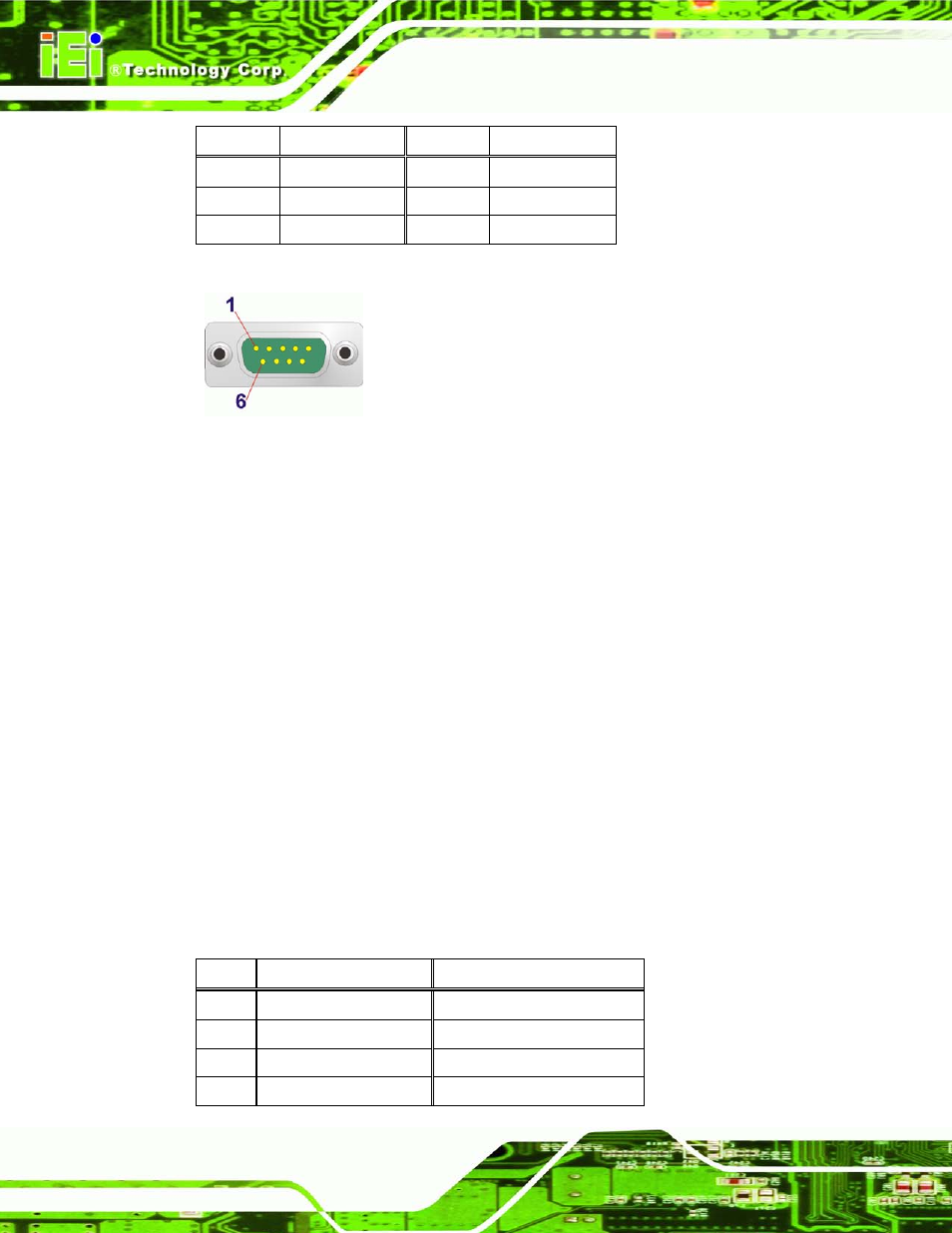

Figure 3-14: RS-232 Serial Port Pinout Location
3.7.7 RS -422/485 S e ria l P o rt Co n n e c to r
CN La b e l:
COM3
CN Typ e :
DB-9 connector
CN Lo c a tio n :
CN P in o u ts :
See Error! Reference source not found. and Figure 3-15
The RS-422/485 serial port device can be attached to the DB-9 port on the rear panel.
S te p 1:
Locate the DB-9 connector. The location of the DB-9 connector is shown in
S te p 2:
Insert the serial connector.
Insert the DB-9 connector of a serial device into
the DB-9 connector on the external peripheral interface. See Figure 3-13.
S te p 3:
Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Pin
Description (RS-422)
Description (RS-485)
1
RXD422 #
N/A
2
RXD422 +
N/A
3
TXD422 +
TXD485 +
4
TXD422 #
TXD485 #
