TANK-101B/BW Em b e d d e d S ys te m
P a g e 20
3.6 J u m p e r S e ttin g s

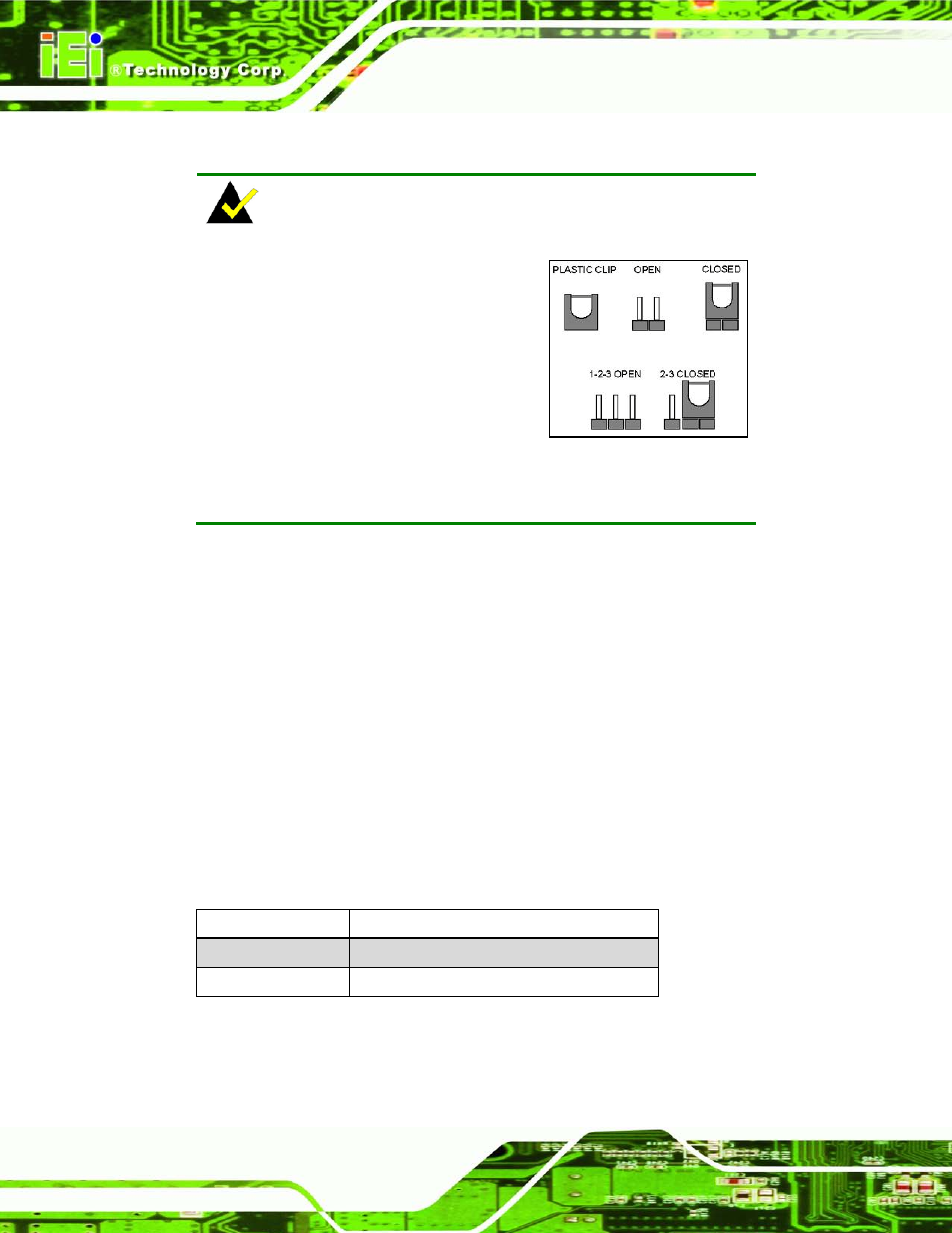

NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
To access a jumper, please remove the bottom panel (refer to Section 3.3). The
motherboard jumper is listed below.
 Clear CMOS jumper
3.6.1 Cle a r CMOS J u m p e r
J u m p e r La b e l: J _CMOS 1
J u m p e r Typ e : 3-pin header
J u m p e r S e ttin g s : See Table 3-1
To reset the BIOS, move the jumper to the "Clear CMOS" position for 3 seconds or more,
and then move back to the default position.
Setting Description
Short 1-2 Normal
Short 2-3 Clear CMOS
Table 3-1: Clear CMOS Jumper Settings
