KINO-9453 Mini-ITX Motherboard

COM 3 Function Select

Description

Short 1-2

RS-232 Default

Short 2-3

RS-422 or RS-485

Table 5-3: COM 3 Function Select Jumper Settings

The COM 3 Function Select jumper location is shown in Table 5-3.

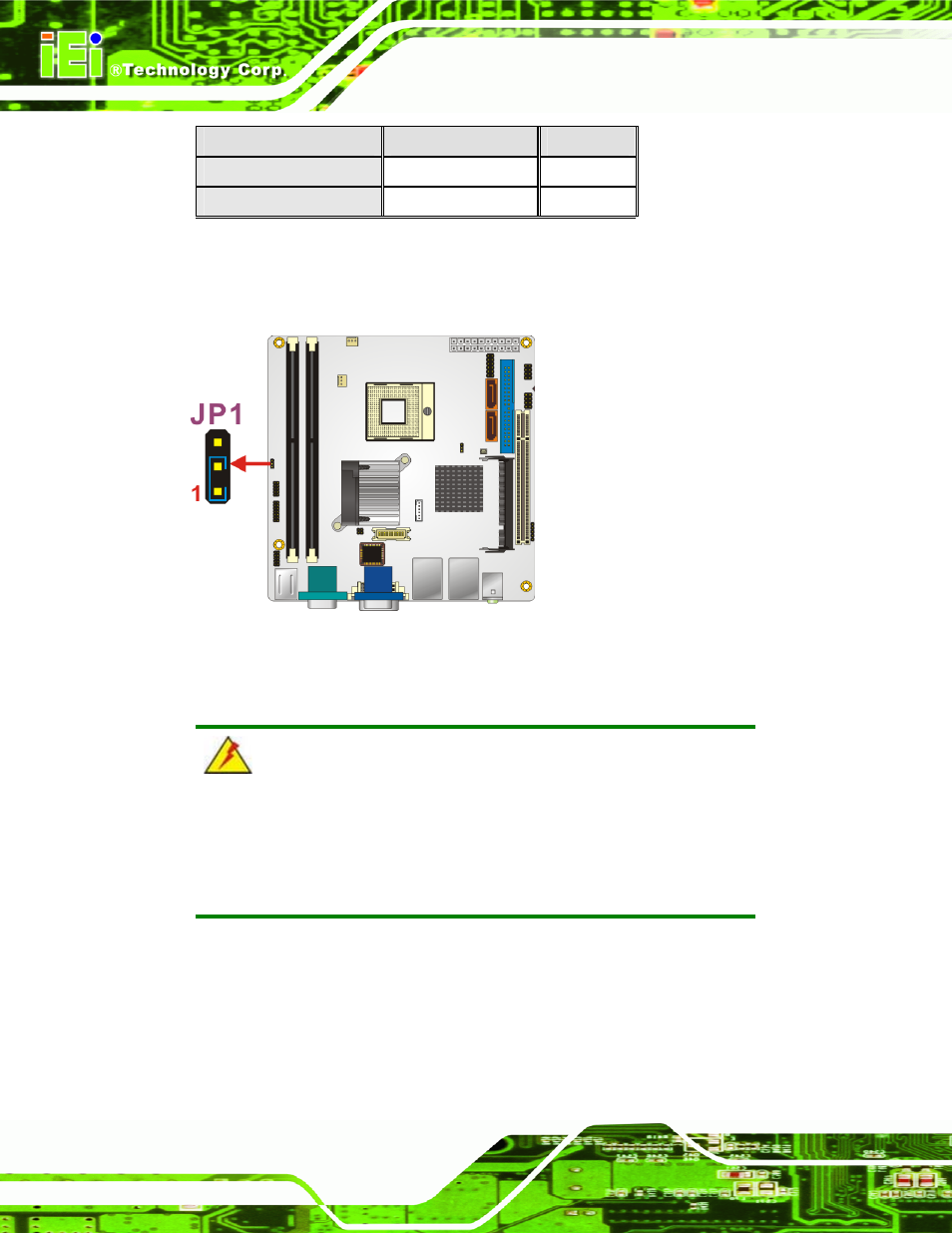

Figure 5-9: COM 3 Function Select Jumper Location

5.4.3 LVDS Voltage Selection

WARNING:

Permanent damage to the screen and KINO-9453 may occur if the

wrong voltage is selected with this jumper. Please refer to the user

guide that cam with the monitor to select the correct voltage.

Jumper Label:

JP4

Jumper Type:

4-pin header

Jumper Settings:

See Table 5-4

Jumper Location:

See Figure 5-10

Page 68
