KINO-9453 Mini-ITX Motherboard

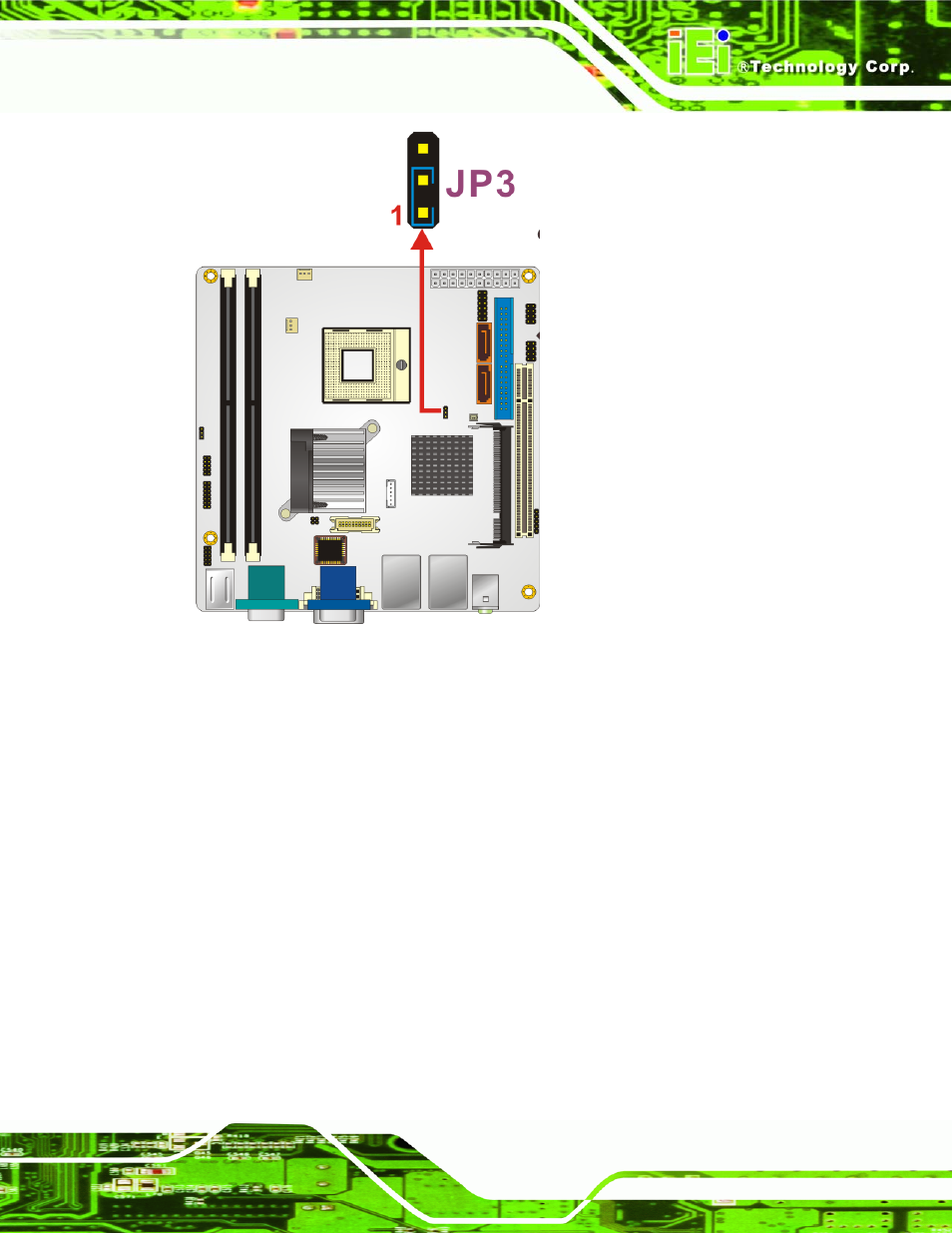

Figure 5-8: Clear CMOS Jumper

5.4.2 COM 3 Function Select Jumper

Jumper Label:

JP1

Jumper Type:

3-pin header

Jumper Settings:

See Table 5-3

Jumper Location:

See Figure 5-9

The COM 3 Function Select jumper sets the communication protocol used by the second

serial communications port (COM 3) as RS-232, RS-422 or RS-485. The COM 3 Function

Select settings are shown in Figure 5-9.
