KINO-9453 Mini-ITX Motherboard
The KINO-9453 keyboard and mouse connectors are standard PS/2 connectors.

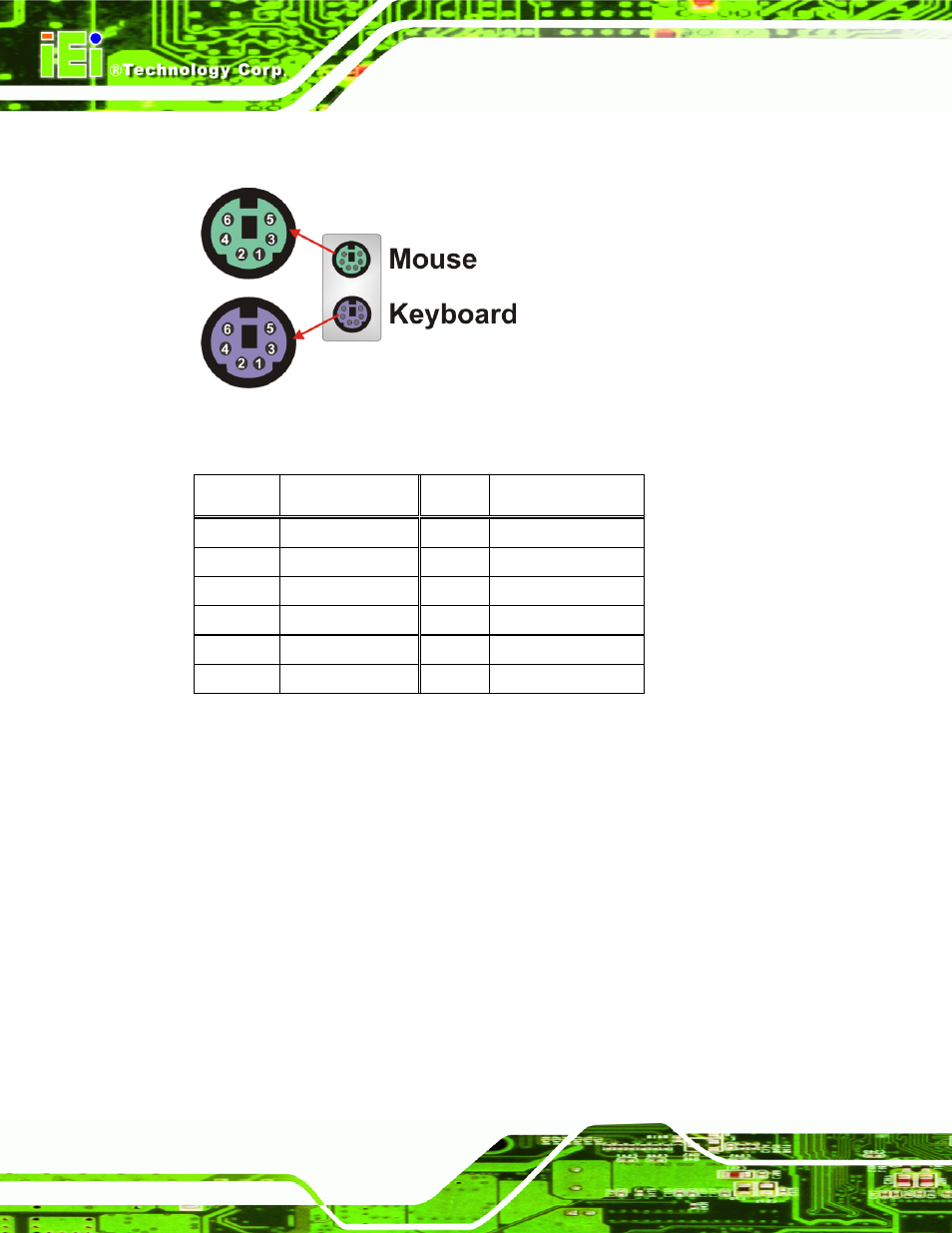

Figure 4-20: PS/2 Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 L_KDAT 7 L_MDAT
2 NC 8 NC
3 GND 9 GND
4 5V 10 5V
5 L_KCLK 11 L_MCLK
6 NC 12 NC
Table 4-20: PS/2 Connector Pinouts
4.3.6 Serial Port Connectors
CN Label: COM1/2
CN Type: DB-9
CN Location: See Figure 4-15
CN Pinouts: See Table 4-21 and Figure 4-21
The serial ports can be connected to a serial communications device directly.
