KINO-9453 Mini-ITX Motherboard

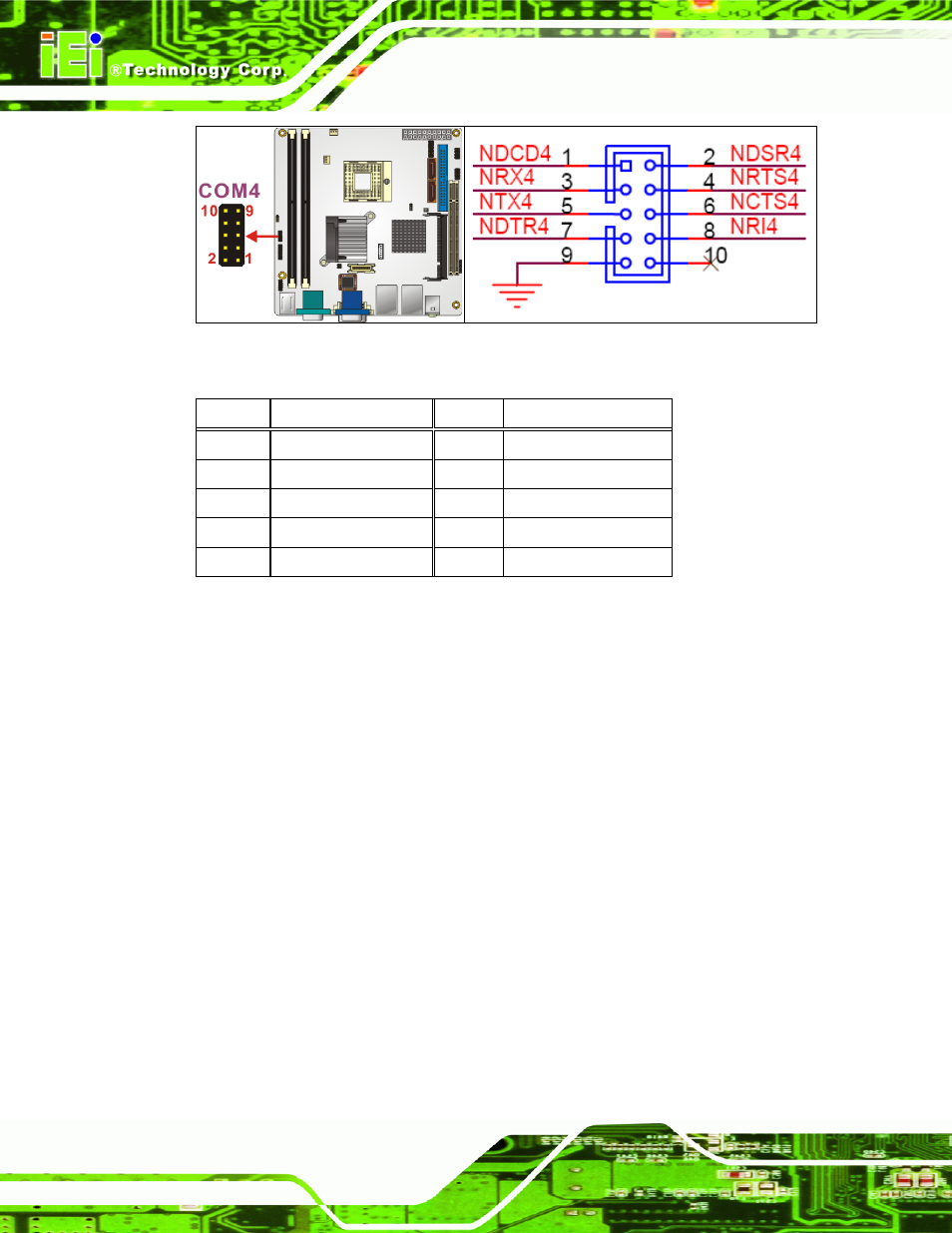

Figure 4-11: 10-Pin Serial Port Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 NC
Table 4-12: COM4 Pinouts
4.2.11 SATA Drive Connectors
CN Label: SATA1 and SATA2
CN Type: 1x7 pin SATA drive connector
CN Location: See Figure 4-12
CN Pinouts: See Table 4-13
The two SATA drive connectors are connected to four SATA II drives. SATA II drives
transfer data at speeds as high as 3.0Gb/s.
