KINO-9453 Mini-ITX Motherboard

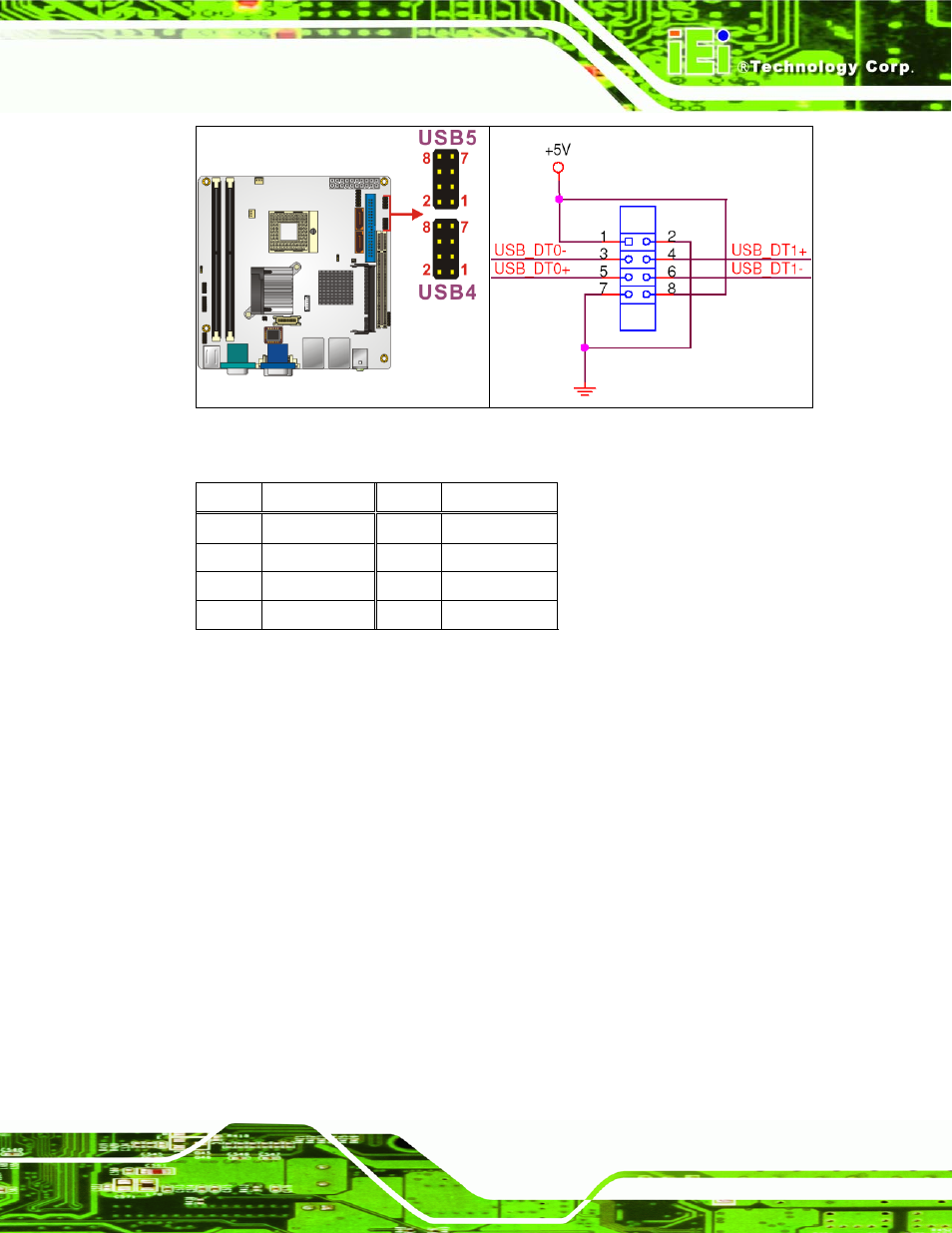

Figure 4-14: Internal USB Connector Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC

2 GND

3 DATA0- 4 DATA1+

5 DATA0+ 6 DATA1-

7 GND

8 VCC

Table 4-15: USB3 and USB4 Pinouts

4.3 External Interface Connectors

The peripheral connectors on the back panel are connected to devices externally when

the KINO-9453 is installed in a chassis. The peripheral connectors on the rear panel are:

2 x Audio jacks

1 x VGA connector

2 x RJ-45 Ethernet connectors

2 x Keyboard/mouse connectors

2 x Serial port connectors

1 x DVI connector

4 x USB 2.0 connectors

Page 47
