KINO-9453 Mini-ITX Motherboard
Mini-ITX form factor
RoHS compliant
Supports AT and ATX power supplies
1.2 KINO-9453 Overview
1.2.1 KINO-9453 Overview Photo
The KINO-9453 has a wide variety of internal and external peripheral connectors. The
peripheral connectors are connected to devices including PCI devices, mini PCI devices,
storage devices, display devices and serial communications devices. A labeled photo of
the peripheral connectors on the front of the KINO-9453 is shown in Figure 1-1.

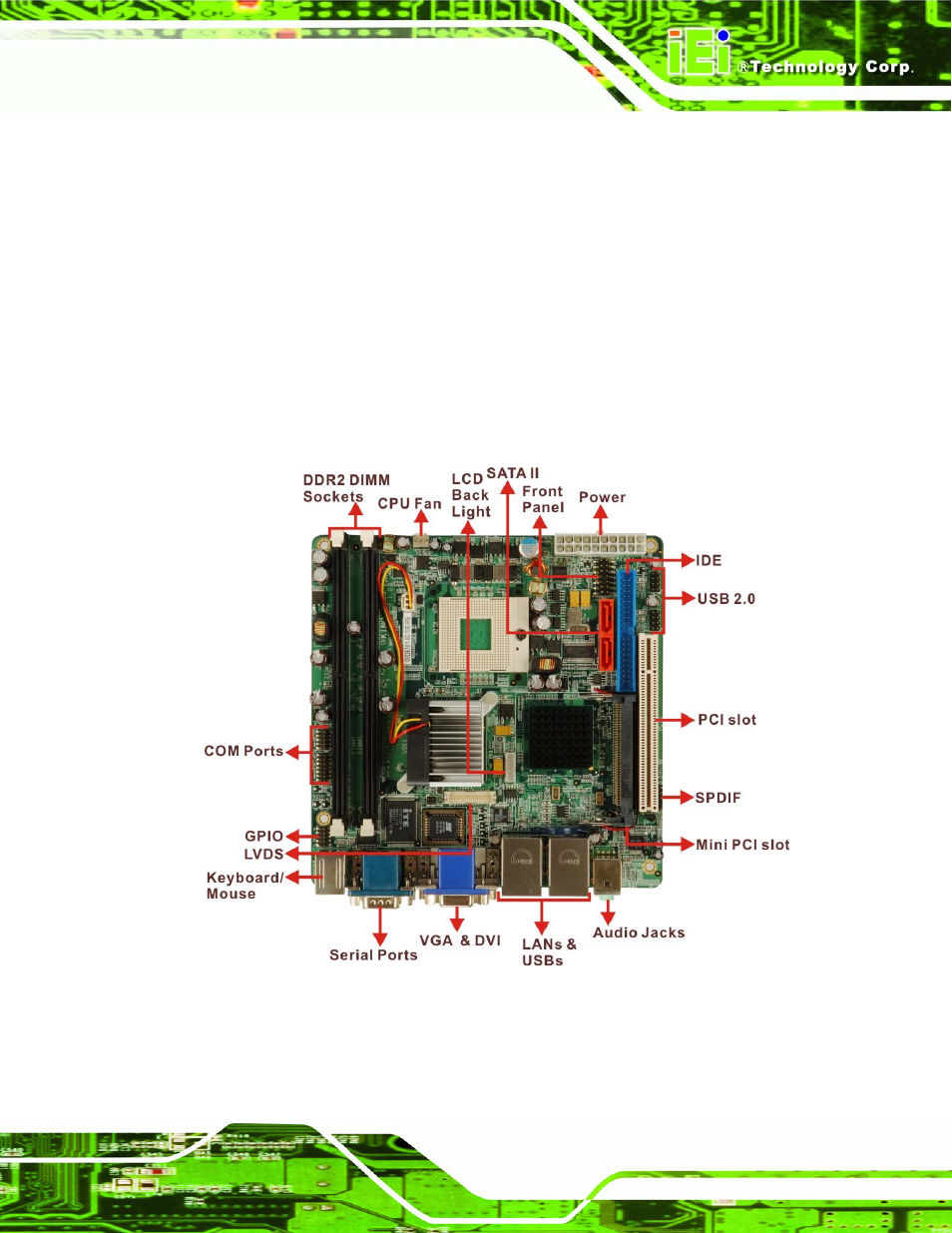

Figure 1-1: KINO-9453 Overview
Page 3
