KINO-9453 Mini-ITX Motherboard
CN Location: See Figure 4-2
CN Pinouts: See Table 4-3
The cooling fan connectors on the KINO-9453 provide a 12V, 500mA current to one CPU
cooling fan and one Northbridge cooling fan.
There is a “sense” pin in the fan connector,
which transfers the fan’s sense signal to the system BIOS in order to recognize the fan
speed. Please note that only some specific types of fans offer a rotation signal.

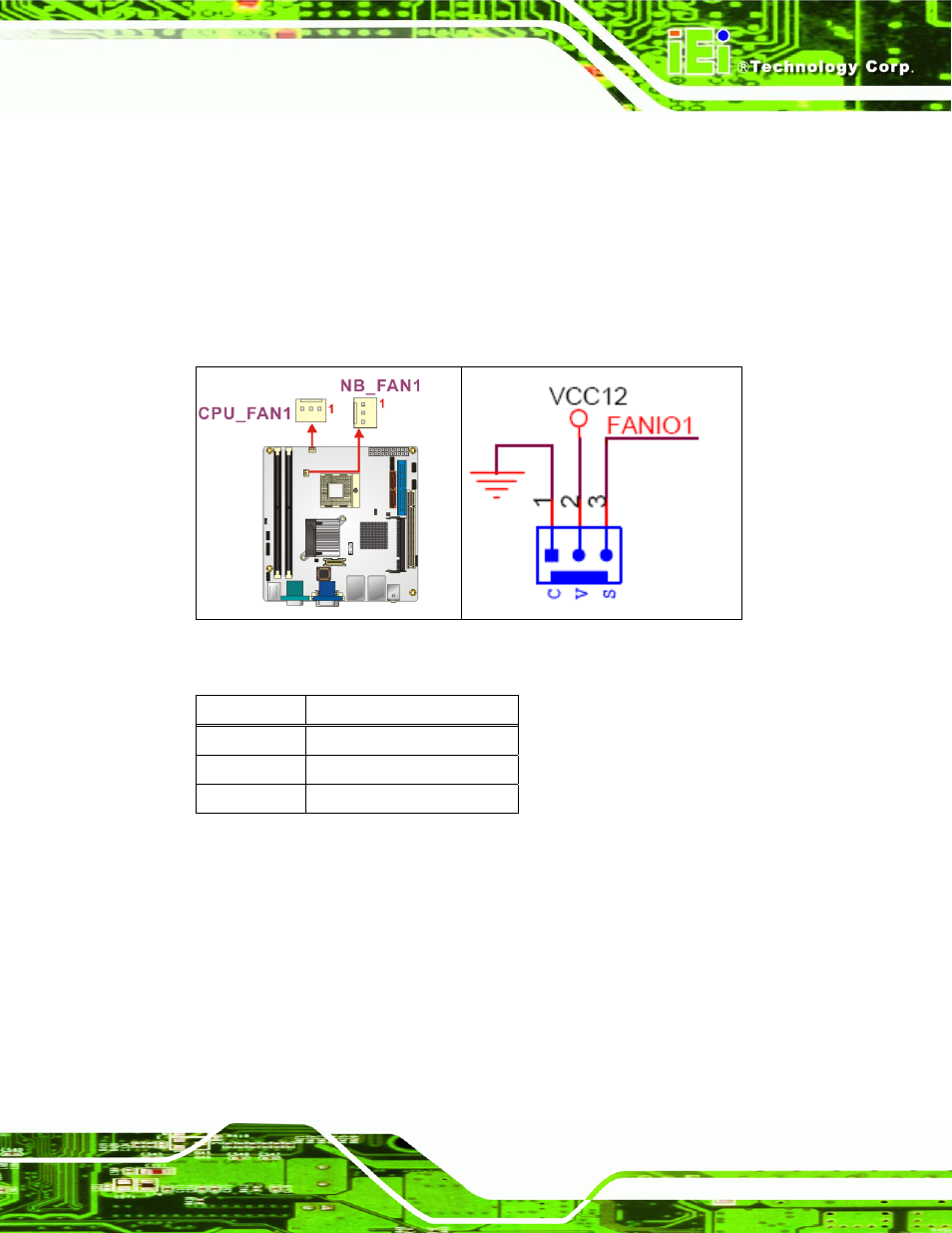

Figure 4-2: Fan Connector Locations
PIN NO. DESCRIPTION
1 GND
2 +12V
3 Sense
Table 4-3: Fan Connector Pinouts
4.2.2 Front Panel Connector
CN Label: F_PANEL1
CN Type: 14-pin header (2x7)
CN Location: See Figure 4-3
CN Pinouts: See Table 4-4
