ICE-945GSE COM Express Type 2 Module
Page 10
2.2 Data Flow

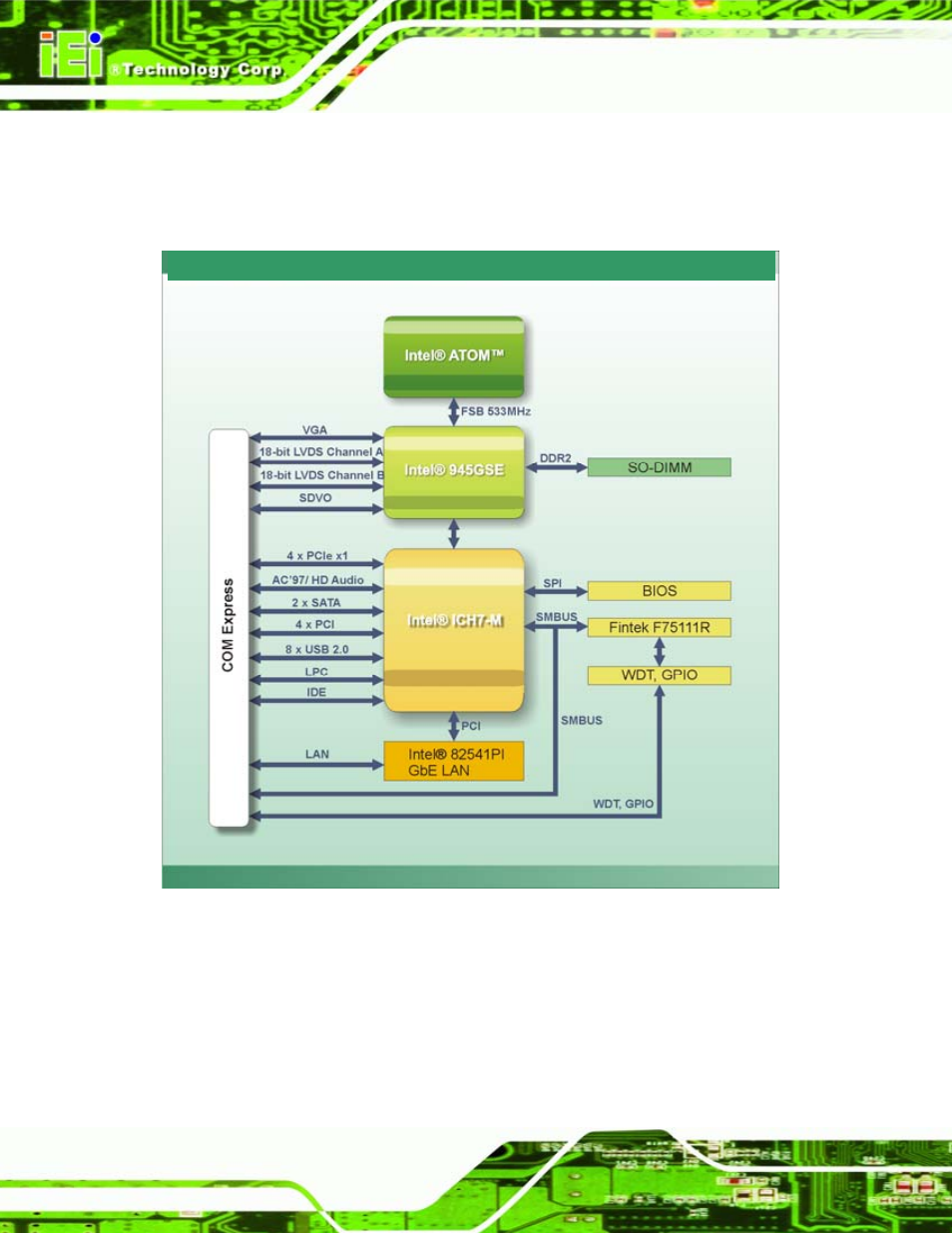

Figure 2-3 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.
Figure 2-3: Data Flow Block Diagram
2.3 Embedded 1.6 GHz Intel® ATOM™ N270 Processor
The ICE-945GSE comes with an embedded 45 nm 1.6 GHz Intel® ATOM™ N270
processor. The processor connects to the Intel® 945GSE Northbridge through the FSB.
The processor is shown in Figure 2-4 below.
