Publication 1760-GR001C-EN-P - April 2005

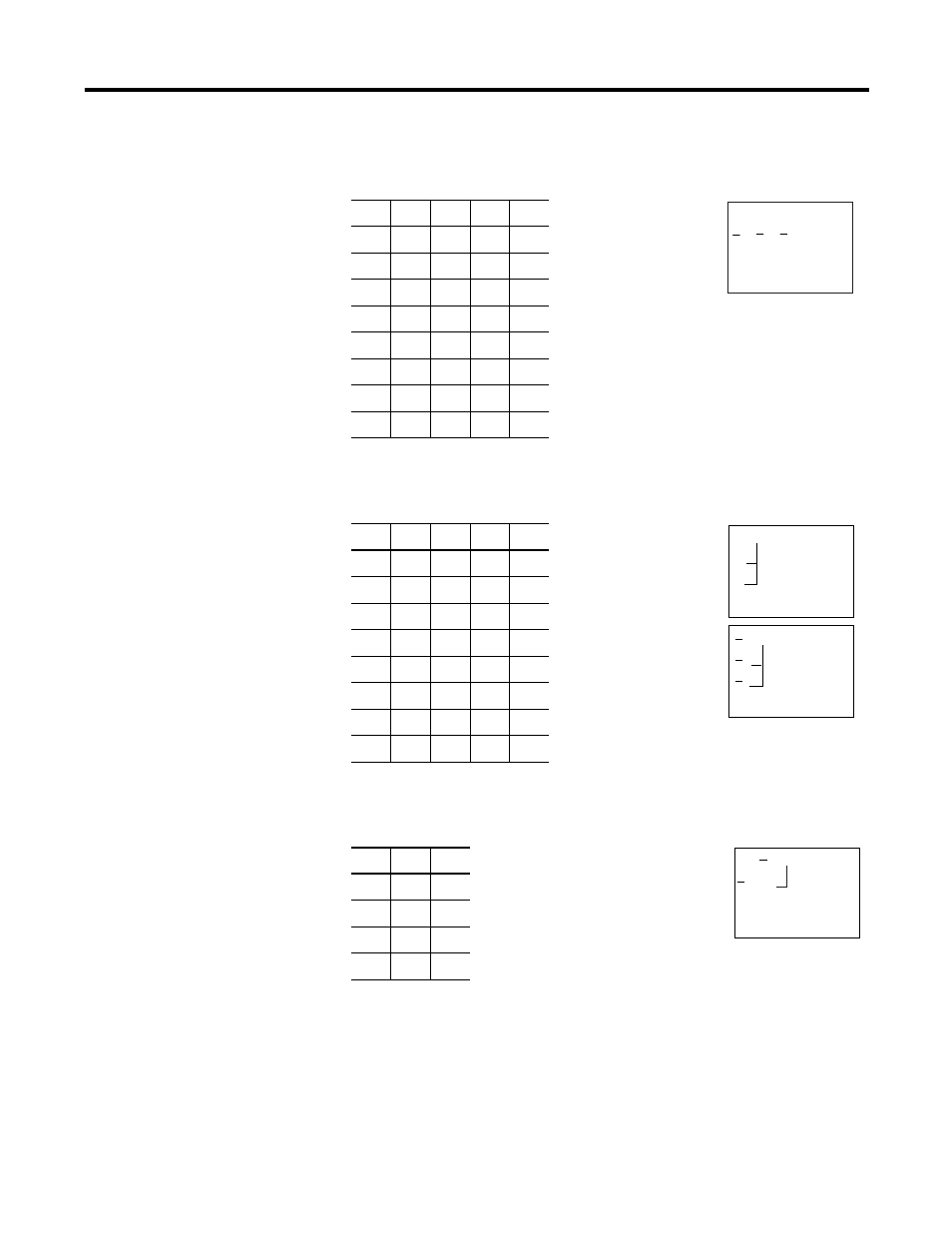

2-24 Drawing a Circuit with Pico
Series Connection (AND)
Parallel Connection (OR)
Exclusive OR Circuit (XOR)
I1 I2 I3 Q1 Q2
0 0 0 0 1
1 0 0 0 0
0 1 0 0 0
1 1 0 0 0
0 0 1 0 0
1 0 1 0 0
0 1 1 0 0
1 1 1 1 0
I1 I2 I3 Q1 Q2
0 0 0 0 1
1 0 0 1 1
0 1 0 1 1
1 1 0 1 1
0 0 1 1 1
1 0 1 1 1
0 1 1 1 1
1 1 1 1 0
I1 I2 Q1
0 0 0
1 0 1
0 1 1
1 1 0
I1-I2-I3-{Q1
I1-I2-I3-{Q2
I1--------{Q1
I2
I3
I1--------{Q2
I2
I3
I1-I2------{Q1
I1-I2
