1-12 Pico Controller

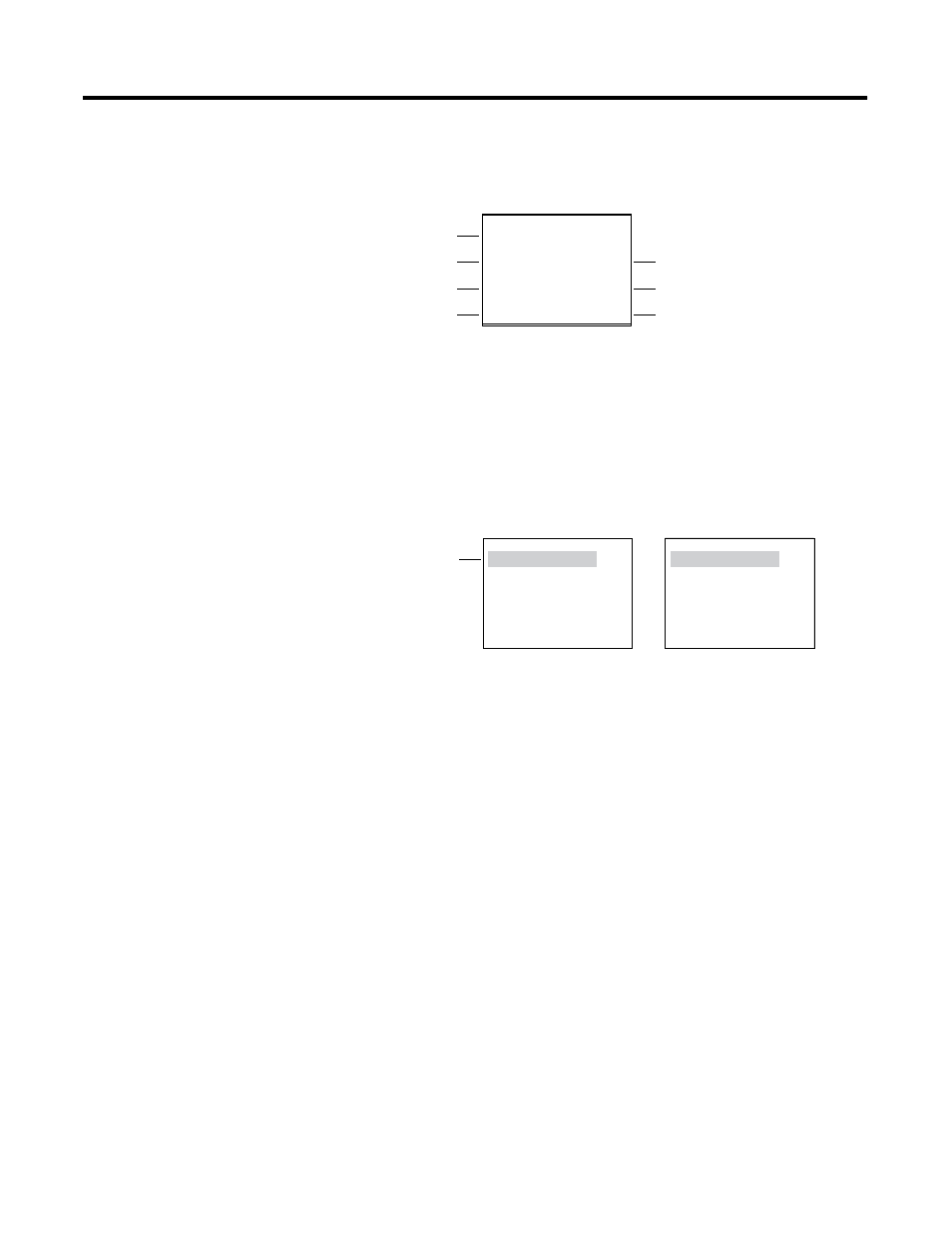

18-Point and 20-Point Status Display
Menu Display
1...5..8....
RE
I
P
MO
02:00 ST
.2..5..8 RUN
Inputs
Retention Enabled
Day, Time
Outputs
Debounce Enabled/P-Buttons Enabled
Start-up Mode
Mode
Inputs 1, 5, 8 ON
Outputs 2, 5, 8 ON
PROGRAM...
RUN...
PARAMETER
SET CLOCK..
RUN...
PARAMETER
SET CLOCK..
PASSWORD..
Current choice
blinks in the Pico
menu
Main menu with and without password enabled
