2-16 Drawing a Circuit with Pico
Counter Relay

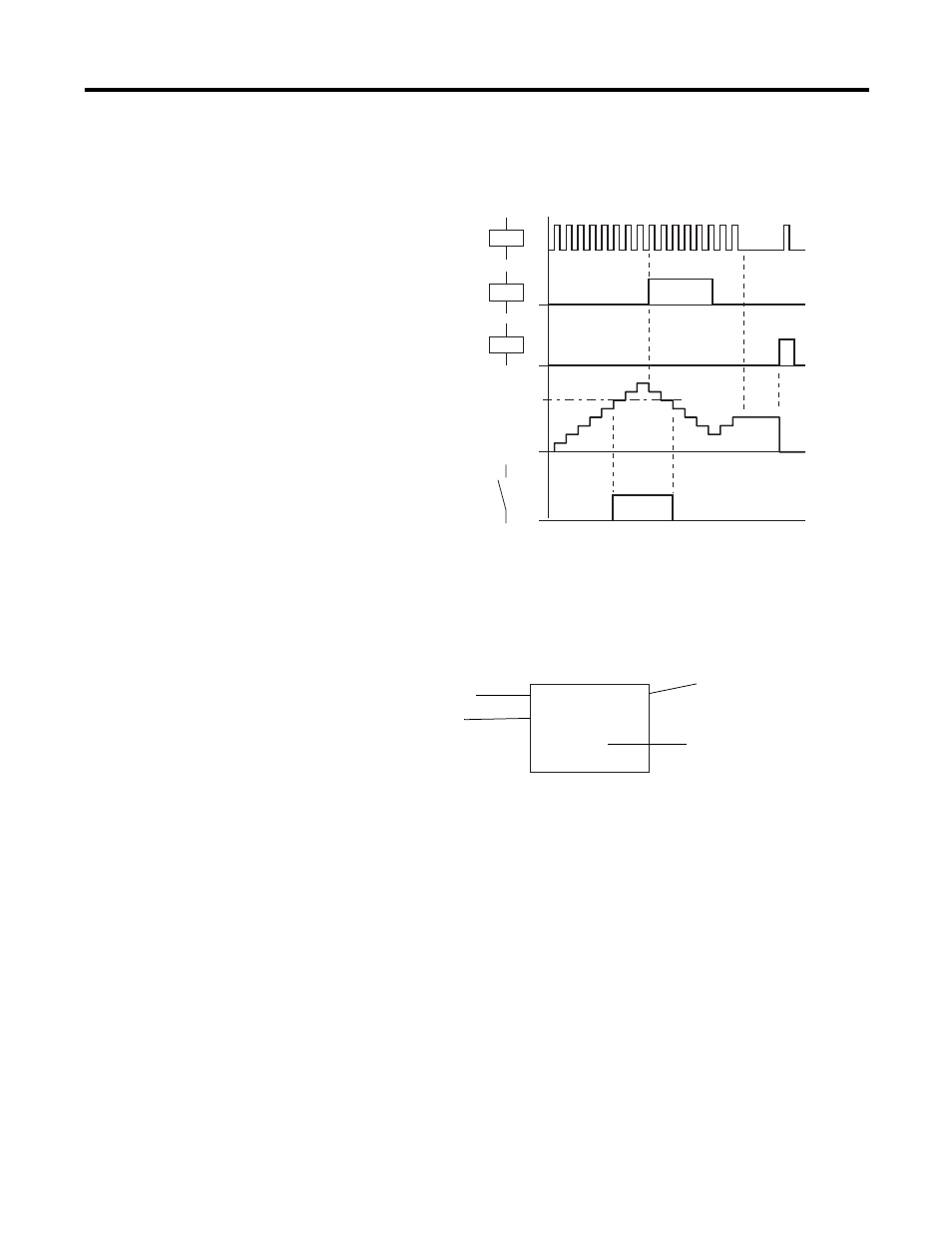

Parameter Display for Counter Relays
8
6
4
2
0
7
5
3
1
Count Input
Direction
Reset
Accumulated Value
(setpoint = 6)
Counter Output
on
on
on
on
C1 N +
AAAAA
S
Setpoint
Accumulated Value
Counter Number
Parameter Display
(Access Control)
