1-2 Pico Controller
Applications Everywhere
• Building and domestic automation, controllers for lighting,
doors, window shutters
• Control ventilators, rotating doors, greenhouses, exterior
lighting, window controllers, shop display lighting
• Create controllers for temperature, ventilation and brightness
levels
• Control machines and plant, presses, conveyor belts, oscillating
conveyors, sorters, pumps

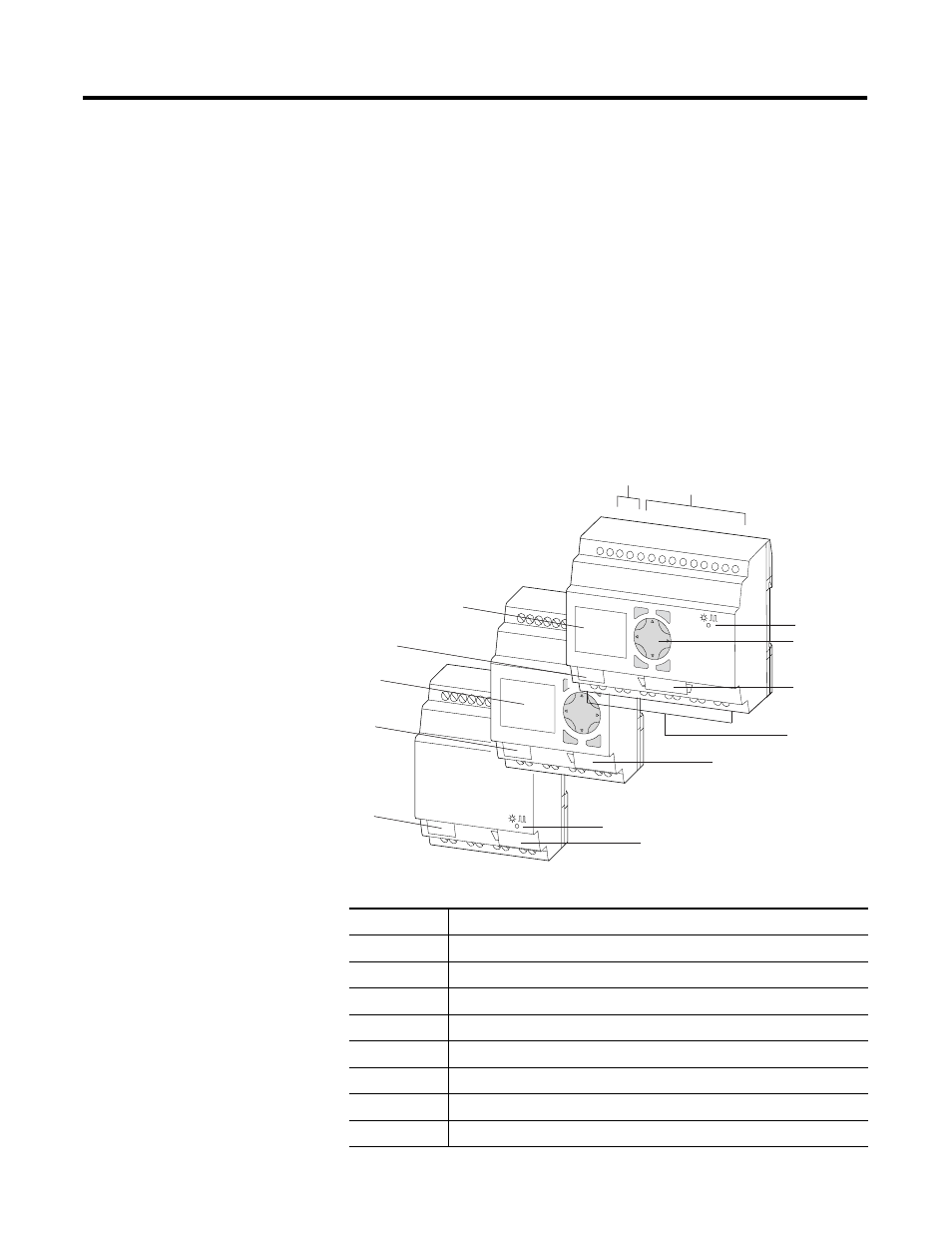

Overview of Pico
Item Description
1 Incoming Power
2 Inputs
3 Power/Run LED
4 Keypad
5 Socket for memory module or PC interface cable
6 Outputs
7 LCD display
8 Write-On Surface
Esc
Ok
Del
Alt
Esc
Ok
Del
Alt
7
1
2
3
4
5
6
3
5
5
8
8
7
8
