AB Soft PicoTM Controller 1760 - Manual (Page 34)

Publication 1760-GR001C-EN-P - April 2005

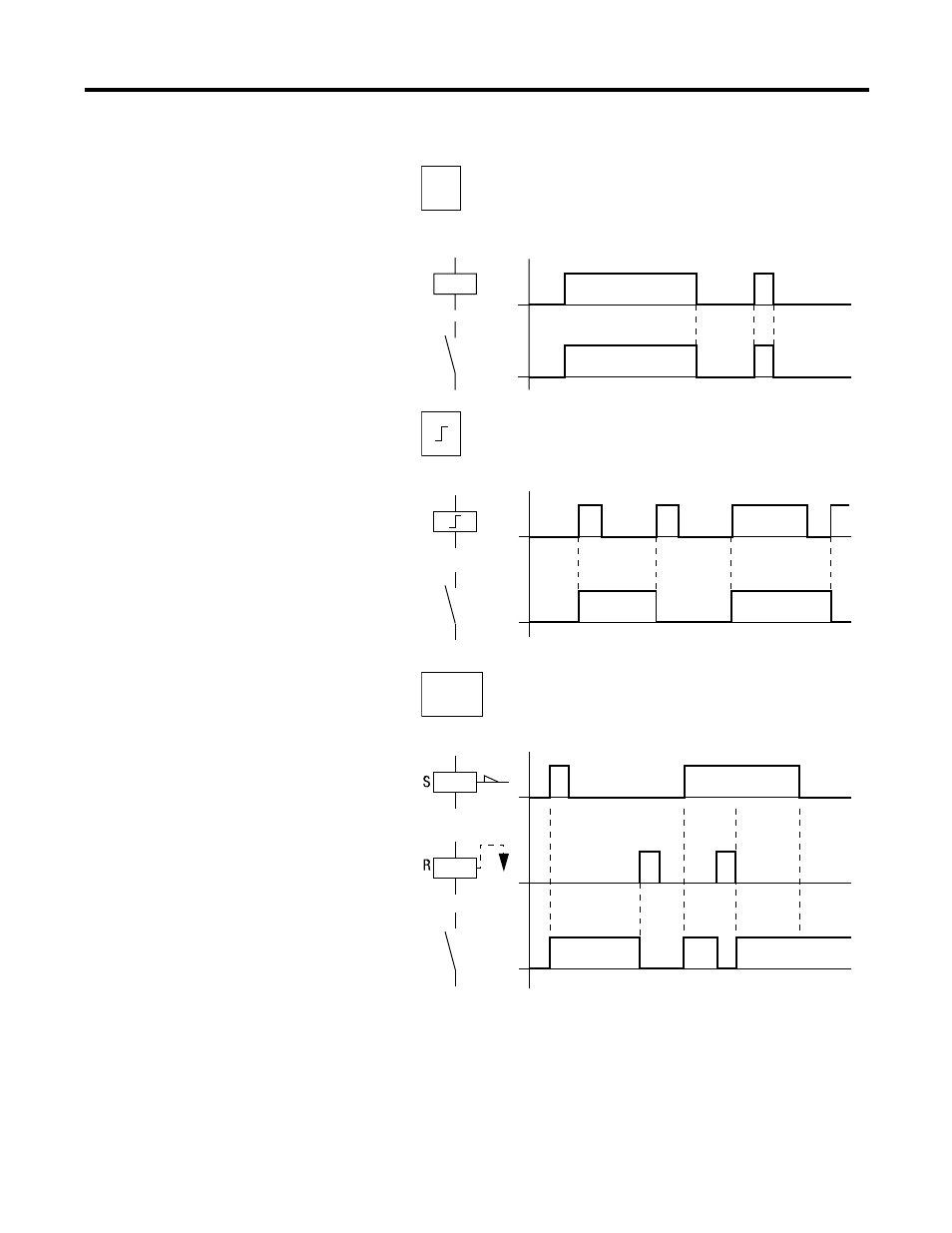

2-8 Drawing a Circuit with Pico
{
S,R
Basic Output Energize
Maintained/Flip-Flop Output
Latching Output
Instruction
Output
Instruction
Output
Reset Instruction
Output
Set Instruction
On
On
On
On
On
On
On
