XLT XD-9005B User Manual

Page 88

Text mode
Original mode

background image

Technical Support US: 888-443-2751

Technical Support INTL: 316-943-2751

88

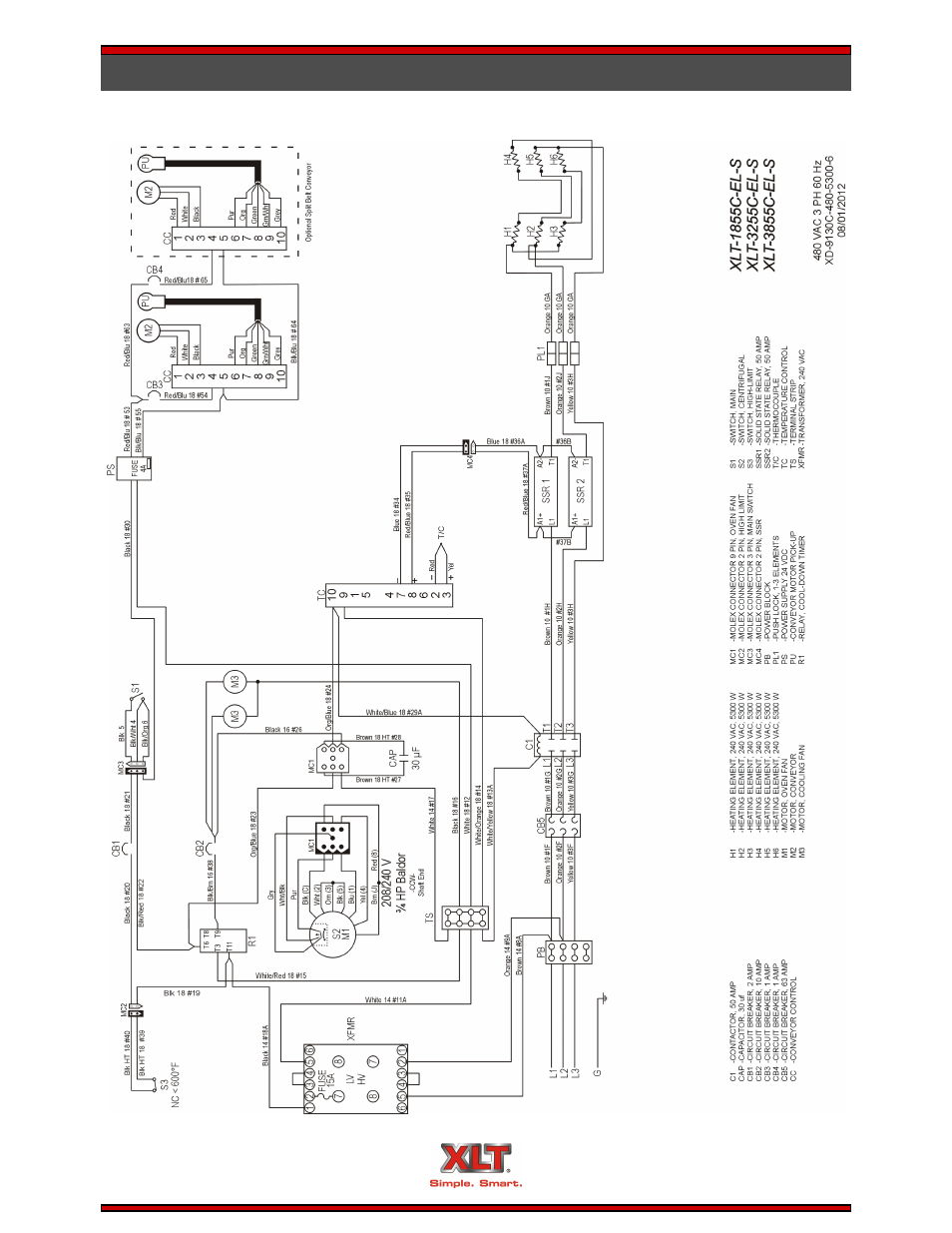

OVEN SCHEMATIC - STANDARD 480 VAC

1855-EL, 3255-EL, 3855-EL Standard 480 VAC
