AVI HOOD ELECTRICAL REQUIREMENTS

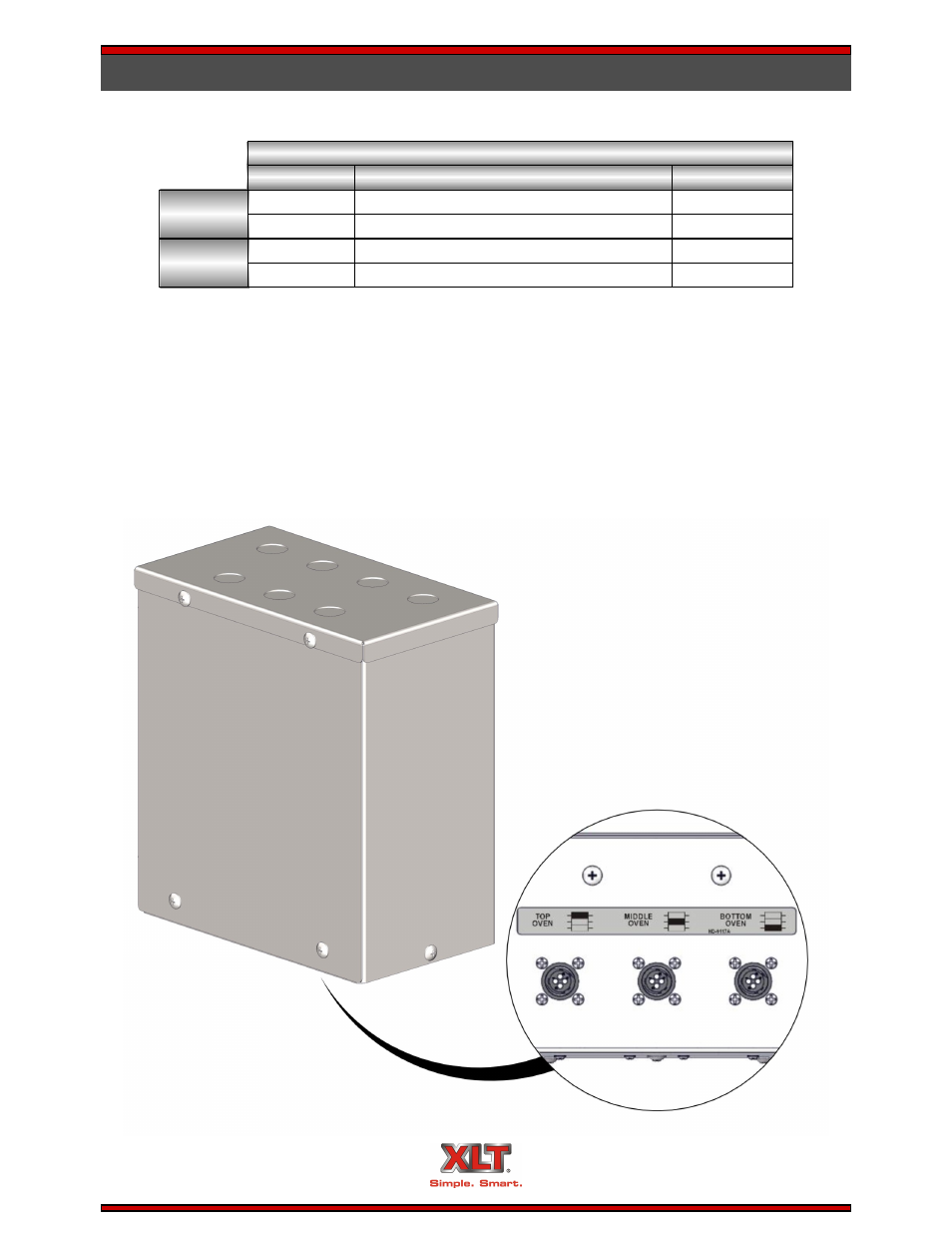

Inputs into Junction Box
The AVI Hood system provides:
Three (3) switching outputs for HVAC dampers and dedicated units
One (1) 230 VAC, 10 Amp, variable frequency, three phase power output for the ventilation
exhaust fan.
Outputs from Junction Box
# of Circuits
Rating
Purpose
1
208/240 VAC, 1 Phase, 60 Hz, 3 Amp
VFD Controller
1
120 VAC, 1 Phase, 60 Hz, 1 Amp
Lights
1
230 VAC, 1 Phase, 50 Hz, 3 Amp
VFD Controller
1
230 VAC, 1 Phase, 50 Hz, 1 Amp
Lights
Standard
World
AVI Hood Electric Utility Specifications
