MODEL NUMBER AND OPTION SELECTIONS
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > FAX (626) 855-4862

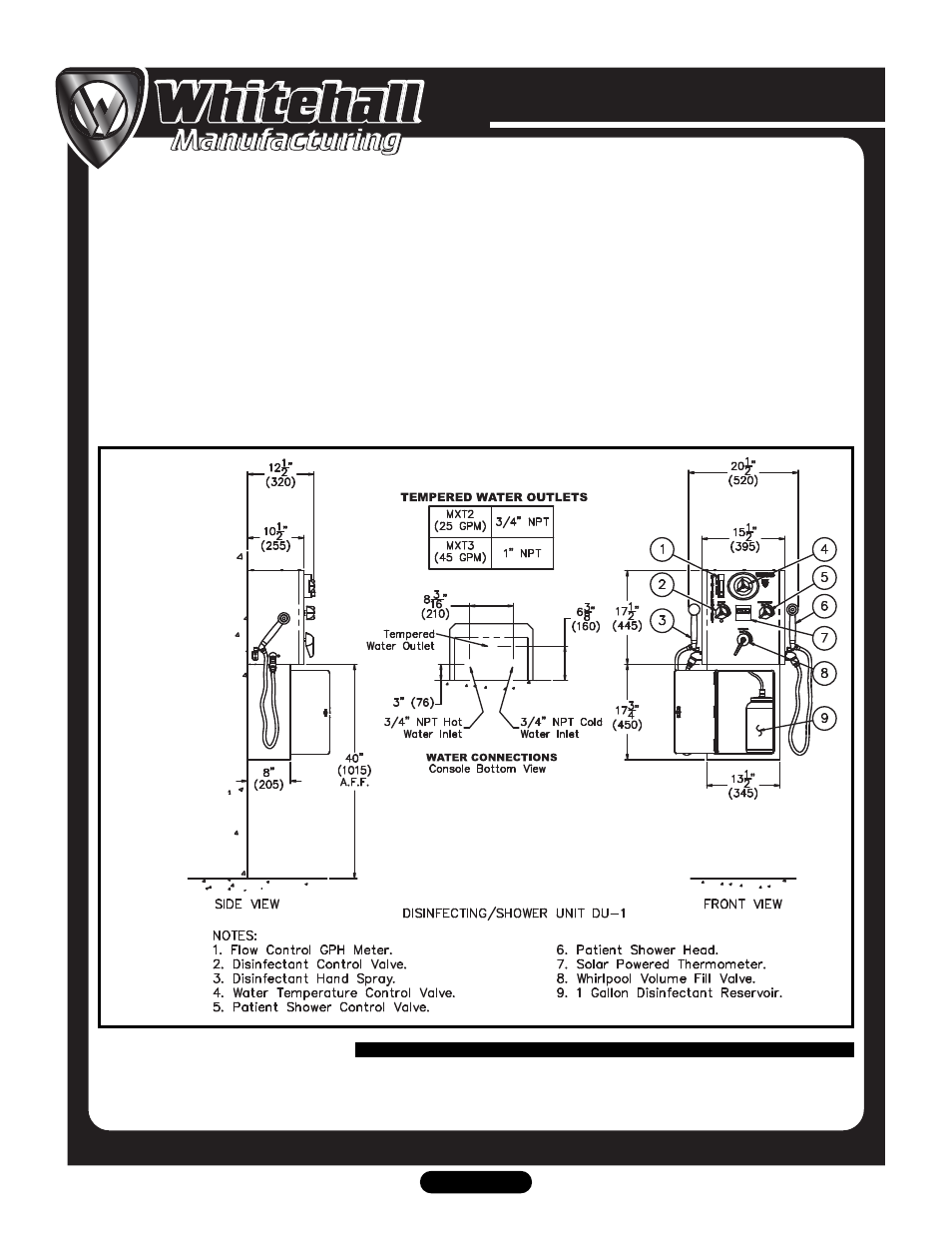

Disinfecting/Shower Unit
All dimensions are nominal and subject to manufacturer’s
change without notice. Whitehall assumes no responsibility
for use of void or suspended data. © 2005 Whitehall
Manufacturing, A Division of Acorn Engineering Company.
Please visit www.whitehallmfg.com for most current
specifications.
Model Number & Options_____________________________________________ Quantity_____________
Company_________________________________________________________ Date___________________
Contact________________________________________________ Title______________________________
Approval for Manufacturing/Signature_______________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Series
 -DU Disinfecting/Shower Mixing Unit
Type
 -1 Off the Floor, Wall Outlet
Mixing Valves (Must Specify)
 -MXT2 Thermostatic Mixing Valve (25 G.P.M.)
 -MXT3 Thermostatic Mixing Valve (45 G.P.M.)
Suffix Options
 -CL Cylinder Lock on Access Door
 -EG Enviro Glaze Color Powder Coating -
Specify Color:________________________
(Special Finish Consult Factory)
 -IOP On/Off Button, Patient Shower Handle
 -QDD Quick Disconnect, Disinfectant Sprayer
 -QDS Quick Disconnect, Stainless Steel Filler Hose
 -QPD Quick Disconnect, Patient Shower
 -SAD Side Access Door
 -SSF Stainless Steel Filler Hose
 -TSF Tub Filler Spout
 -XLD Extra Long Hose, Disinfectant Sprayer
 -XLP Extra Long Hose, Patient Shower
DU-1 Last Update: 1/1/05
All dimension
figures in
parentheses
are in millimeters.
