Moist Heat Therapy
1
1
10-3/4" 8-3/4"
(275) (220)
15-1/2" 17-1/2"
(395) (445)
18-1/2"
(470)

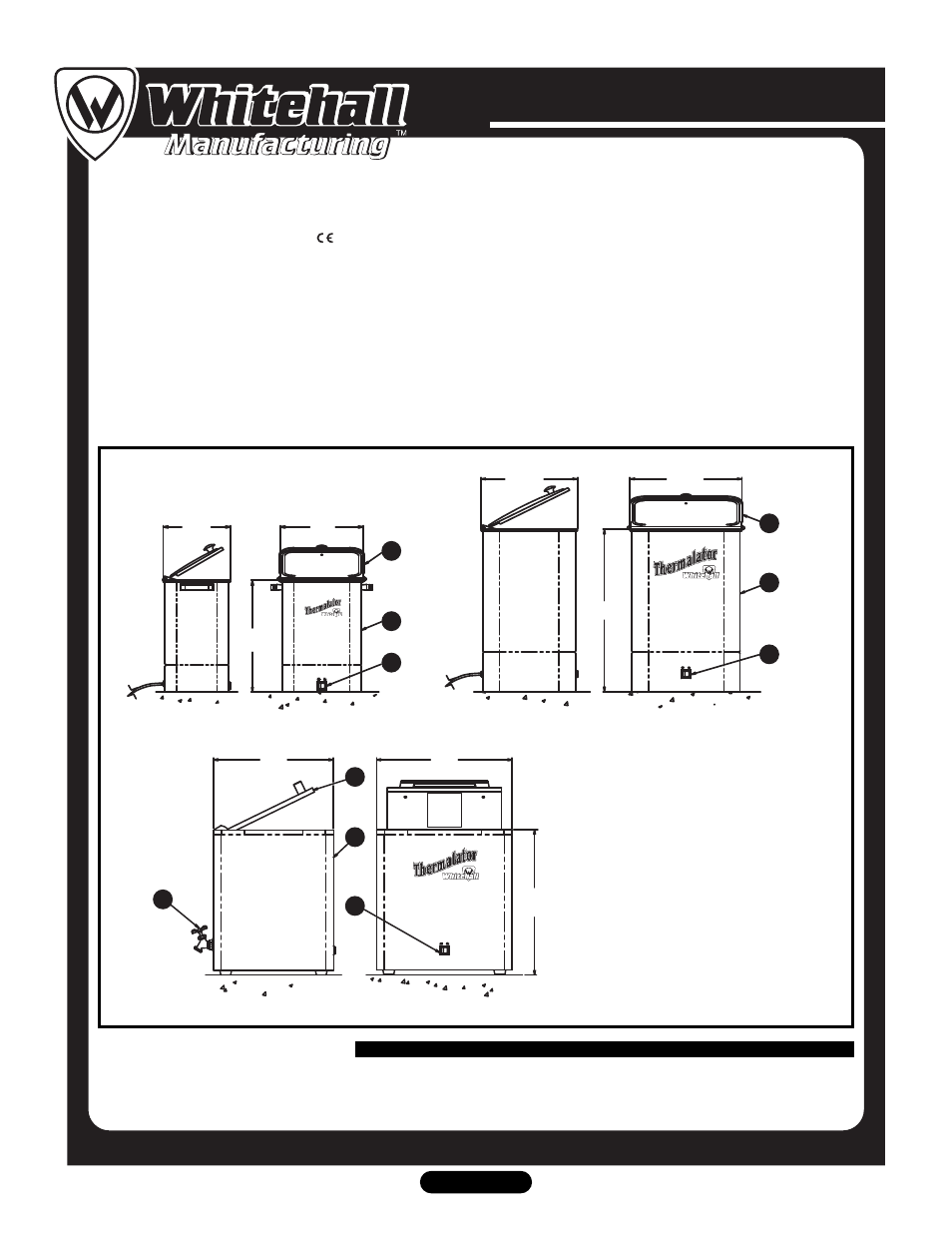

T-8-S Stationary Thermalator
T-4-S Stationary Thermalator T-6-S Stationary Thermalator
1
2
3
4
2
2
3
12-3/4" 14-1/2"
(315) (370)
21"
(535)
14-1/2"
(370)
3
NOTES:
1) Lid with Hinge Pin & Stop
2) Stainless Steel Thermalator Tank
3) Illuminated On/Off Indicator Switch
4) 3/4" (20 mm) Hose Bib Drain
All dimension figures in parentheses
are in millimeters.
MODEL NUMBER AND OPTIONS SELECTION
BASE MODEL NUMBER
T Thermalator 220 Volt ( )
CAPACITY (Must Specify)
-4
-6
-8
TYPE
-S
q
q E
q
q
q
q
T Thermalator 115 Volt
4 Thermal Packs, 10” x 12”
6 Thermal Packs, Assorted Sizes
8 Thermal Packs, 10” x 12”
Stationary
PRODUCT OPTIONS (Must Specify)
q
q
q
q
q
q
q
-ADH Auxiliary Drain Hose, 5 ft.
-DG
Digital Thermometer
-EG Enviro Glaze Color Powder Coating
Specify Color:____________________
(Special Finish Consult Factory)
-GFI Ground Fault Interrupter
-IW4 Insulated Wrap for T-4-S
-IW6 Insulated Wrap for T-6-S
-SBW Side Bottle Warmer for T-4-S or T-6-S
