Series
o
o
o
o
o
o
-SB Slant Back Series
Capacity
-100 Gallons
Type
-S Stationary Whirlpool
Suffix Options
(see Whirlpool Option Section for Details)
-ALC
Adjustable Low Chair
-ALS
Adjustable Low Stool
-EG
Enviro Glaze Color Powder Coating
Specify Color:__________________
(Special Finish Consult Factory)
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > FAX (626) 855-4862
Last Update: 12/16/13
ELECTRIC REQUIREMENTS:
Amps: 8
Volts: 115
Hertz: 60
GFI Receptacle
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.

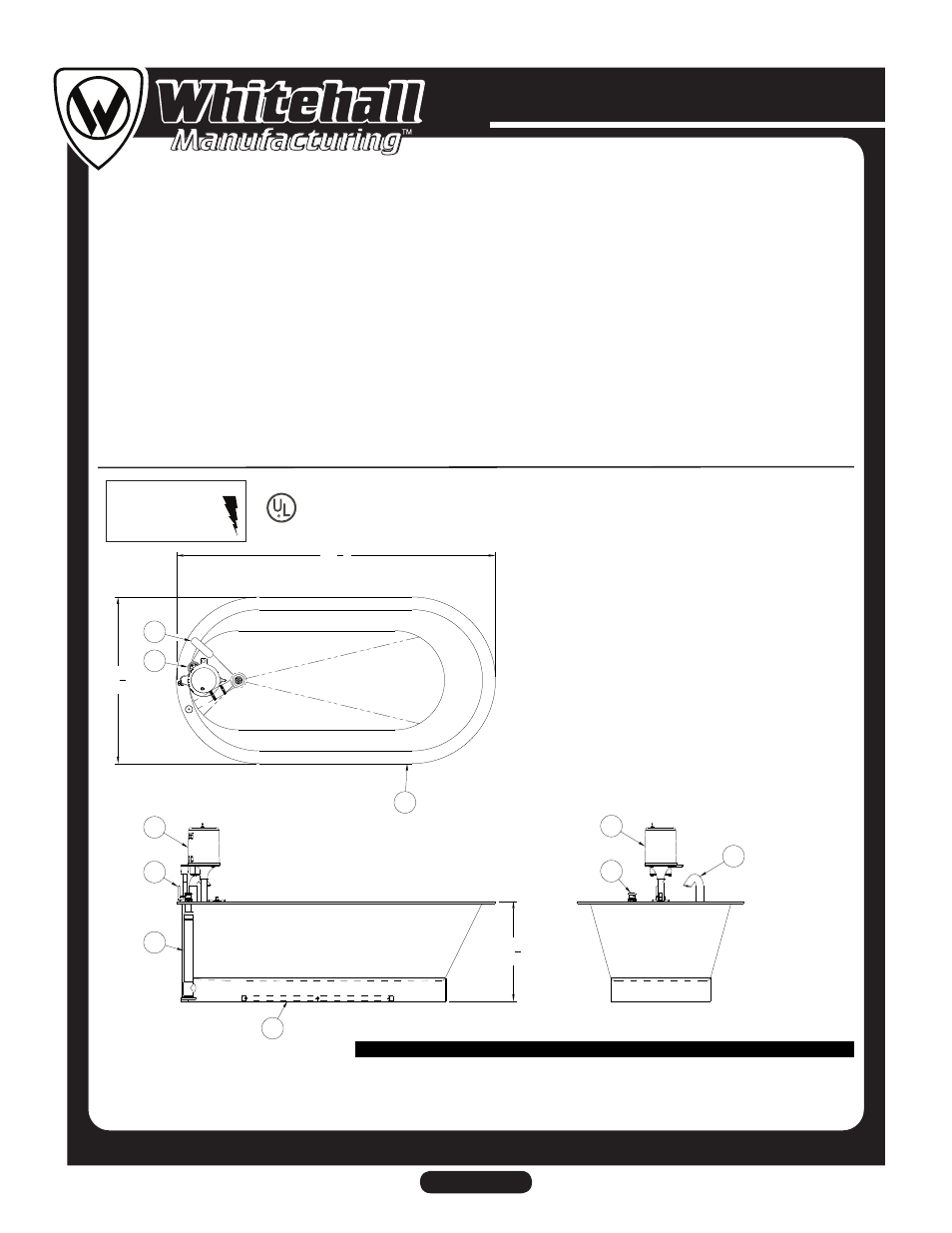

Slant Back Whirlpools
ALL DIMENSIONS ARE IN INCHES (MM)
SB-100-S
39
1
2
"
75
3
4
"
NOTES:
1. SLANT BACK WHIRLPOOL
2. FILLER SPOUT
3. THERMOMETER
4. 1/2" HP PUMP MOTOR
5. TURBINE RAISING & LOWERING DEVICE
6. DRAIN & OVERFLOW ASSEMBLY
7. FLOOR MOUNTING BRACKET ASSEMBLY
2
1
4
5
23
3
4
"
3
6
7
4
2
7
MODEL NUMBER AND OPTION SELECTIONS
o
o
o
o
o
o
o
o
-GFI
Ground Fault Interrupter
-MXT1
Thermostatic Mixing Valve (15 GPM)
-MXT2
Thermostatic Mixing Valve (25 GPM)
-MXTWH Washout Hose For MXT Valves
-PCS
Pump Cover Strainer
-SDO
Separate Drain and Overflow Assembly
Turbine rated at 115V, 60Hz; if 220V is required
please specify: 50Hz 60Hz
