MODEL AND OPTIONS SELECTION
BASE MODEL NUMBER
o
2142-T-2-EG10 Wall Outlet, Siphon Jet Toilet
o
2142-T-3-EG10_4.25 Floor Outlet, Siphon Jet Toilet, (Floor waste is 4-1/4” from wall to the center of waste outlet)
o
2142-T-3-EG10_10 Floor Outlet, Siphon Jet Toilet, (Floor waste is 10” from wall to the center of waste outlet)
o
2142-T-3-EG10_12 Floor Outlet, Siphon Jet Toilet, (Floor waste is 12” from wall to the center of waste outlet)
Optional Flush Valve Cover w/ Flush Valve (Must Specify):
o 2802SLPT-EG10-1.28 Ligature Resistant Flush Valve Cover With 1.28 GPF Flush Valve (White)
o 2802SLPT-EG10-1.6 Ligature Resistant Valve Cover With 1.6 GPF Flush Valve (White)
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING

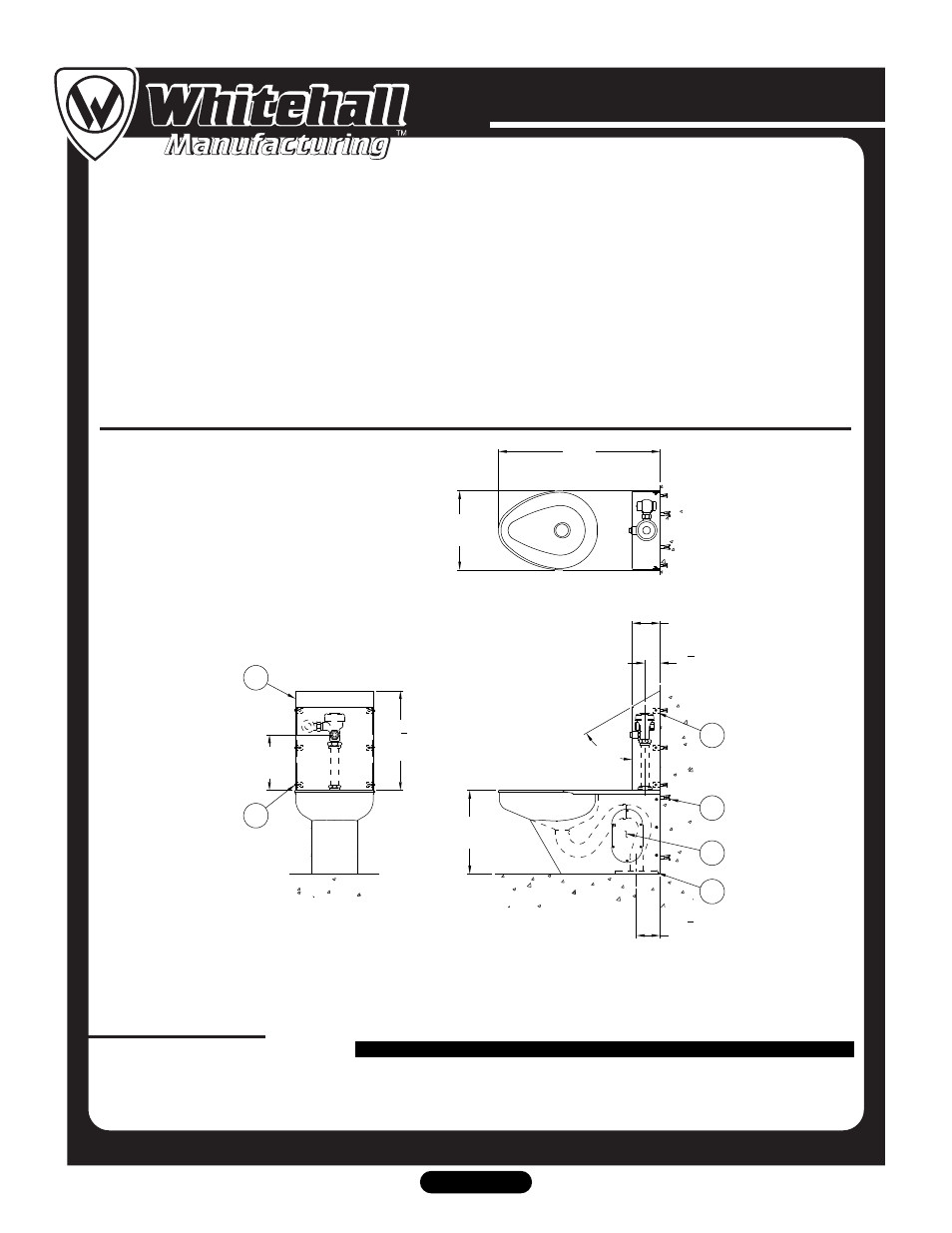

2142-T
60°"
14"
(356)
29"
(737)
10"
(254)
5"
(125)
17
7
8
"
(454)
15"
(381)
2
3
4
"
(70)
4
1
4
"
(114)
Shown
1
4
6
5
2
3
NOTES:
1. Optional Flush Valve Cover with
Flush Valve
2. Access Panel (Both Sides)
3. Toilet Floor Waste Outlet
4. Vandal Resistant Fasteners
5. Mounting Clips
6. Wall Anchors and Anchoring
Hardware By Others
MODEL# 2142-T-3-2802SLPT
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
superseded data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
