Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
Last Update: 09/25/13
MODEL NUMBER AND OPTIONS SELECTION
BASE MODEL NUMBER (Must Specify)
q 4060
Modulette , Wall Waste Outlet
q 4065 Modulette™, Floor Waste Outlet
TOILET ORIENTATION (Must Specify)
q -L
Left Hand Toilet
q -R Right Hand Toilet
Notes: L (Left) or R (Right) indicates toilet location
when facing the fixture.
Lavy is always located on side opposite the toilet.
FLUSH VALVE SELECTION
q -HET - 1.28 GPF
q -ULF - 1.6 GPF
q -3.5 GPF
COLOR SELECTION (Must Specify)
Countertop ____________ Cabinet ____________
PRODUCT OPTIONS (Must Specify)
q -AE
Aerator (on Gooseneck Spout)
q -BAT-SO Battery Operated (-SO)
q -BL
Bedpan Lugs
™
PRODUCT OPTIONS (cont.)
q -CCL
Corterra™ Solid Surface Countertop
w/ Integral Lavy, Specify Color: __________
q AMA Anti-Microbial Additive
q -CCT Corterra™ Solid Surface Countertop
Specify Color: __________
q AMA Anti-Microbial Additive
® q -CNCT Corian Countertop w/ Stn. Steel Lavy
® q -CNCTL Corian Countertop w/ Integral
Contrasting Colored Lavy Bowl
q -CS Stn. Steel Countertop w/ Integral Lavy
q -EC Ext. Countertop Specify Length: _______
q -EG Enviro-Glaze:
q Lavy
q Cabinet Interior
q Toilet Exterior Only
q Toilet Interior & Exterior
Specify Color: ____________
q -HET High Efficiency Toilet
q -LCT Less Countertop, Furnish Lavy & Valve
q -LCTL Less Countertop & Lavy Furnish Valve
q -LCTLV Less Countertop, Lavy & Valve
q -LFN Laminar Flow Nozzle
q -LLV Less Valve & Lavy, Furnish Countertop
q -LS Lavatory Hose Spray
q -LV Less Valve, Furnish Countertop & Lavy
q -MT Metal Template
q -OCP Optional Color Plastic Panels
Specify Color: ____________
q -OCR Optional Color Resin Countertop
Specify Color: ____________
q AMA Anti-Microbial Additive
q RT Roll Away Toilet Cover
q -SF Special Finish Specify Color: ____________
q -SO Sensor Operated Valve
q -SUG Swing Up Grab Bar
q -VF Concealed H & C Foot Pedal Operated
Air-Control Valve
-

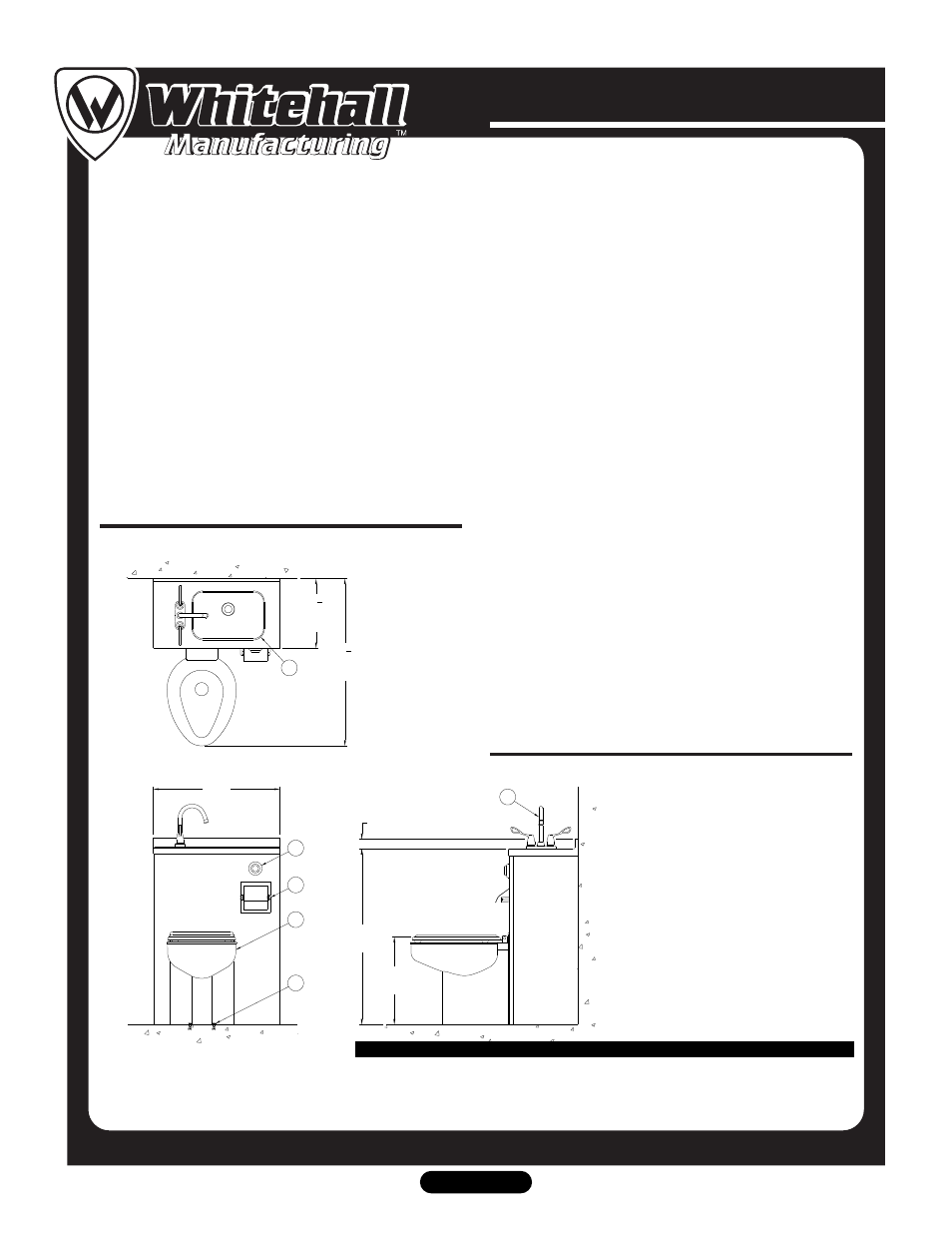

4060
® Care-Ware Bedside Patient
Care Units
1
2
3
4
5
6
14
1
4
"
(362)
34
1
4
"
(870)
26"
(660)
18"
(457)
36"
(914)
2"
(51)
NOTES:
1. Stainles Steel Lavatory
2. Flush Valve Pushbutton
3. Toilet Tisse Holder
4. Stainless Steel Toilet
5. Floor Anchors
6. Lavatory Gosseneck Faucet
MODEL# 4060/4065-L
