SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Please visit www.whitehallmfg.com
for most current specifications.
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
Last Update: 05/31/13
4101
SELECTION SERIES
-4101 Surgical Scrub Sink (1 Station)
MOUNTING
q -MC Mounting Carrier (Off-Floor Installation)
q -PB Pedestal Base (On-Floor Installation)
q
Product Options
-DTD Digital Time Display
q -ETC Electronic Timing Controller
q -EYW Eyewash
q -HTR Chronomite Instantaneous Water Heater
(Refer to Chronomite Labs at
http://chronomite.com for applications and sales
assistance, supplied by Chronomite for field
installation)
q -LFN Laminar Flow Nozzle
q -LM Light Module
q -PDM Metering Liquid Soap Dispenser
q -SFS Soap Flush System
q -SO Sensor Operated
q -SS Storage Shelf
q -SWV Swivel Nozzle on Gooseneck
q
Surgical Scrub Sinks
27"
(686)
32"
(813)
40"
(1016)
51
3
4
"
(1314)
35
3
4
"
(908)
24"
(610)

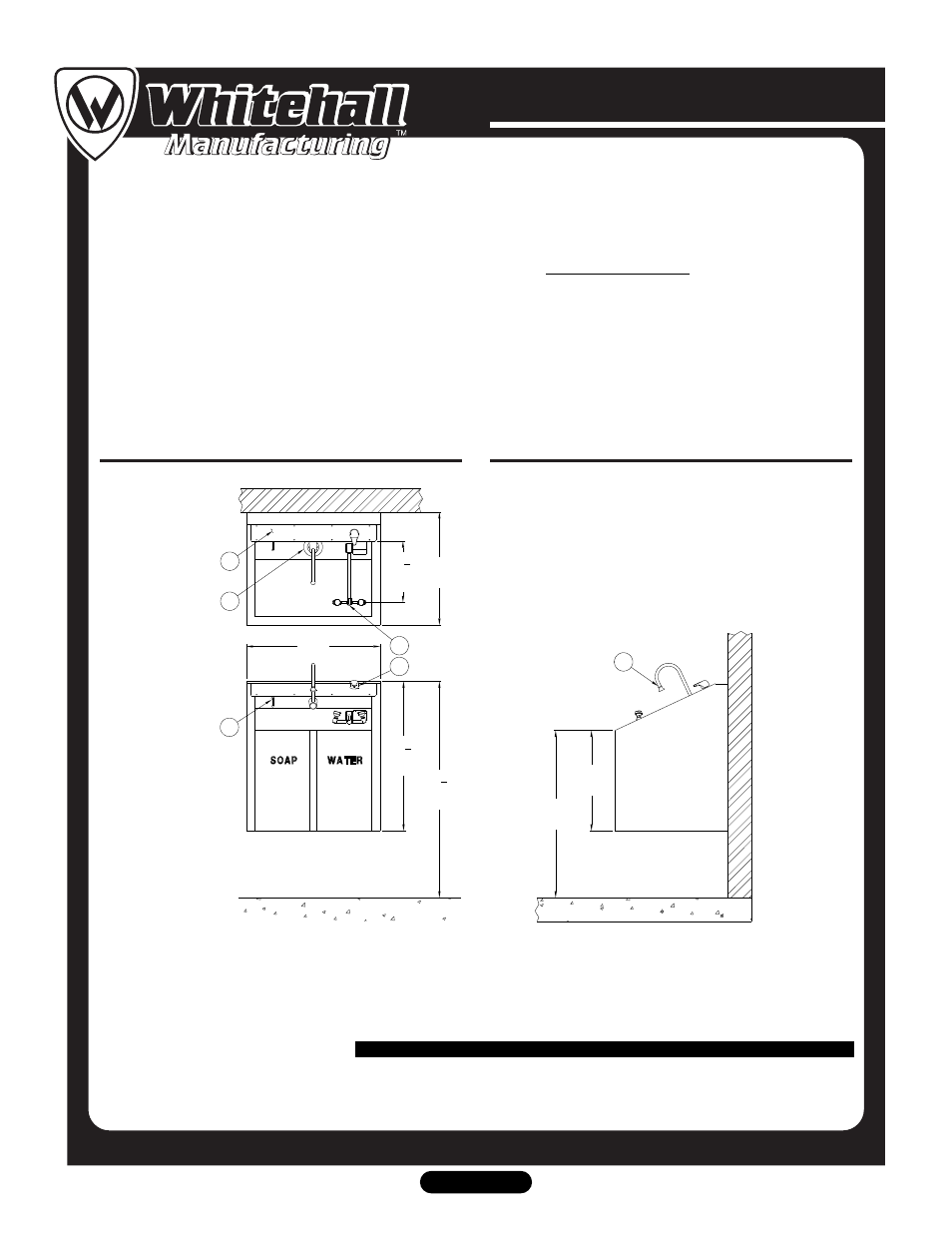

MODEL# 4101-EYW-LFN-PDM
1
5
3
2
4
6
NOTES:
1. Gooseneck Spout Assembly
2. Flat Strainer Drain.
3. Optional -PDM Soap Dispenser.
4. Control Panel.
5. T/P Mixing Valve.
6. Optional -EYW Eyewash
14
5
8
"
(371)
