4113
Surgical Scrub Sinks
BASE MODEL NUMBER
q -4113 Compact Surgical Scrub Sink (3 Station)
MOUNTING
q -MC Mounting Carrier
Product Options
q LH Station q RH Station
q CTR Station
q -HTR Chronomite Instantaneous Water Heater
(Refer to Chronomite Labs at
http://chronomite.com for applications and
sales assistance, supplied by Chronomite for
field installation)
q -LFN Laminar Flow Nozzle 1.5 GPM
q -SA
Splash Panel
q -SWV Swivel Nozzle on Gooseneck
q -EYW Eyewash
23"
(584)
4"
(102)
18"
(457)
40"
(1016)
RECOMMENDED
4"
(102)
90"
(2286)
26"
(660)

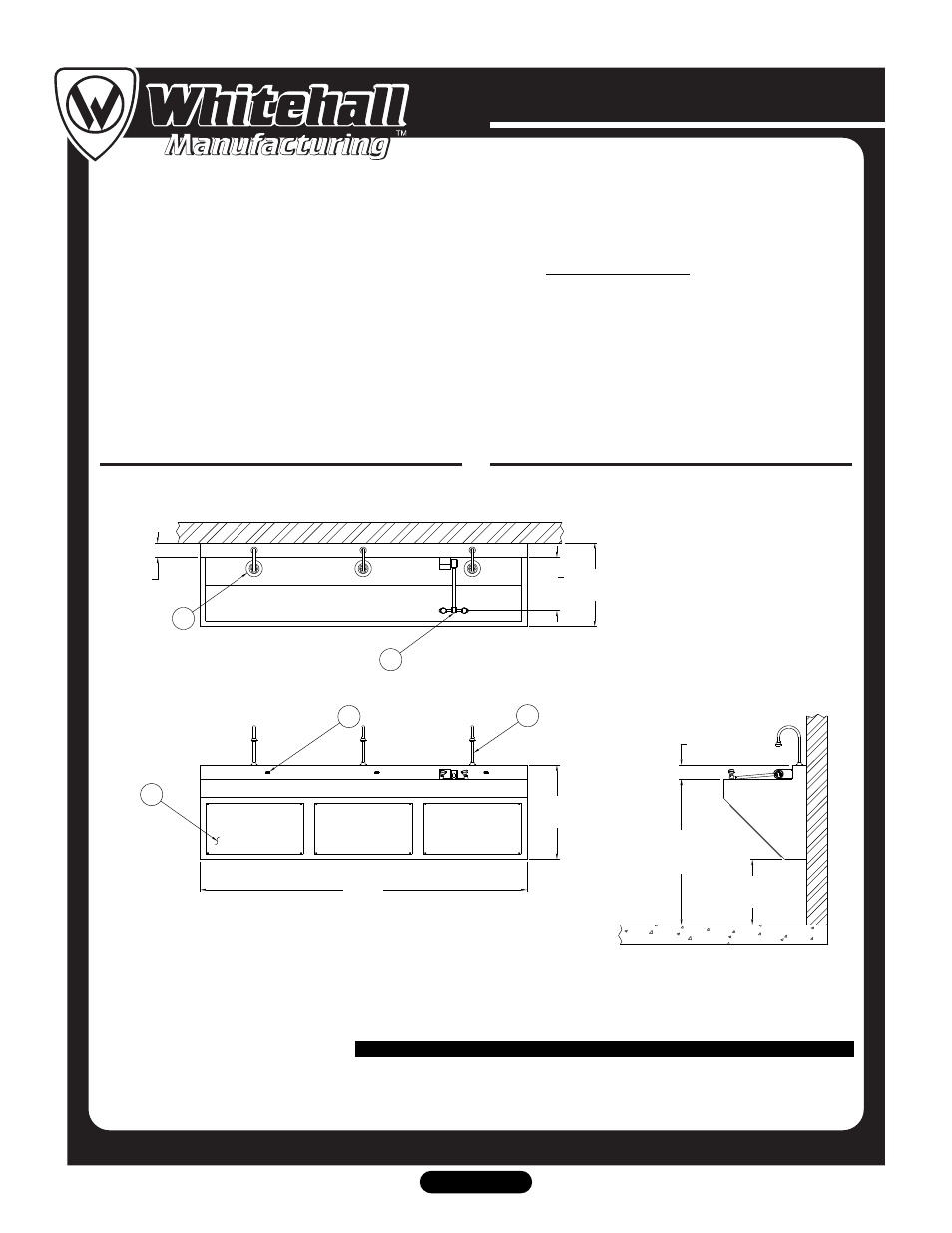

1. Gooseneck Spout Assembly.
NOTES:
4. Infrared Sensor.
5. Optional -EYW Eyewash
2. Flat Strainer Drain.
MODEL# 4113-MC-EYW_RH-LFN
1 4
2
3
3. Removable Access Panel.
5
14
5
8
"
(341)
