4151

Infection Prevention Sinks

BASE MODEL NUMBER
q -4151 ADA/OBC Compliant Infection Prevention Sink

INFECTION PREVENTION FAUCETS
q

-9

Without Valve (Specify Drilling)
q

-H1

Single Hole Centered

q

-H34 Three Holes 4” Centerset

(1-5/16” diameter holes)

q

-CSG Centerset with Gooseneck Spout, Wrist Blade

Handles and Laminar Flow Spout

q

-SO

Sensor Operation Gooseneck Faucet with
Battery Backup and Laminar Flow Spout

Disclaimer: The faucet options listed are
specifically designed to minimize splash. Whitehall
Manufacturing will not be liable for any splashing
that occurs if faucets other than Whitehall
Infection Control Faucets are used.

PRODUCT OPTIONS
q

-HTR Chronomite Instantaneous Water Heater

(For Remote Location)
(Refer to Chronomite Labs at
http://chronomite.com for applications and
field installation)

q

-TE

Trap Enclosure

q

-TP

ASSE Compliant Temperature/Pressure
Balancing Mixing Valve

q

-TPT

Tubular P-Trap

Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862

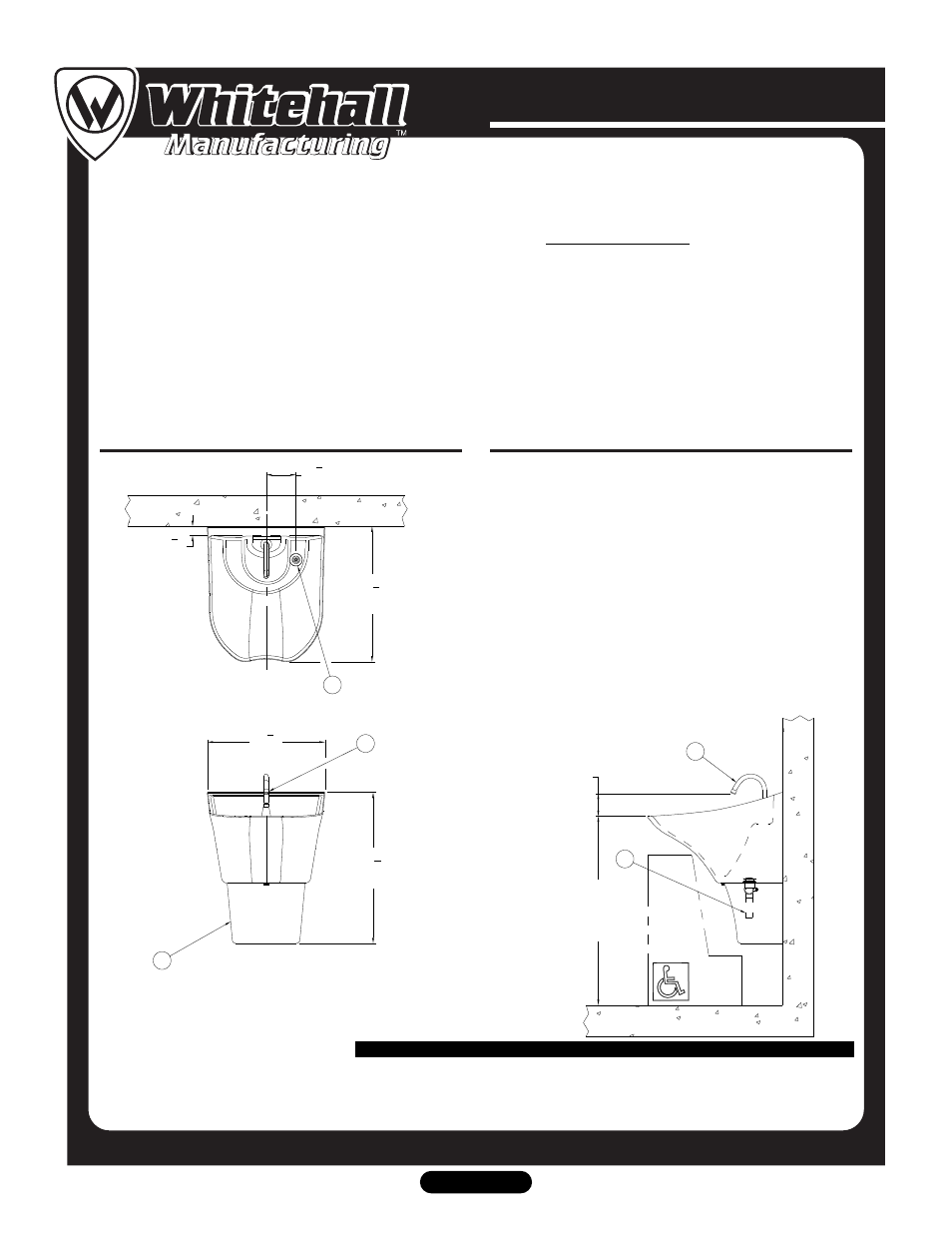

NOTES:

1. Optional -SO Sensor

Gooseneck Faucet
2. Daisy Pattern Strainer

3. Optional -TE Trap Enclosure
4. 1-1/4" NPSE Grid Strainer

w/ Close Elbow and 1-1/4" O.D.
Tailpiece Provided

5

3
8

"

(137)

1

5
8

"

(41)

24

1
4

"

(616)

2

21

1
4

"

(540)

27

1
4

"

(692)

34" ADA

(864)

33" OBC

(838)

4"

(102)

1

4

3

MODEL# 4151-SO
