® Care-Ware Bedside Patient
Care Units
MODEL NUMBER AND OPTIONS SELECTION
BASE MODEL NUMBER (Must Specify)
q 4042
Versalette™ - 41" Wide with Multi-Sided Lavy
TOILET MOUNTING AND WASTE (Must Specify)
q -OFFW Off-Floor, Wall Outlet
q -ONFF On-Floor, Floor Outlet
q -ONFW On-Floor, Wall Outlet
TOILET ORIENTATION (Must Specify)
q -L
Left Hand Toilet
q -R Right Hand Toilet
Note: L (Left) or R (Right) indicates hinged Cabinet
location in opened position when facing the fixture.
Lavy is always located on side opposite the toilet.
BACKSPLASH ORIENTATION (Must Specify)
q -1
Back Wall Only (One Wall)
q -2 Right Hand Corner (Two Wall)
q -3 Left Hand Corner (Two Wall)
q -4 Alcove (Three Wall)
FLUSH VALVE SELECTION
q -HET - 1.28 GPF
q -ULF - 1.6 GPF
q -3.5 GPF
COLOR SELECTION (Must Specify)
Countertop ____________ Cabinet ____________
PRODUCT OPTIONS (Must Specify)
q -AE
Aerator (on Gooseneck Spout)
q -BAT-SO Battery Operated (-SO)
q -BL
Bedpan Lugs
q -BWD Bedpan Washer Drain
q -CCL Corterra™ Solid Surface Countertop
w/ Integral Lavy, Specify Color: _________
q AMA Anti-Microbial Additive
q -CCT Corterra™ Solid Surface Countertop
Specify Color: ___________
q AMA Anti-Microbial Additive
® q -CNCT Corian Coutertop w/ Stn. Steel Lavy
q -CS Stn. Steel Countertop w/ Integral Lavy
q -DB1 Hemo-Dialysis Box, Single Valve
q -DB2 Hemo-Dialysis Box, Dual Valve
q -EC Extended Countertop
Specify Length: ____________
q -EG Enviro-Glaze:
q Lavy
q Toilet Exterior Only
q Toilet Interior & Exterior
Specify Color: ____________
q -LCT Less Countertop, Furnish Lavy & Valve
q -LCTL Less Countertop & Lavy, Furnish Valve
q -LCTLV Less Countertop, Lavy & Valve
q -LFN Laminar Flow Nozzle
q -LLV Less Lavy & Valve, Furnish Countertop
q -LS Lavatory Hose Spray
q -LV Less Valve, Furnish Countertop & Lavy
q -MT Metal Template
q -OCP Optional Color Plastic Panels
Specify Color: ____________
q -OCR Optional Color Resin Countertop
Specify Color: ____________
q AMA Anti-Microbial Additive
q -SF Special Finish Specify Color: ____________
q -SO Sensor Operated Valve
q -SUG Swing Up grab Bar
q -VF Concealed H & C Foot Pedal Operated
Air-Control Valve

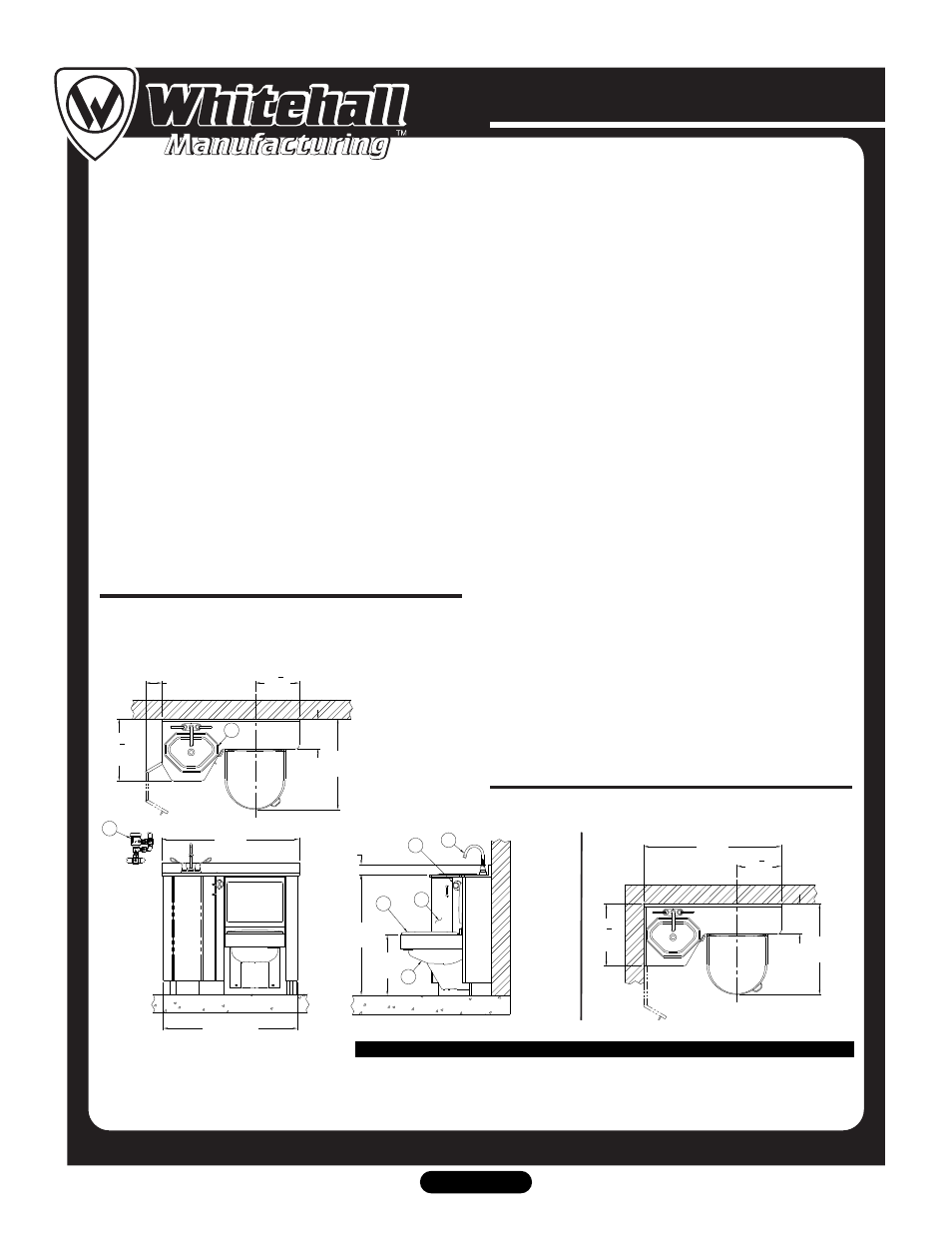

4042
1
2
4
5
6
18"
(457)
36"
(914)
3"
(76)
7
41"
(1041)
40" Cabinet
(1016)
NOTES:
1. Lavatory Gooseneck Faucet
2. Flush Valve Pushbutton
3. Stainless Steel Lavatory
4. Stainless Steel Toilet
5. Bedpan Washer Compartment
6. Pivoting Padded Toilet Cover
7. Elevated Vacuum Breaker (By Others)
MODEL# 4042-R-3
41"
(1041)
18
1
2
"
(470)
CL
13
1
4
"
(336)
9"
(229)
27"
(686)
3
18
1
2
"
(470)
6" Min.
(152)
CL
13
1
4
"
(336)
9"
(229)
27"
(686)
MODEL# 4042-R-1
