Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
Last Update: 09/25/13
PRODUCT OPTIONS (Must Specify)
p -AE
Aerator (on Gooseneck Spout)
p -BAT-SO Battery Operated (-SO)
p -BL
Bedpan Lugs
p -BWD Bedpan Washer Drain
p -CCL Corterra™ Solid Surface Countertop
w/ Integral Lavy, Specify Color: _________
q AMA Anti-Microbial Additive
® p -CNCT Corian Countertop w/ Stn. Steel Lavy
® p -CNCTL Corian Countertop w/ Integral
Contrasting Colored Lavy Bowl
p -CS Stainless Steel Countertop
p -DB1 Hemo-Dialysis Box, Single Valve
p -DB2 Hemo-Dialysis Box, Dual Valve
p -EC Extended Countertop
p -EG Enviro-Glaze:
p Lavy
p Toilet Exterior Only
p Toilet Interior & Exterior
Specify Color: ___________
p -HET High Effeciency Toilet
p -LCT Less Countertop, Furnish Lavy & Valve
p -LCTL Less Countertop & Lavy, Furnish Valve
p -LCTLV Less Countertop, Lavy & Valve
p -LFN Laminar Flow Nozzle
p -LLV Less Lavy & Valve, Furnish Countertop
p -LS Lavatory Hose Spray
p -LV Less Valve, Furnish Countertop & Lavy
p -MT Metal Template
p -OCP Optional Color Plastic Panels
Specify Color: ___________
p -OCR Optional Color Resin Countertop
Specify Color: ___________
q AMA Anti-Microbial Additive
p -SF Special Finish Specify Color: __________
p -SO Sensor Operated Valve
p -SUG Swing Up Grab Bar
p -VF Concealed Hot 7 Cold Foot Pedal
Operated Air Control Valve
MODEL NUMBER AND OPTIONS SELECTION
BASE MODEL NUMBER (Must Specify)
p 4047
Versalette™ - 40" Wide
TOILET ORIENTATION (Must Specify)
p -L
Left Hand Toilet
p -R Right Hand Toilet
NOTES: L (Left) or R (Right) indicates toilet location
in opened position when facing the fixture.
Lavy is always located on side opposite the toilet.
TOILET WASTE (Must Specify)
p -OFFW Off-Floor, Wall Outlet
p -ONFF
On-Floor, Floor Outlet
p -ONFW On-Floor, Wall Outlet
BACKSPLASH ORIENTATION (Must Specify)
p -1
Back Wall Only (One Wall)
p -2 Right Hand Corner (Two Wall)
p -3 Left Hand Corner (Two Wall)
p -4 Right & Left Hand Corner (Three Wall)
FLUSH VALVE SELECTION
p -HET-1.28 GPF
p -ULF-1.6 GPF
p -3.5 GPF
COLOR SELECTION (Must Specify)
Countertop ____________ Cabinet ____________
4047
® Care-Ware Bedside Patient
Care Units

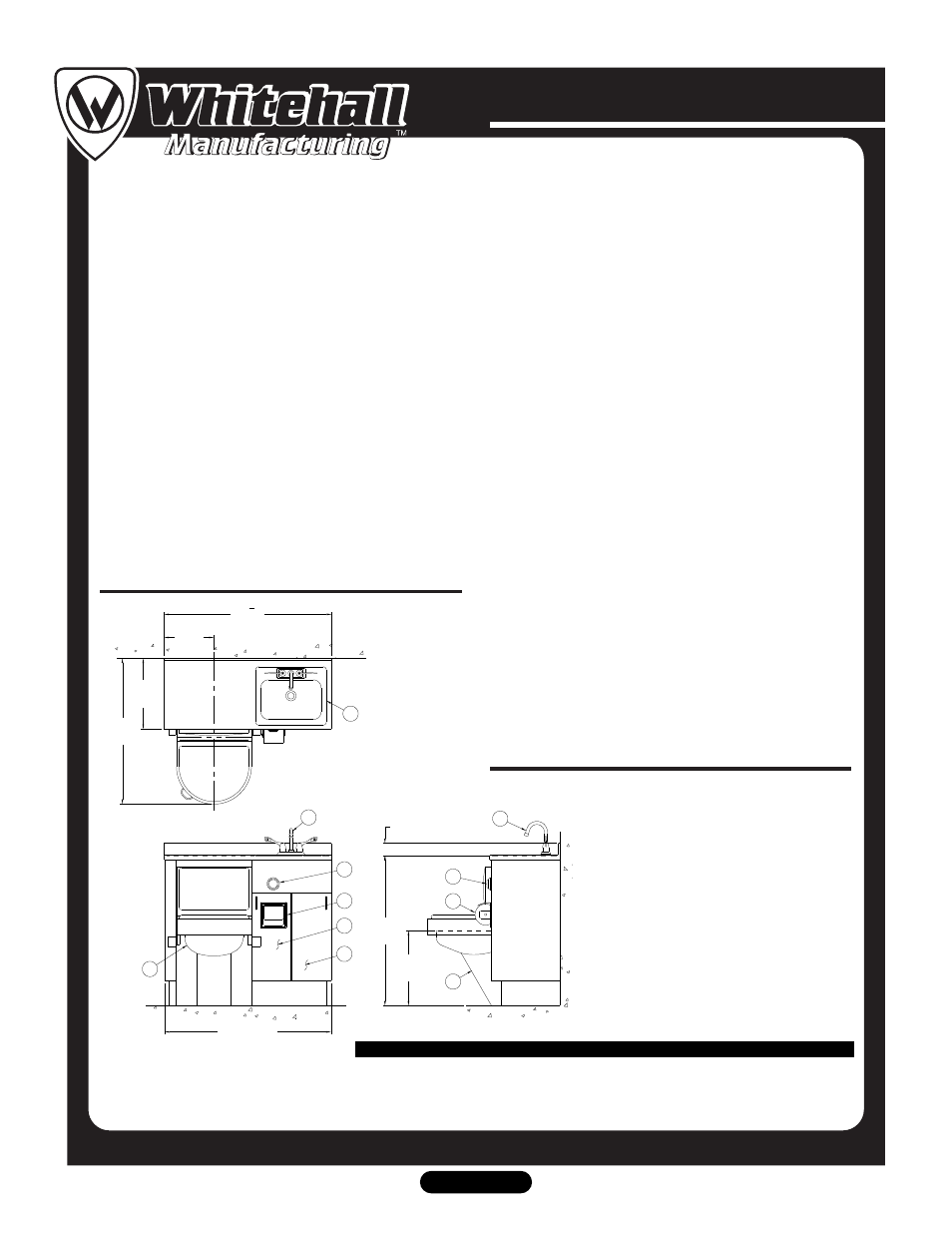

MODEL #4047-L-1
Stainless Steel Basin
Flush Valve Pushbutton
Gooseneck Spout w/ Wrist Blade Handles
1.
2.
3.
6.
5.
4.
Stainless Steel Floor Mounted Toilet
Toilet Paper Holder
Bedpan Washer Compartment
NOTES:
17"
(432)
35"
(889)
12"
(305)
18"
(457)
3 3
5 5
2
2
4
1
6
6
7
7. Dialysis Box Compartment
40" Cabinet
(1016)
36"
(914)
3"
(76)
40
1
4
"
(1022)
