SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
Last Update: 12/06/13
4048
MODEL NUMBER AND OPTIONS SELECTION
BASE MODEL NUMBER (Must Specify)
o 4048
Versalette™ - 58-7/8" Wide with "D" Basin
TOILET MOUNTING AND WASTE (Must Specify)
o -OFFW Off-Floor, Wall Outlet
o -ONFF On-Floor, Floor Outlet
o -ONFW On-Floor, Wall Outlet
TOILET ORIENTATION (Must Specify)
o -L
Left Hand Toilet
o -R Right Hand Toilet
NOTES: L (Left) or R (Right) indicates toilet location
in opened position when facing the fixture.
Lavy is always located on side opposite the toilet.
BACKSPLASH ORIENTATION (Must Specify)
o -1
Back Wall Only (One Wall)
o -2 Right Hand Corner (Two Wall)
o -3 Left Hand Corner (Two Wall)
o -4 Alcove (Three Wall)
FLUSH VALVE SELECTION
o -HET-1.28 GPF
o -ULF-1.6 GPF
o -3.5 GPF
COLOR SELECTION (Must Specify)
Product Options (Must Specify)
q -AE
Aerator (on Gooseneck Spout)
o -BAT-SO Battery Operated (-SO)
o -BL Bedpan Lugs
o -BWD Bedpan Washer Drain
Countertop ____________ Cabinet ____________
Product Options (cont.)
o -CCL
Corterra™ Solid Surface Countertop
w/ Integral Lavy, Specify Color: _________
q AMA Anti-Microbial Additive
® o -CNCT Corian Countertop w/ Stn. Steel Lavy
® o -CNCTL Corian Countertop w/ Integral
Contrasting Colored Lavy Bowl
o -CS Stainless Steel Countertop w/ Int. Lavy
o -DB1 Hemo-Dialysis Box, Single Valve
o -DB2 Hemo-Dialysis Box, Dual Valve
o -EC Extended Countertop
o -EG Enviro-Glaze:
o Lavy
o Cabinet Interior
o Toilet Exterior Only
o Toilet Interior & Exterior
Specify Color: ___________
p -HET High Effeciency Toilet
o -LCT Less Countertop, Furnish Lavy & Valve
o -LCTL Less Countertop & Lavy, Furnish Valve
o -LCTLV Less Countertop, Lavy & Valve
o -LFN Laminar Flow Nozzle
o -LLV Less Lavy & Valve, Furnish Countertop
o -LS Lavatory Hose Spray
o -LV Less Valve, Furnish Countertop & Lavy
o -MT Metal Template
o -OCP Optional Color Plastic Panels
Specify Color: ___________
o -OCR Optional Color Resin Countertop
Specify Color: ___________
q AMA Anti-Microbial Additive
o -PE Plain End Toilet Waste Outlet
o -SF Special Finish Specify Color: ___________
o -SO Sensor Operated Valve
o -SS Storage Shelf
o -SUG Swing Up Grab Bar
® Care-Ware Bedside Patient
Care Units
2
5

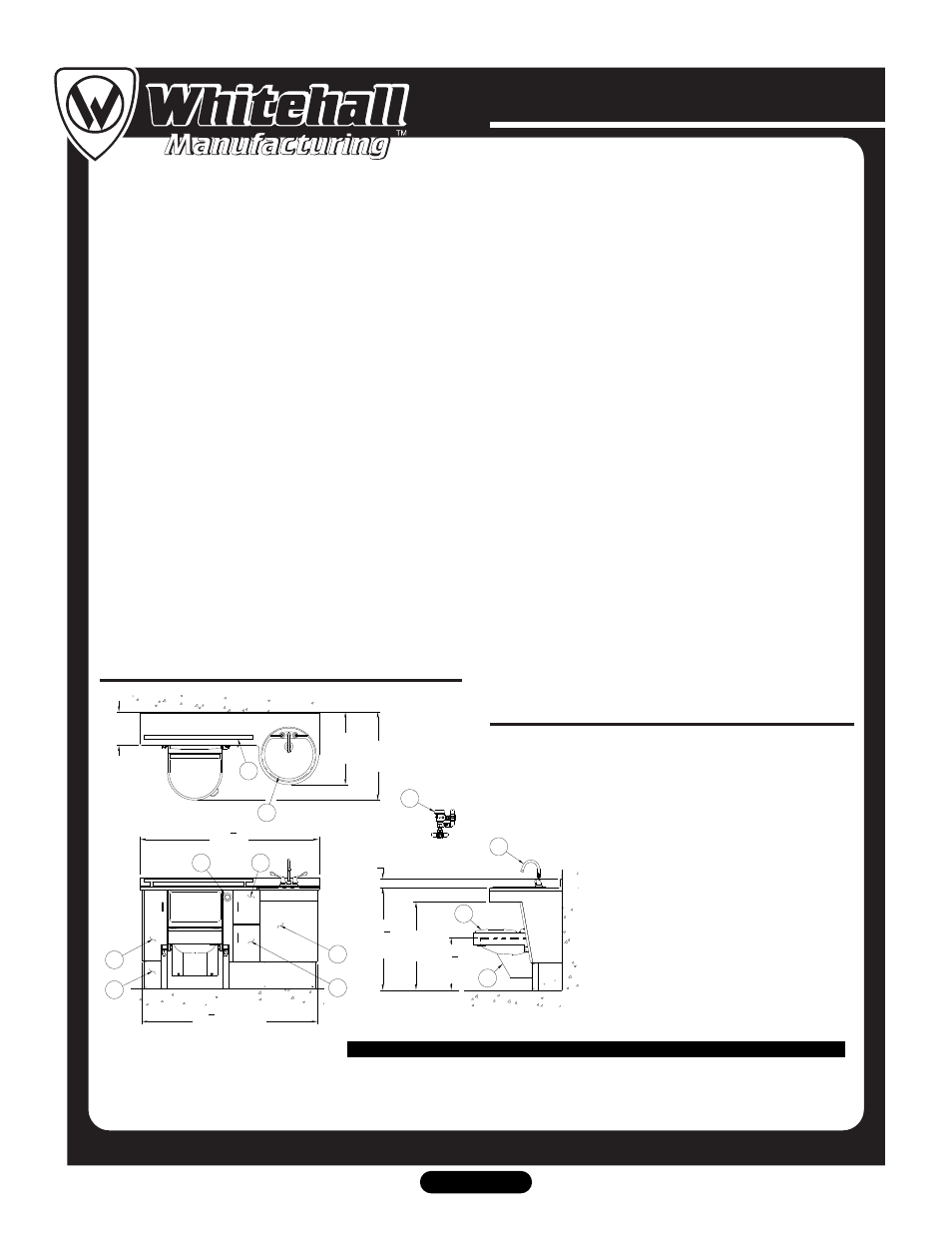

MODEL # 4048-L-1
3
6
11
7
9
1
4
8
12
58
7
8
"
(1496)
10
24"
(610)
29"
(737)
11"
(279)
17
1
4
"
(438)
29"
(737)
33
3
4
"
(857)
3"
(76)
NOTES:
1.
2.
3.
4.
5.
6.
7.
8.
Compartment
9.
10.
11.
12.
Lavatory Gooseneck w/ Wrist Blade Faucet
Flush Valve Pushbutton
Stainless Steel Lavatory
Stainless Steel Toilet
Bedpan Washer Compartment
Paper Holder Compartment
Plumbing Access Compartment
Storage or Optional -DB Dialysis
Removable Hinged Padded Toilet Cover
36" Minimum Stainless Steel Grab Bar
Stainless Steel Kick Panel
Elevated Vacuum Breaker (By Others)
57
3
4
" Cabinet
(1467)
