Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
Last Update: 12/06/13
MODEL NUMBER AND OPTIONS SELECTION
BASE MODEL NUMBER (Must Specify)
q 4049
Versalette™ - 47" Wide
TOILET ORIENTATION (Must Specify)
q L
Left Hand Toilet
q -R Right Hand Toilet
NOTES: L (Left) or R (Right) indicates toilet location
in opened position when facing the fixture.
Lavy is always located on side opposite the toilet.
TOILET WASTE (Must Specify)
p -OFFW Off-Floor, Wall Outlet
p -ONFF
On-Floor, Floor Outlet
p -ONFW On-Floor, Wall Outlet
BACKSPLASH ORIENTATION (Must Specify)
q 1
Back Wall Only (One Wall)
q -2 Right Hand Corner (Two Wall)
q -3 Left Hand Corner (Two Wall)
q -4 Right & Left Hand Corner (Three Wall)
FLUSH VALVE SELECTION
q -HET - 1.28 GPF
q -ULF - 1.6 GPF
q -3.5 GPF
COLOR SELECTION (Must Specify)
-
-
Countertop ____________ Cabinet ____________
PRODUCT OPTIONS (Must Specify)
q -AE
Aerator (on Gooseneck Spout)
q -BAT-SO Battery Operated (-SO)
q -BL
Bedpan Lugs
q -BWD Bedpan Washer Drain
q -CCL Corterra™ Solid Surface Countertop
w/ Integral Lavy, Specify Color: _________
q AMA Anti-Microbial Additive
® q -CNCT Corian Countertop w/ Stn. Steel Lavy
® q -CNCTL Corian Countertop w/ Integral
Contrasting Colored Lavy Bowl
q -CS Stn. Steel Countertop w/ Intergral Lavy
q -DB1 Hemo-Dialysis Box, Single Valve
q -DB2 Hemo-Dialysis Box, Dual Valve
q -EC Extended Countertop
q -EG Enviro-Glaze:
q Lavy
q Toilet Exterior Only
q Toilet Interior & Exterior
Specify Color: ___________
q -GB 23" Grab Bar
q -HET High Efficiency Toilet
q -LCT Less Countertop,Furnish Lavy & Valve
q -LCTL Less Countertop & Lavy, Furnish Valve
q -LCTLV Less Countertop, Lavy & Valve
q -LFN Laminar Flow Nozzle
q -LLV Less Lavy & Valve w/ Countertop
q -LS Lavatory Hose Spray
q -LV Less Valve, Furnish Countertop & Lavy
q -MT Metal Template
q -OCP Optional Color Plastic Panels
Specify Color: ___________
q -OCR Optional Color Resin Countertop
Specify Color: ___________
q AMA Anti-Microbial Additive
q -SF Special Finish Specify Color: ___________
q -SO Sensor Operated Valve
q -SUG Swing Up Grab Bar
q -VF Concealed Hot & Cold Foot Pedal
Operated Air-Control Valve
4049
® Care-Ware Bedside Patient
Care Units

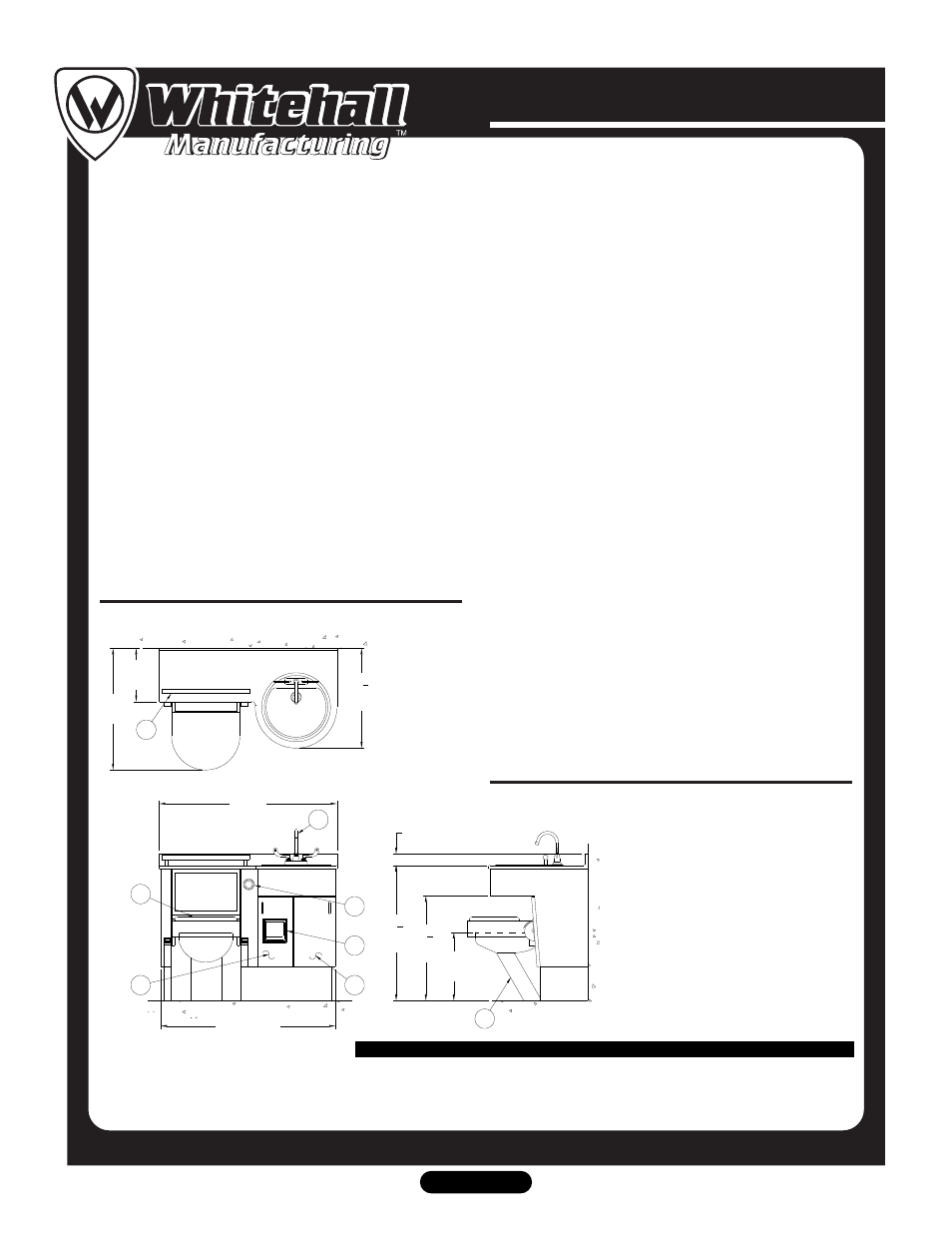

MODEL #4049-L-1
26
1
4
"
(670)
47"
(1195)
35
5
8
"
(905)
32"
(815)
14"
(355)
3"
(75)
27
5
8
"
(700) 18"
(455)
1
4 3
2
5
8
6
7
NOTES:
Optional -GB 23" Grab Bar
Padded Hinged Seat Cover
Optional -DB Hemo-Dialysis Compartment
Bedpan Washer Compartment
Paper Holder
Stainless Steel Toilet
Gooseneck Spout w/ Wrist Blade Handles
Flush Valve Pushbutton
5.
4.
3.
2.
1.
6.
7.
8.
Or Storage Compartment
46" Cabinet
(1168)
