Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
PRODUCT OPTIONS (Must Specify)
-AE Aerator (on Gooseneck Spout)
-BAT-SO Battery Operated (-SO)
-BL
Bedpan Lugs
-BW Bedpan Washer (Built-In)
® -CCL Corterra Solid Surface Countertop
w/ Integral Lavy, Specify Color: ______________
AMA Anti-Microbial Additive
® -CCT Corterra Solid Surface Countertop
Specify Color: ______________
AMA Anti-Microbial Additive
® -CNCT Corian Countertop w/ Stainless Steel Lavy
® -CNCTL Corian Countertop w/ Integral
Contrasting Colored Lavy Bowl
-CS Stainless Steel Countertop w/ Integral Lavy
-DB1 Hemo-Dialysis Box, Single Valve
-DB2 Hemo-Dialysis Box, Dual Valve
-EC Extended Countertop Specify Length: _______
-EG Enviro-Glaze: Specify Color: ______________
Lavy Cabinet Interior
Toilet Exterior Only Toilet Interior & Exterior
-EP Exposed Paper Holder
-FCI Infectious Control Flush with Exposed Paper
Holder
-LCT Less Countertop, Furnish Lavy & Valve
-LCTL Less Countertop & Lavy, Furnish Valve
-LCTLV Less Countertop, Lavy & Valve
-LFN Laminar Flow Nozzle
-LLV Less Lavy & Valve, Furnish Countertop
-LS Lavatory Hose Spray
-LV Less Valve, Furnish Countertop & Lavy
-MT Metal Template
-OCP Optional Color Plastic Panels
Specify Color: ______________
-OCR Optional Color Resin Countertop
Specify Color: ______________
AMA Anti-Microbial Additive
-SF Special Finish Specify Color: ______________
-SO Sensor Operated Valve
-SS Storage Shelf
-SUG Swing Up Grab Bar
-VF Concealed H & C Foot Pedal
Operated Air-Control Valve
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q q
q q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
MODEL NUMBER AND OPTIONS SELECTION
BASE MODEL NUMBER (Must Specify)
4010 Swivette™ Free-Standing, Back Wall Waste Outlet
4012 Swivette™ Free-Standing, Side Wall Waste Outlet
4015 Swivette™ Free-Standing, Floor Waste Outlet
Note: Side wall outlet is only available on the toilet side of
fixture.
TOILET ORIENTATION (Must Specify)
-L Left Hand Toilet -R Right Hand Toilet
Notes: L (Left) or R (Right) indicates toilet location in opened
position when facing the fixture. Lavy is always located on side
opposite the toilet.
BACKSPLASH/CABINET ORIENTATION
(Must Specify)
-1 Back Wall Only (One Wall)
-2 Right Hand Corner (Two Wall)
-3 Left Hand Corner (Two Wall)
-4 Alcove (Three Wall)
FLUSH VALVE SELECTION
-HET - 1.28 GPF
-ULF - 1.6 GPF
-3.5 GPF
COLOR SELECTION (Must Specify)
Countertop ________________ Cabinet _________________
q
q
q
q q
q
q
q
q
q
q
q
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data
© Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
® Care-Ware Bedside Patient
Care Units
4010
Last Update: 09/25/13
34
5
8
"
(879)
36"
(914)
36"
(914)
35"
(889)
38
1
8
"
(968)
38" Cabinet
(965)
19"
(483)
17
3
4
"
(451)
17"
(432)

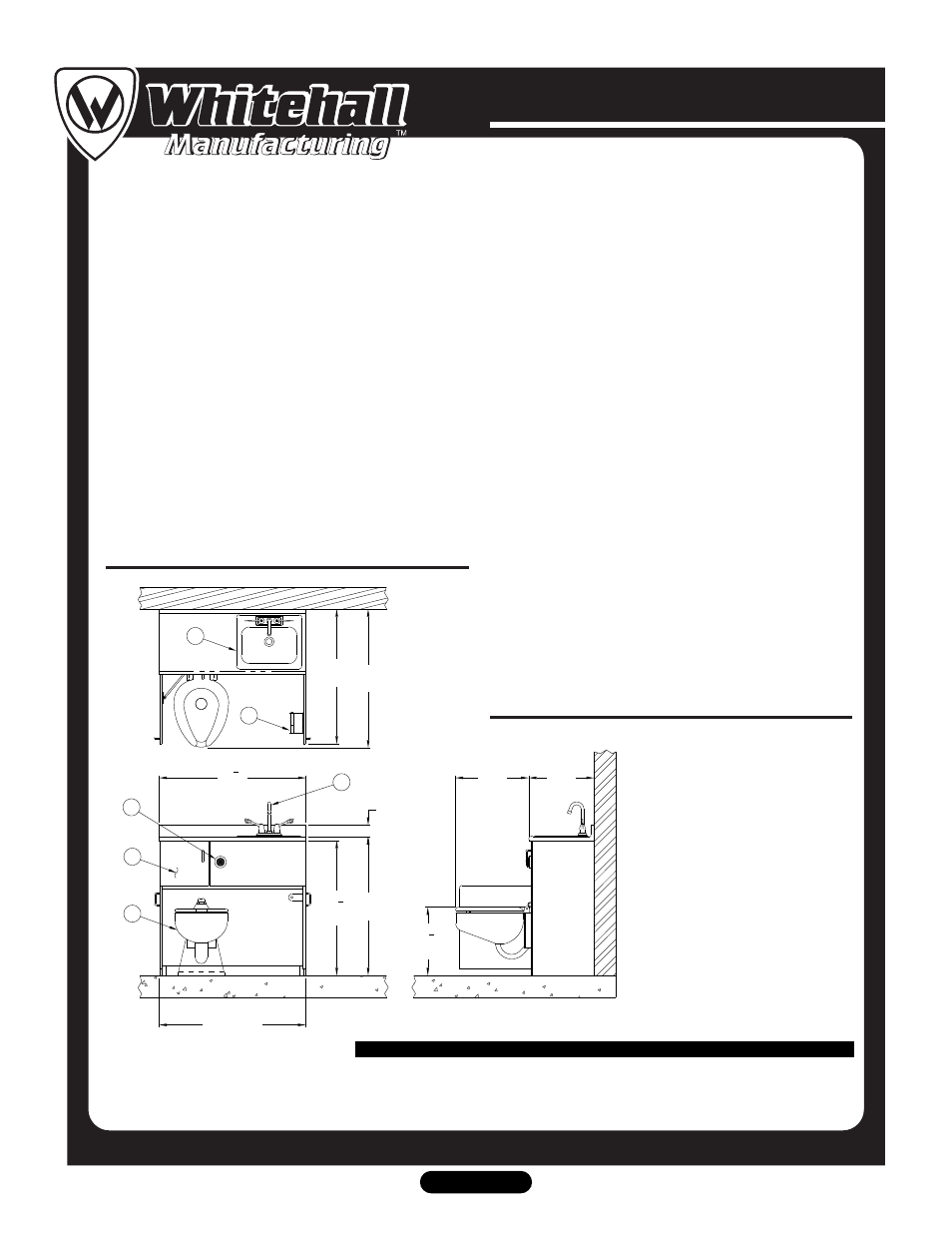

MODEL# 4010/4015-L-1 Series
NOTES:
1.
2.
1
3
6
3.
5.
4.
6.
3"
(76)
2
5
4
Toilet Tissue Holder
Stainless Steel Toilet
Storage Compartment
Stainless Steel Lavatory
Flush Valve Pushbutton
Lavatory Gooseneck Faucet
