Pb-120 brake, Armature view, Customer shall maintain – Warner Electric PB-120, PB-170, PB-250, PB-400 User Manual

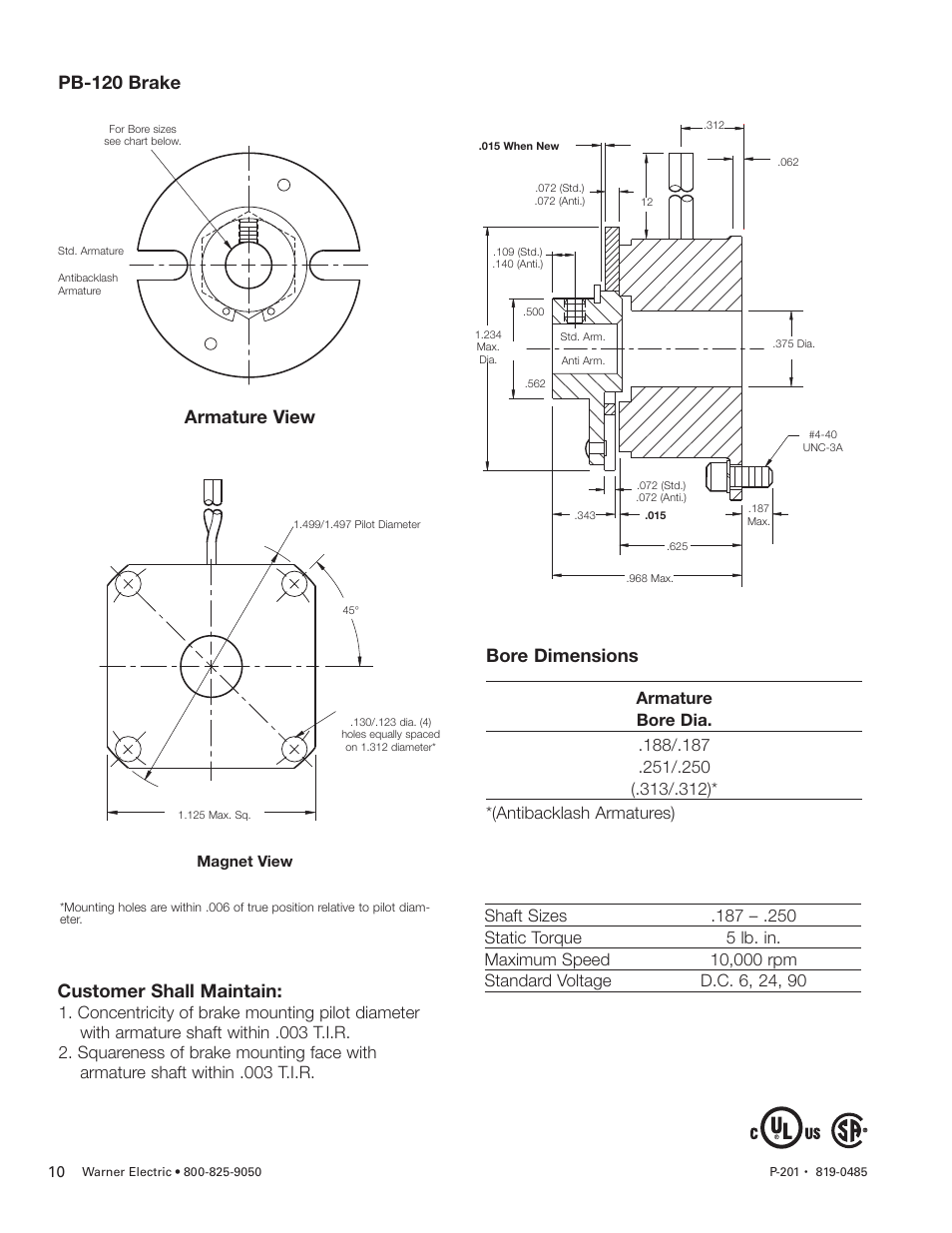

Page 10: Bore dimensions
