6040-448-017 Switch Programming
SW 1 Always Closed
SW 2 Open: Pulse Control
Closed: Level Control for Start/Stop at Terminal 1
SW 3 Not Used
SW 4 Always Closed
ON
ON
ON ON
ON
CH 1
CH 2
START
INH
STOP
OUTPUTS
SWITCHING SIGNALS
COMPONENT AREA 5.000
(124)
MAX.
8.000
(203.2)
7.200
(182.9)
.400
(10.2)
.300
(7.6)
LED IN
CH 1
DELAY
DELAY
CH 2
CH 1 OEX
CH 2 OEX
CH 1 S. S.
CH 2 S. S.
TERMINAL STRIP
LOGIC BOARD
(OPTIONAL)
LEDʼS
CH 1 OEX
CH 2 OEX
CH 1
CH 2
(OPTIONAL)
UP
UNIT TO BE
MOUNTED IN THIS
DIRECTION ONLY
FUSE
120/140 VAC
SWITCH
.220
(5.6) 4 PLACES
11.500
(292.1)
10.900
(276.9)
DIMENSIONS IN (000) ARE IN MM.
REGULATOR
BOARD

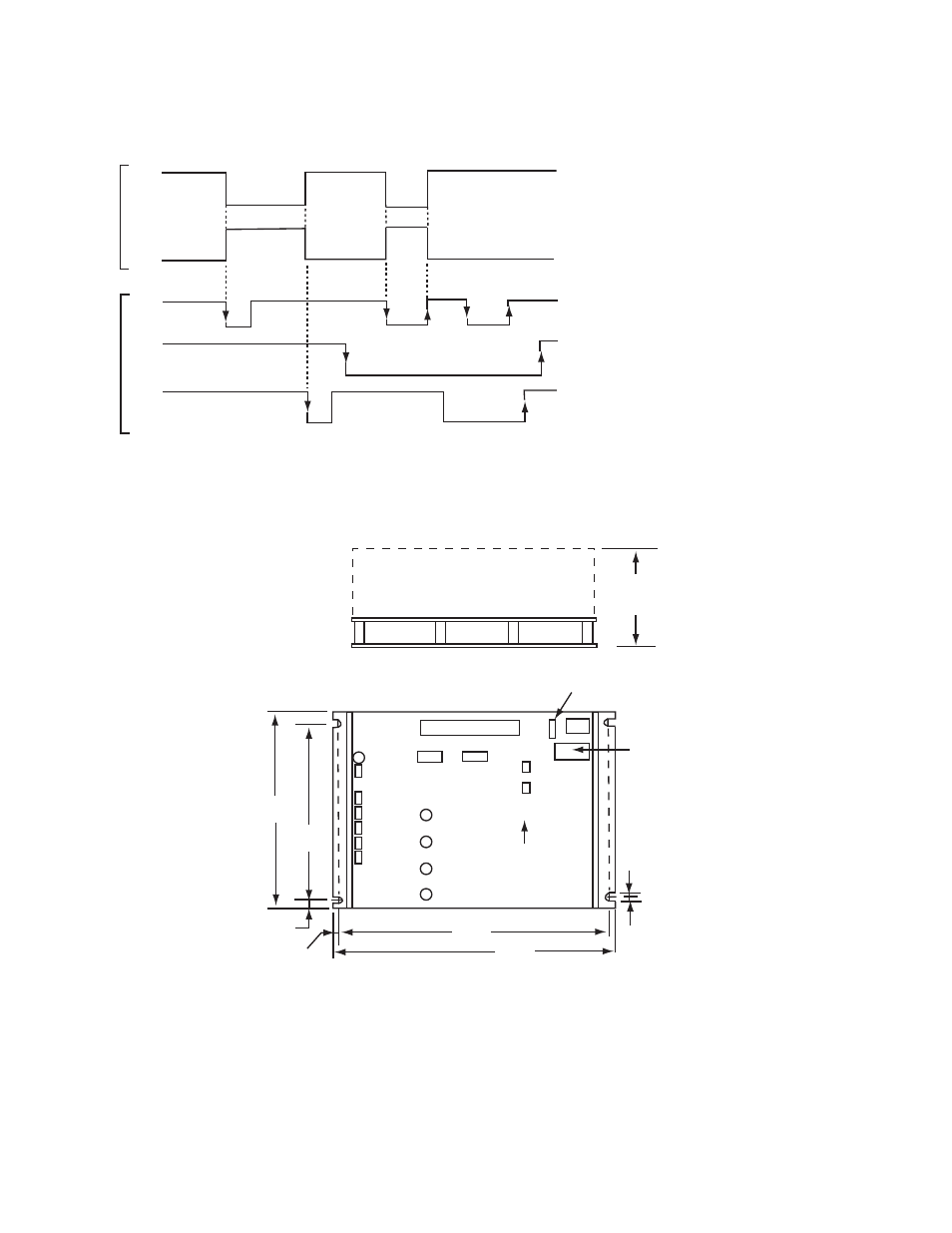

Figure 7 - Input - Output Switching Relationships With Logic Board 6040-448-017
Figure 8 - Dimensional Outline and Adjustment Location
