Vestil WP - Manual (Page 7)

03/10/03 rev. 3/5/2014 WP manual, operation instructions.doc
7 of 16
Copyright 2010 Vestil Manufacturing Corp.
Model
A: Vertical center
of gravity in
inches (~cm)
B: Horizontal
center of gravity
in inches (~cm)
Model
A: Vertical center
of gravity in
inches (~cm)
B: Horizontal
center of gravity
in inches (~cm)
WP-3636 17.9 (45.5cm) 13.6 (34.5cm) WP-3636-DD 18.1 (46.0cm) 13.7 (34.8cm)
WP-3648 16.8 (42.7cm) 19.0 (48.3cm) WP-3648-DD 18.8 (47.8cm) 17.0 (43.2cm)
WP-4848 16.6 (42.2cm) 18.6 (47.2cm) WP-4848-DD 16.8 (42.7cm) 18.5 (47.0cm)
WP-4848-FF 16.6 (42.2cm) 18.6 (47.2cm) WP-4848-DD-FF 16.8 (42.7cm) 18.5 (47.0cm)
WP-3636-84B 23.5 (59.7cm) 12.3 (31.2cm) WP-3636-84B-DD 23.4 (59.4cm) 12.5 (31.8cm)
WP-3648-84B 21.9 (55.6cm) 17.4 (44.2cm) WP-3648-84B-DD 21.9 (55.6cm) 17.3 (43.9cm)
WP-4848-84B 22.0 (55.9cm) 17.0 (43.2cm) WP-4848-84B-DD 21.9 (55.6cm) 17.0 (43.2cm)
SP-175 11.4 (28.9cm) 16.8 (42.5cm) WP-3737-FD 16.5 (41.9cm) 18.0 (45.7cm)
WP-series
center of gravity
(C.O.G.)
Mast
guard
If the mast
guard is improperly fastened, it
cannot adequately protect
platform occupants. Therefore,
make sure that hinge fasteners
(circled in the drawings) are
tightened to 35ft·lb of torque.
Retighten the connection to 35
ft·lb whenever:
1. The work platform is taken
out of storage:
 Raise the upper portion of
the mast guard, and then

Tighten the bolts and nuts.
2. If the mast guard is bumped
or deflected from vertical.
 Immediately lower the
platform to the ground; then

Straighten the mast guard
(return it to the vertical
orientation) and retighten the
bolts and nuts.
Close-up of connection between top
and bottom portions of mast guard.
Upper mast guard
Lanyard attachment points
Vertical center of gravity (A)
calculated from bottom of
platform floor

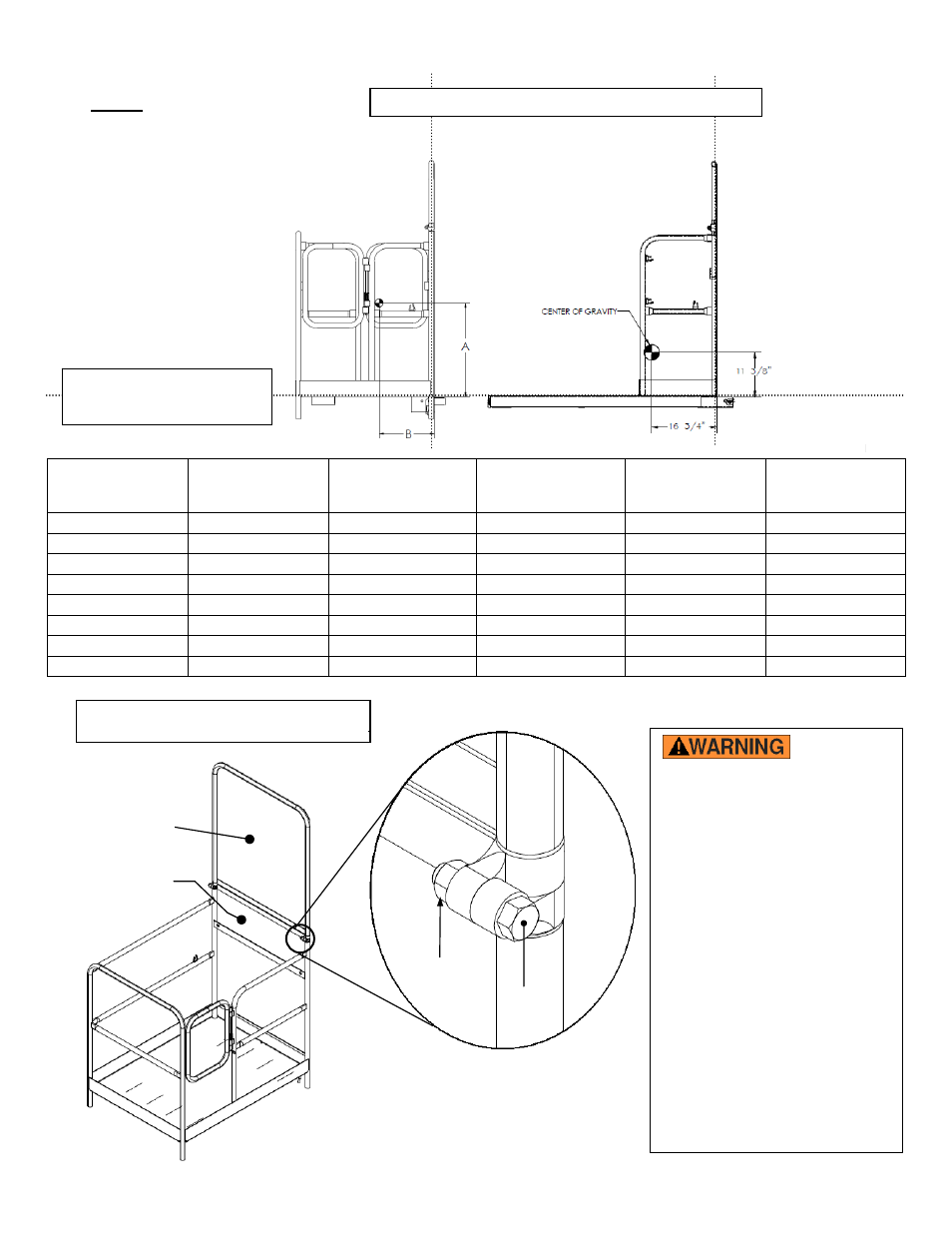

FIG. 3: Center of Gravity
Diagram
Horizontal center of gravity (B) measured from back of mast guard
Lower mast guard
Fig. 4: Mast Guard Hinge
Hex nut
Bolt
