Vestil WP - Manual (Page 6)

03/10/03 rev. 3/5/2014 WP manual, operation instructions.doc
6 of 16
Copyright 2010 Vestil Manufacturing Corp.
Item
No.
Description Part No. Quantity
1
Upper mast guard weldment
WP-3636 models:
Standard mast guard
48in. (Cal-OSHA) upper mast guard
WP-3648 models:
Standard mast guard
48in. (Cal-OSHA) guard
WP-4848 models:
Standard mast guard
48in. (Cal-OSHA) guard
14-514-125
14-514-128
14-514-125
14-514-128
14-514-126
14-514-129
1
2
½” – 13 x 1-1/4” zinc-plated HHCS
bolt
11207
2
3 ½” – 13 nylock nut 37030 2
4 Hinged gate weldment 14-514-093 1
5 #11 hitch pin 45286 1
6 ½” x 2” hex head bolt 10211 2
7 ½” – 13 UNC hex nut 36109 2
8 7/16” x 14” round head pin 14-112-009 1
9 9/16” x 2-1/4” spring 14-146-002 1
10 WP tine lock assembly 14-537-007 1
Nylon safety strap 08-145-028 1
Complete tine lock assembly 14-537-007 1
7
6
4
10
8
9
5
3
2

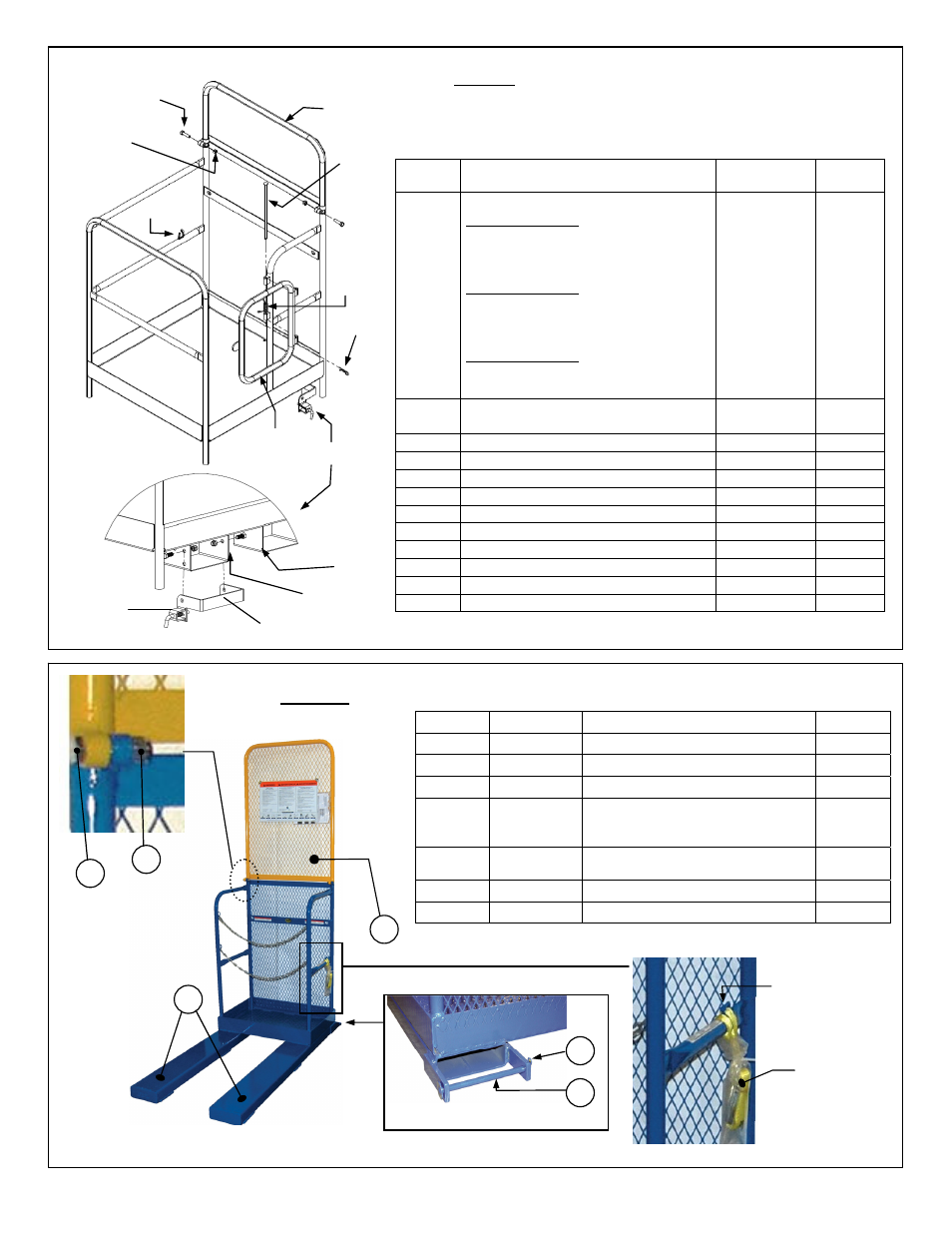

FIG. 1: WP-series Diagram & Parts List
Close-up of tine lock assembly
Item no. Part no. Description Quantity
1 14-112-001 5/8in. x 9-1/2in. pin 2
2 45286 1/8in. x 2-5/8in. (#11) hitch pin clip 2
3 37-028-014 Fork tubes 2
4 14-514-127
14-514-130
Upper mast guard (standard);
OR
Upper mast guard (Cal-OSHA) 1
5 1/4in. cold
shut
Cold shut (clips for entryway
chains 4
6 10211 ½ in. x 2in. hex head bolt 2
7 36109 ½ in. – 13 UNC hex head nut 2
1
3
4
6
7
FIG. 2: SP-175 series Diagram & Parts List
1 [Upper
mast guard]
Cold shut
2
Cold shut (secures
the nylon safety
strap to midrail)
Nylon strap
NOTE: Cold shut is used to secure the nylon safety strap to the midrail.
Tine bracket
Bracket
locking
spring pin
