To order replacement parts:
Vestil uses only quality parts to make the equipment we manufacture. Vestil bears no responsibility for problems that
result as a consequence of using unapproved replacement parts. To order replacement or spare parts for this
equipment, contact the factory.

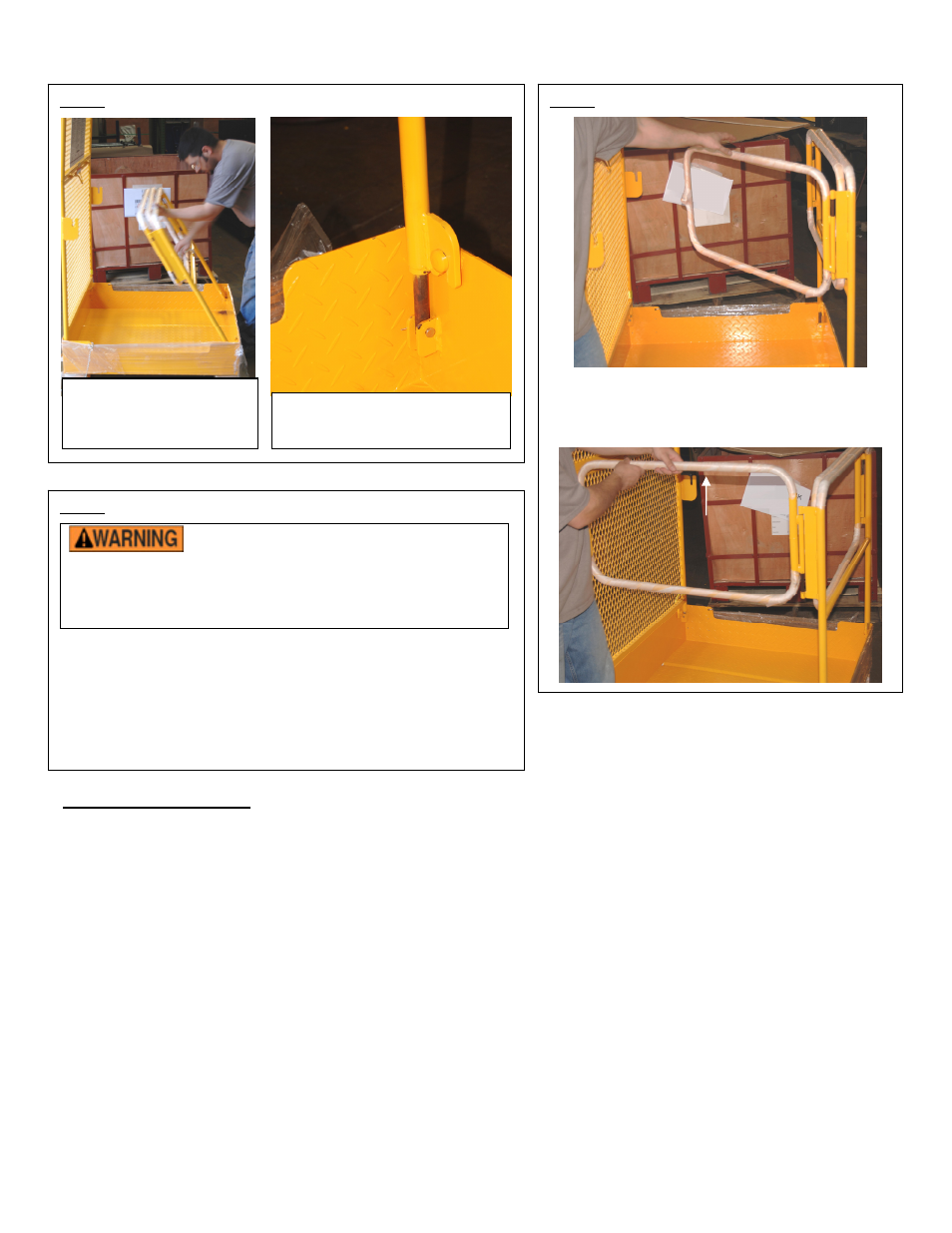

Step 3: Raise the front guard rail.

Pivot the rail assembly
toward the front of the
platform.

Secure the assembly in place
with the pegs and slots.

Step 4: Close and latch the gates.

Lift the gate to allow the peg welded to the free
end can fit into the corresponding locking slot
welded onto the mast guard.

Step 5: Secure the platform to the tines of the fork lift.

The nylon strap is an essential safety-

enhancing feature designed to connect the work platform to
the carriage of a fork lift. Improperly connecting the nylon
safety strap to either the platform or the fork lift might
eliminate the safety benefit.

a.) Drive the fork lift tines into the fork pockets on the underside
of the platform; then secure the platform to the fork lift with the
tine lock (see Step 1 and FIG. 5A & 5B on p. 9).

b.) As delivered to you--the end-user--the strap is connected to
the base of the mast guard (see “Safety strap connection
diagram” on p. 9).
