Vestil S-xxx-FF User Manual
Page 42
42
Model: S-62-AA/FF/FA

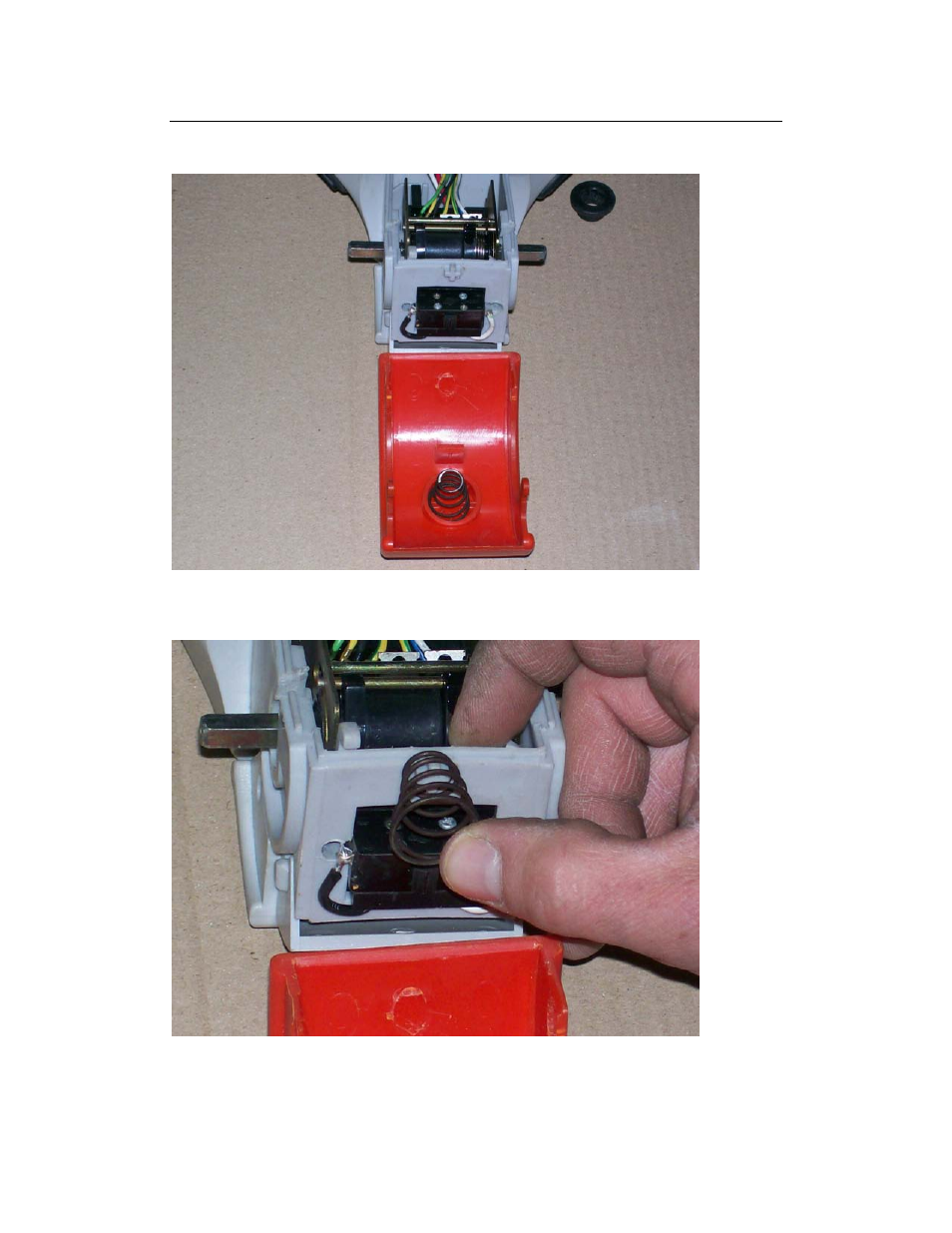

This should expose a spring. This spring has a specific orientation. When assembled the spring
sets in the red cup on the inside of the red belly cover. Fig 16
The other side of the spring fits over the gray plastic nub above the switch. Fig 17
Filename: Belly Switch trouble shoot
