Vestil S-xxx-FF - Manual (Page 13)

13

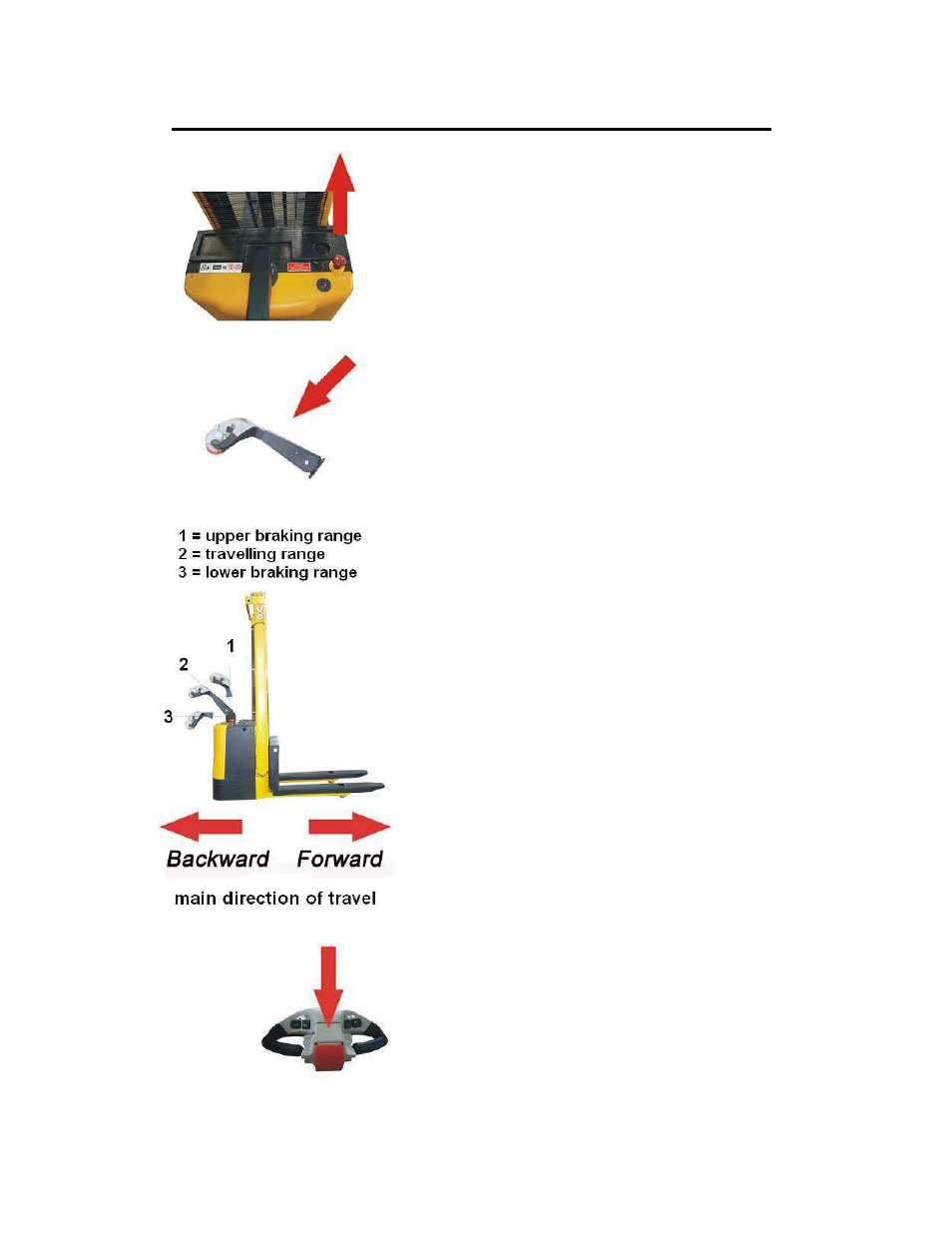

Operation
Driving
Pull up the red push button of the E-switch
Tilt the Control handle to driving position, the
locking brake is released
If you release Control handle, this returns to the
vertical start position, the truck brakes and the
locking brake activates
The truck is steered via the Control handle
Brake:
This stacker is equipped with a magnetic brake
that is applied between 10-15 degrees of the
vertical position and between 85 -90 degrees of the
lower position in the vertical operating of the
handle. The brake can be operated at any point in
the lateral operating of the handle. When you
release your hand from the handle, it will resume
neutral position automatically, and will activate the
brake. Always make sure that the brake is in work
before operating the stacker. When parked, always
put the handle in the full vertical position with the
brake applied and forks lowered.
Horn:
A horn is located on top of the handle.
