Vestil SLG-6 & SLG-10 - Manual (Page 9)

Copyright 2012 Vestil Manufacturing Corp. Page 9 of 12

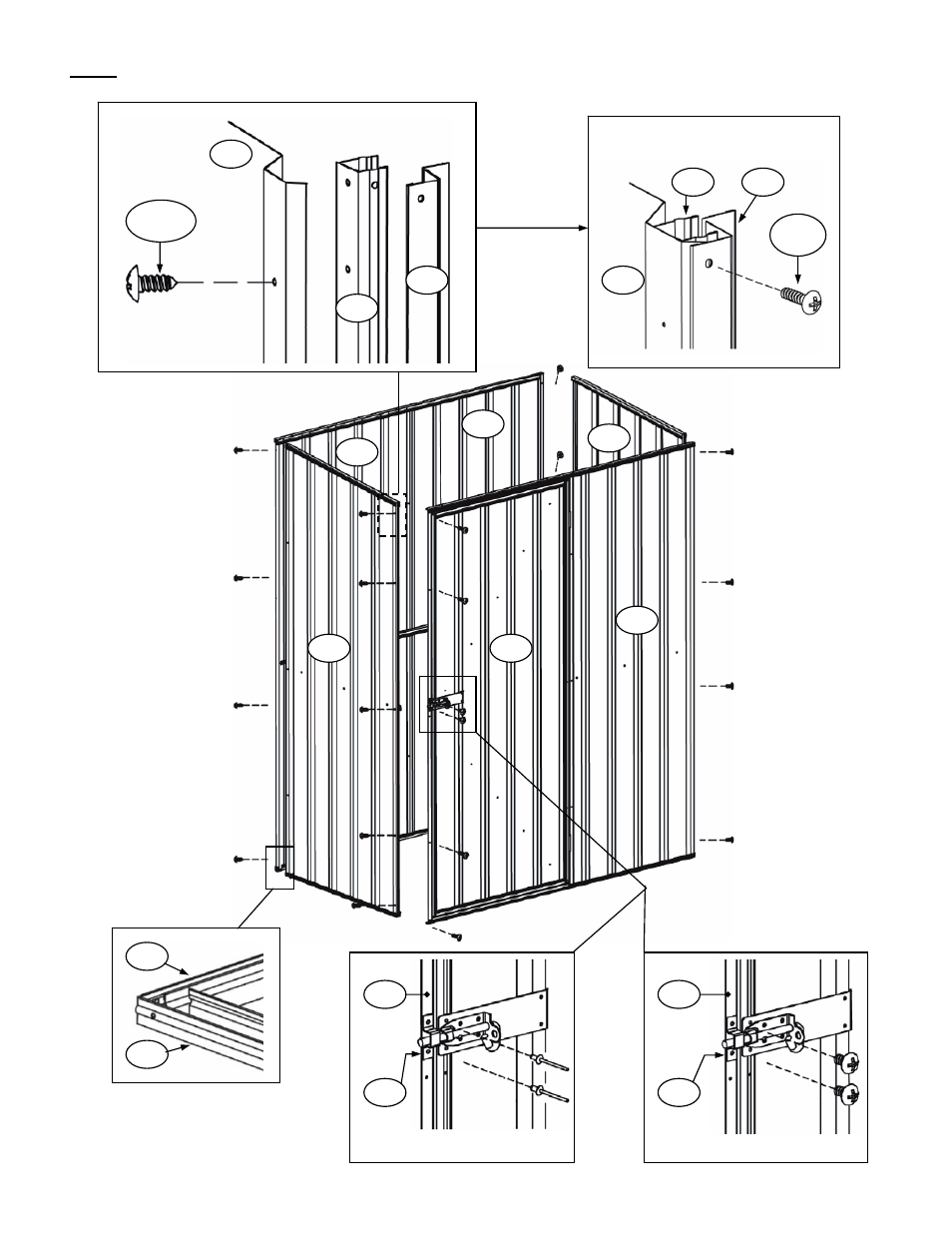

Step 8: Fasten the front, rear, and side panels together. First fasten the side walls to the rear wall with 10mm screws;
then fasten the front wall to the rest of the assembly with 10mm screws.
2R
4
10mm
screw
2L
22
41A
Clamp the side panel 2L between jamb
piece 41A and channel 22 by fastening 41A
and 22 with six 16mm screws.
16mm
screw
2L
1R
1L
5R
21B
20C
Fasten door latch keeper with 3mm x
10mm rivets
Fasten latch keeper to door jamb with
10mm screws
-OR-
This symbol represents
a 10mm self-tapping
screw. Install a screw at
each location where this
symbol appears.
41A 22
2L
41A 41A
71 71
