WP-series
center of gravity
(C.O.G.)
Mast
guard
Lanyard attachment points
Vertical center of
gravity (A) calculated
from bottom of platform
floor

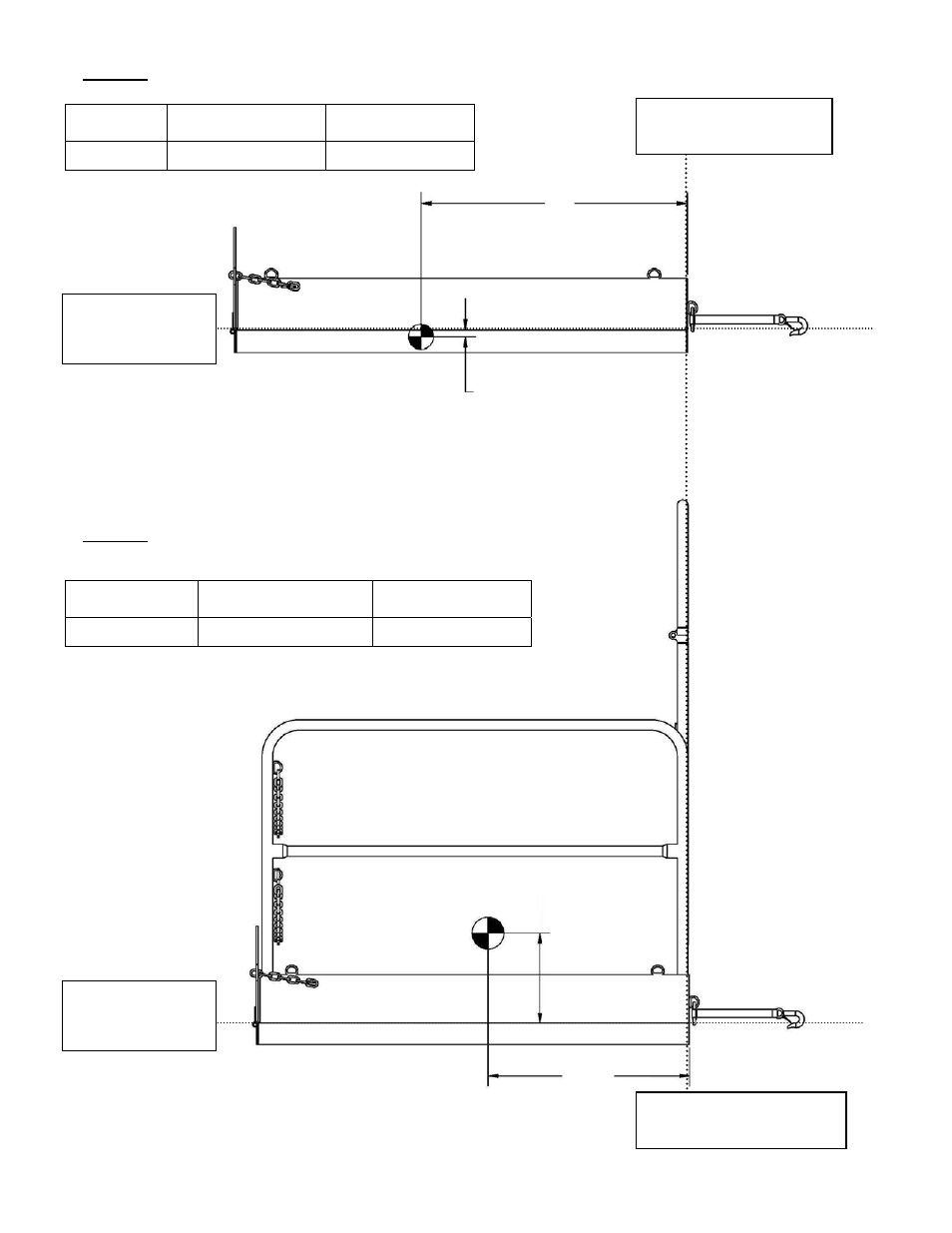

FIG. 2A: FTLP-5454 Center of Gravity Diagram
Model
A: Horizontal
Center of Gravity B: Vertical Center
of Gravity Horizontal center of gravity (B)
measured from back of toe
guard
FTLP-5454 32in. (~81¼ cm) 0.8in. (~2cm)
Vertical center of
gravity (A) calculated
from bottom of platform
floor
A
B
A
FIG. 2B: FTLP-5454-HR Center of Gravity Diagram
Model
A: Horizontal Center
of Gravity B: Vertical Center
of Gravity
FTLP-5454-HR 25.3in. (~64.3cm) 11.3in. (~28.7cm)
B
Horizontal center of gravity (B)
measured from back of mast
guard
p. 5 of 8
